1. Product introduction
2 1.1 HRV (Heat Recovery Ventilation)
1
1.1
1. Product introduction
1.1HRV (Heat Recovery Ventilation)
Background
To maintain the comfortable environment in a building, the fresh air intake is essential the same as an appropriate room
temperature control.
The heating / cooling efficiency of conventional standard ventilating systems drops during cooling / heating operation and it is
waste of energy.
The Heat Recovery Ventilation was developed to solve those problems.
What is HRV (Heat Recovery Ventilation) ?
HRV is a system which recovers the thermal energy of exhaust air and reuses it for heating or cooling of supply air.
It exchanges heat between the exhaust and the supply air.
Daikin’s HRV
Daikin’s HRV greatly reduces the total power consumption by operation interlocked with air conditioner such as VRV or SkyAir.
The total heat exchange mode and the ventilation mode can be automatically selected by setting to the automatic
ventilation mode
Main Features
1. Interlocked operation with VRV (SkyAir)
2. Automatic ventilation mode changeover
3. Energy Saving
4. FRESH-UP operation
5. Downsized compared with EJ Series
6. Quiet operation
7. Easy installation
8. Easy maintenance
9. Wide variety of optional accessories

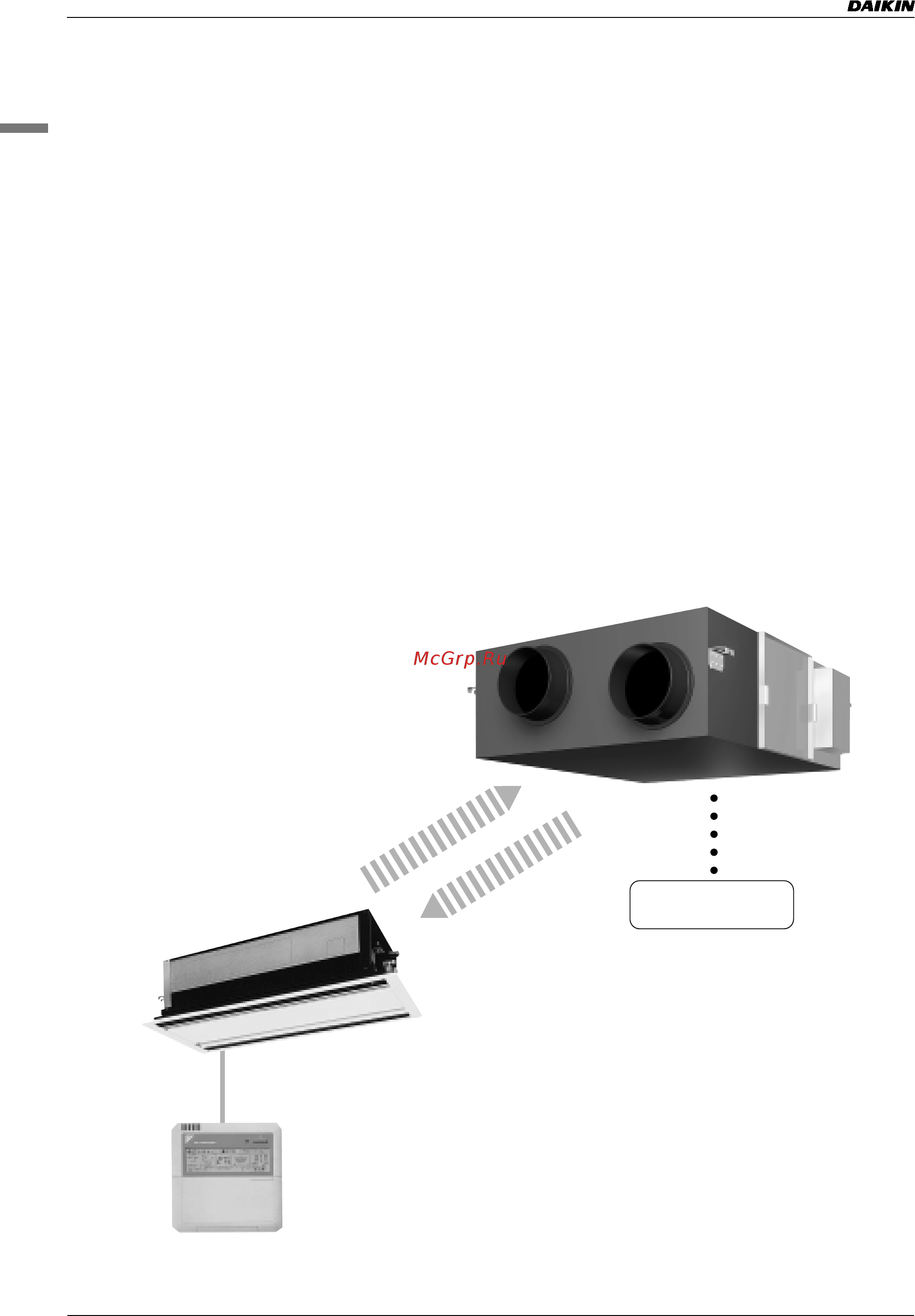

(HC0002)
Needs no dedicated
remote control
VRV or SkyAir
indoor unit
ON / OFF signal
Cooling / Heating mode signal
Setting temperature signal
Ventilation mode signal
Remote Control
Operation mode signal
Filter cleaning signal
Alarm signal
HRV
