1. Product introduction
1.3 Features 7
1
1.3

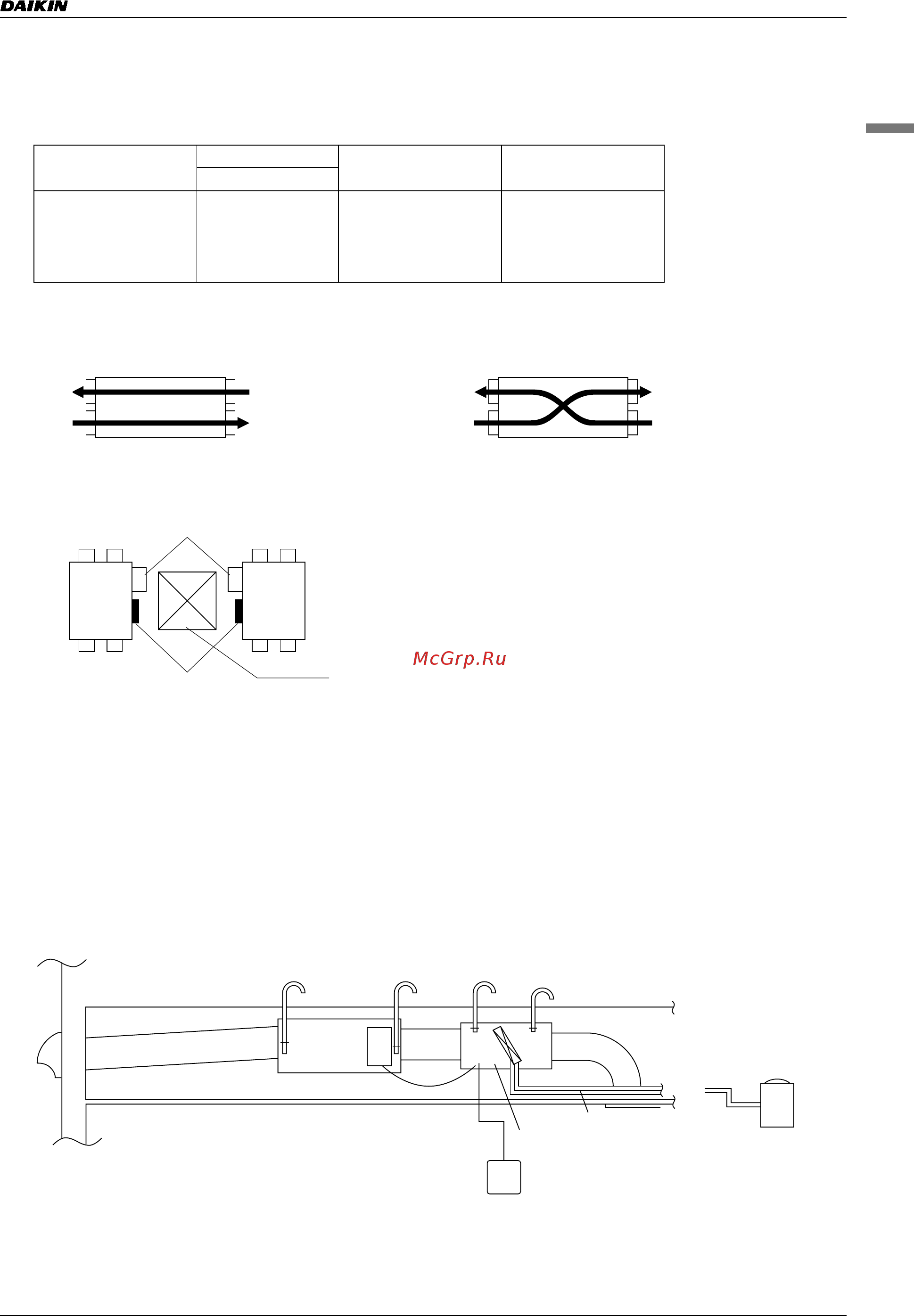

1.3.5 Easy Installation and service maintenance
Downsized
Total volume is reduced to 68% of EJ series and the unit fits into a small space.
Parallel air flow system (Daikin) Cross air flow system
This system prevents misconnection and
simplify the installation work.
Service Maintenance
Upside-down installation is available.
It allows the common use of the access door and reduces the space and installation work.
For 2 units closely installed, only one inspection hole of 450
×
450 mm will do for maintenance or replacement of the heat
exchanger element etc.
Long life filter is equipped.
1.3.6 Additional Optional accessories compared with EJ Series
Built-in optional high efficiency filter
It greatly reduces the installation space.
The installation of access doors and the unit can be reduced.
Direct expansion coil
The direct expansion coil helps to recover approx. 100% of exhaust air heat and prevents unpleasant draft. It can also operate as
an air conditioner.
Connectable unit: VRV and HRV.
BRP4A50
Refer to 6.16 Heater control kit (page 145) for the detail.
(Comparison with FJ and previous EJ series)
Model name
Height
Height Difference
(mm)
Volume compared with
EJ series
FJ EJ
VAM 500FAVE
285
←
310
–25 68%
VAM 800FA5VE
348
←
388
–40 70%
VAM1000FA5VE
348
←
388
–40 78%
VAM2000FA5VE
710
←
790
–80 82%
(HC0234) (HC0235)
SA
RA
EA
OA
SA
RA
EA
OA
(HC0235)
Switch Box
Maintenance cover
Access door
(HC0237)
HRV
unit
Direct expansion coil unit outdoor unit
Indoor unit
remote controller
Drain
