1. Product introduction
1.2 Structure 3
1
1.2

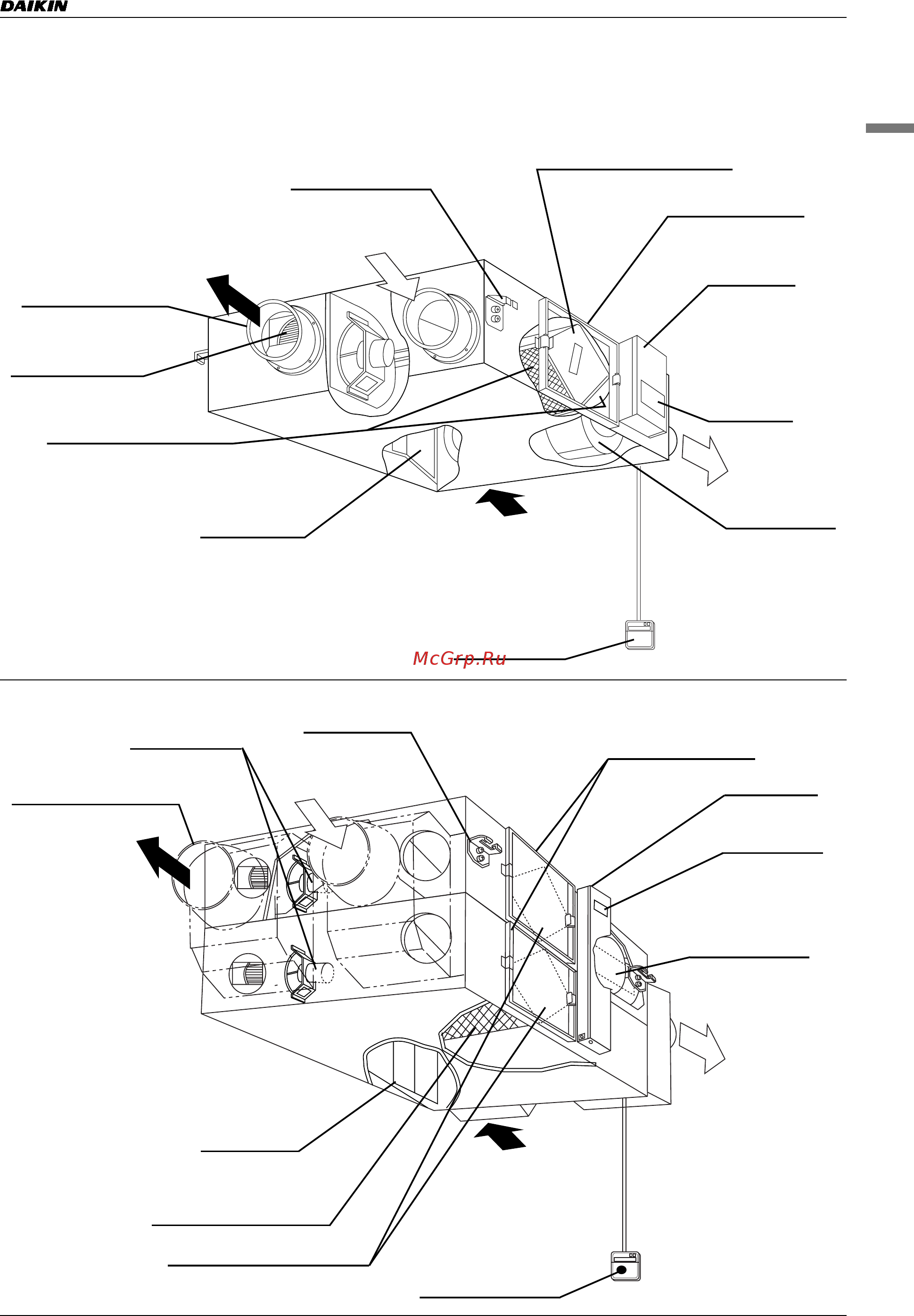

1.2 Structure
VAM150,250,350,500,650FAVE
VAM800,1000FA5VE
VAM1500,2000FA5VE
(HC0238)
Ceiling hock
Duct connection flange
Damper
Exhaust fan
Air filter (Long life filter)
Maintenance cover
Switch box
Name plate
SA
(Supply air)
[Feed air to room]
Air supply fan
RA
(Return air)
[Exhaust air from room]
Remote controller
(Optional accessories)
OA
(Outdoor air)
[Fresh air from outdoor]
EA
(Exhaust air)
[Exhaust air to outdoor]
Heat exchange elements
(HC0016)
Maintenance cover
Ceiling hock
Exhaust fan
OA
(Outdoor air)
[Fresh air from outdoor]
Duct connection flange
EA
(Exhaust air)
[Exhaust air to outdoor]
Damper
Air filter (Long life filter)
Heat exchange elements
Switch box
Name plate
Air supply fan
SA
(Supply air)
[Feed air to room]
RA
(Return air)
[Exhaust air from room]
Remote controller
(Optional accessories)
