Grundig GEZM 47000 B [76/80] Removing the door inner giass

Содержание

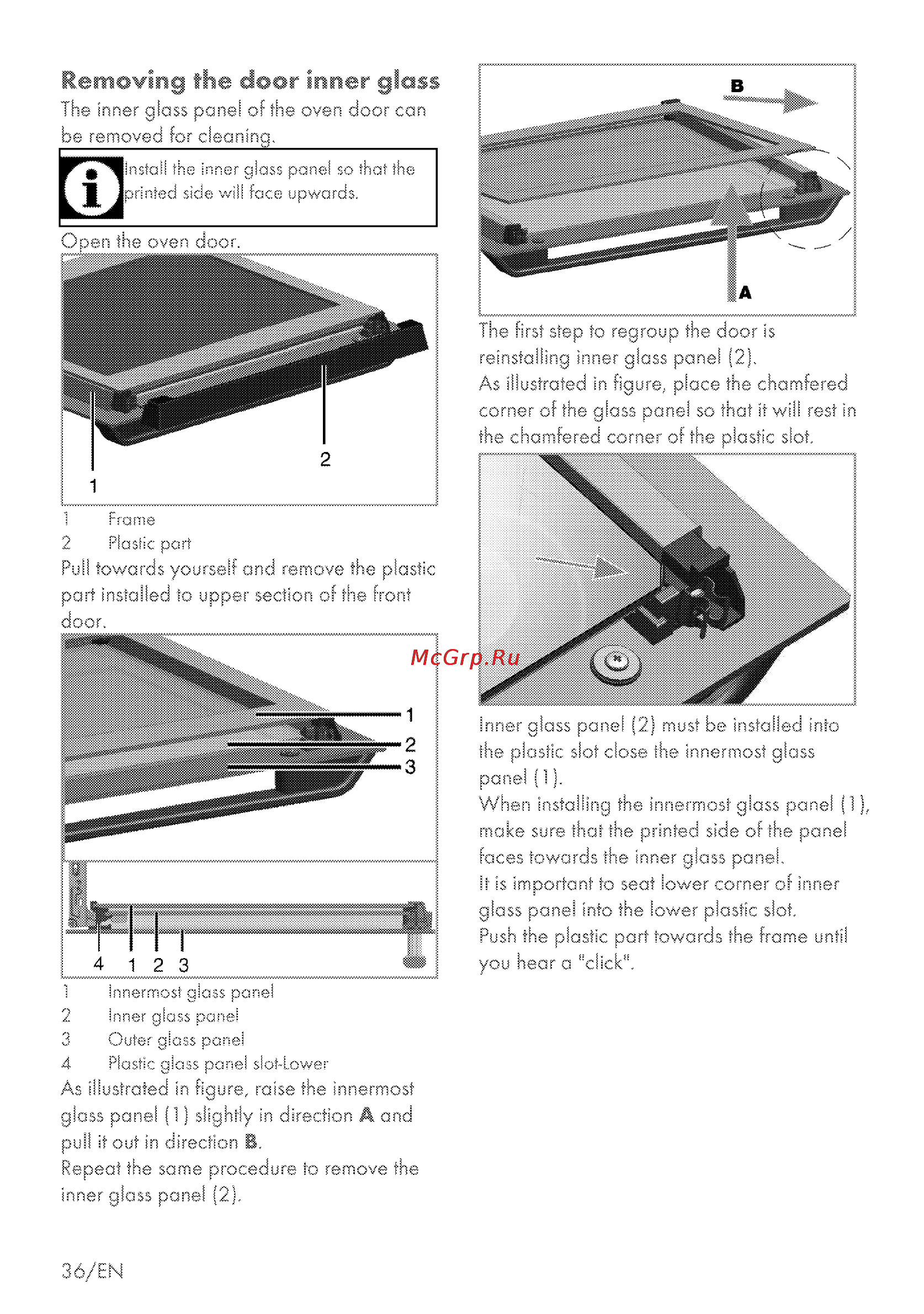

Removing the door inner giass The inner glass panel of the oven door can be removed for cleaning E install the inner glass panel so that the printed side will face upwards The first step to regroup the door is reinstalling inner glass panel 2 As illustrated in figure place the chamfered corner of the glass panel so that it will rest in the chamfered corner of the plastic slot 1 Frame 2 Plastic part PuH towards yourself and remove the plastic 14 12 3 1 2 3 4 Innermost glass panel Inner glass panel Outer glass panel Plastic glass panel slot Lower As illustrated in figure raise the innermost glass panel 1 slightly in direction A and pull if out in direction B Repeat the same procedure to remove the inner glass panel 2 36 EN Inner glass panel 2 must be installed into the plastic slot dose the innermost glass panel i When installing the innermost glass panel 1 make sure that the printed side of the panel faces towards the inner glass panel h is important to seat lower corner of inner glass panel into the lower plastic slot Push the plastic part towards the frame until you hear a iEdick t
