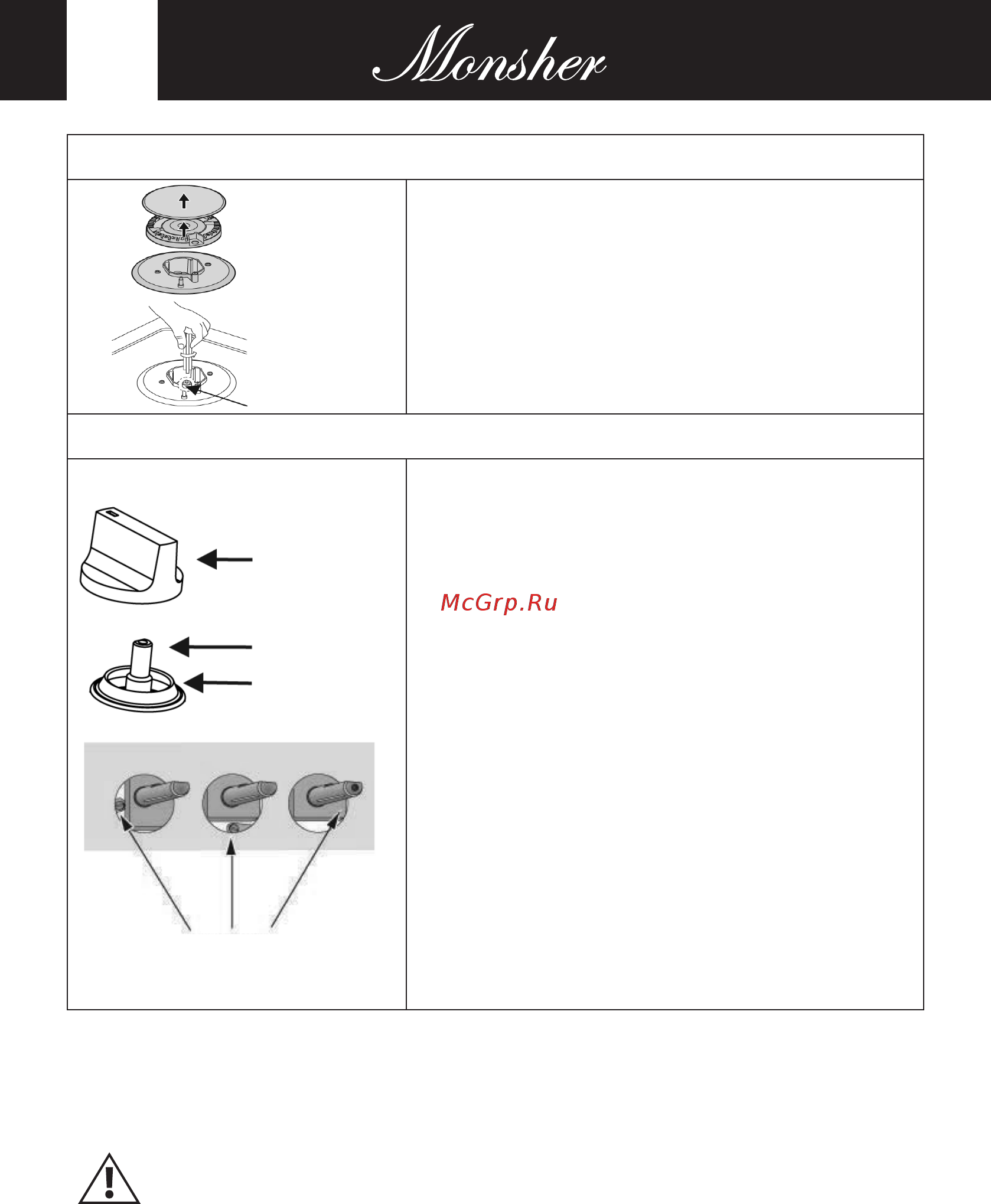

CHANGE THE INJECTOR OF THE BURNERS

Remove the pan support, Burner lid and Flame

spreader.

Unscrew the injector using a 7 mm box spanner

and replace it with the stipulated injector for new

gas supply. Carefully reassemble the all compo-

nents. After injectors are replaced, it is advisable

to strongly tighten the injector in place.

ADJUSTMENT OF MINIMUM LEVEL OF THE FLAME

1.Turn the taps down to minimum.

2.Remove the knob from the tap and place a

small bladed screwdriver in the centre of the tap

shaft.

3.The correct adjustment is obtained when the

flame has a length of about 3–4 mm.

— For butane / propane gas, the adjusting screw

must

— be tightly screwed in.

— Refit the control knob.

Make sure that the flame does not go out by

quickly turning from maximum flow to minimum

flow. If it does then remove the control knob and

make further adjustments to the gas flow, testing

it again once the adjustment has been made.

4.Repeat this process for each one of the gas

taps.

�Do not dismantle the tap shafe: in the event of a malfunction, change

the whole tap.

�Before placing the burners back on the top lace, make sure that the

injector Is not blocked.

�A full operational test and a test for possible leakages must be carried

Out after gas conversion. (such as soap water or gas detector).

�After completing conversion, a qualified technician or installer has

to mark “V” on the right gas category to match with the setting in rating

plate. Remove the previous setting “V” mark.

Injector

Control

handle

Tap

Sealing ring

Adjustment

screw
