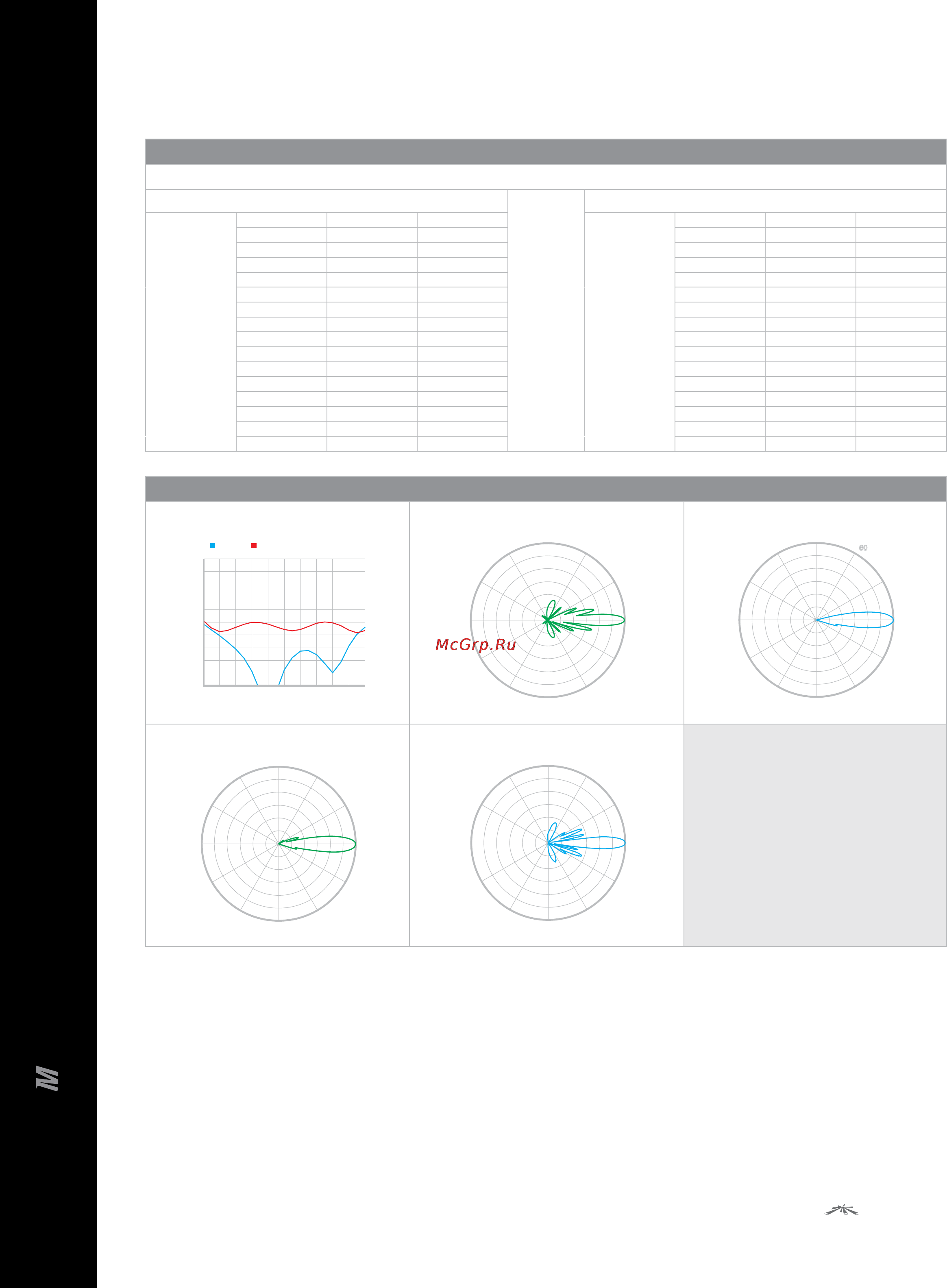

NanoBridge M5-25 - Antenna Information
90
-90
120
-120
150
-150
180
60
-60
30
-30
0
-15
-5 dB
-15
-5 dB
-15
-5 dB
-15
-5 dB
Vertical AzimuthReturn Loss
Horizontal Elevation
90
-90
120
-120
150
-150
180
60
-60
30
-30
0
Horizontal Azimuth
-24 -18 -12 -6
5.1 5.3 5.5 5.7
dB
GHz
V-pol
H-pol
90
-90
120
-120
150
-150
180
-60
30
-30
0
Vertical Elevation
90
-90
120
-120
150
-150
180
60
-60
30
-30
0
10
Ubiquiti Networks, Inc. Copyright © 2011, All Rights Reserved www.ubnt.com
Specifications (cont.)
NanoBridge M5-25 - Operating Frequency 5470-5825 MHz*
AirMax
OUTPUT POWER: 25 dBm
TX POWER SPECIFICATIONS
MCS0 25 dBm +/- 2 dB
MCS1 25 dBm +/- 2 dB
MCS2 25 dBm +/- 2 dB
MCS3 25 dBm +/- 2 dB
MCS4 24 dBm +/- 2 dB
MCS5 23 dBm +/- 2 dB
MCS6 22 dBm +/- 2 dB
MCS7 20 dBm +/- 2 dB
MCS8 25 dBm +/- 2 dB
MCS9 25 dBm +/- 2 dB
MCS10 25 dBm +/- 2 dB
MCS11 25 dBm +/- 2 dB
MCS12 24 dBm +/- 2 dB
MCS13 23 dBm +/- 2 dB
MCS14 22 dBm +/- 2 dB
MCS15 20 dBm +/- 2 dB
AirMax
RX POWER SPECIFICATIONS
MCS0 -94 dBm +/- 2 dB
MCS1 -93 dBm +/- 2 dB
MCS2 -90 dBm +/- 2 dB
MCS3 -89 dBm +/- 2 dB
MCS4 -86 dBm +/- 2 dB
MCS5 -83 dBm +/- 2 dB
MCS6 -77 dBm +/- 2 dB
MCS7 -74 dBm +/- 2 dB
MCS8 -93 dBm +/- 2 dB
MCS9 -91 dBm +/- 2 dB
MCS10 -89 dBm +/- 2 dB
MCS11 -87 dBm +/- 2 dB
MCS12 -84 dBm +/- 2 dB
MCS13 -79 dBm +/- 2 dB
MCS14 -78 dBm +/- 2 dB
MCS15 -75 dBm +/- 2 dB
* Only 5745 - 5825 MHz is supported in the USA
