Ubiquiti’s revolutionary InnerFeed technol-
ogy integrates the entire radio system into
the feedhorn of an antenna. NanoBridge M
combines Ubiquiti’s Innerfeed and AirMax
(MIMO TDMA Protocol) technologies to
create a simple, yet extremely powerful and
robust wireless unit capable of 100+Mbps
real outdoor throughput and up to 30km+
range.
Complete antenna and radio system
integration provides revolutionary cost/
performance solutions to the Worldwide
Broadband Industry.
The low cost, hi-performance, and robust
“all-in-one” design of NanoBridge M make
it extremely versatile and ideal in several
different applications (see diagrams on
right for some usage examples).
InnerFeed Antenna Technology
02
Ubiquiti Networks, Inc. Copyright © 2011, All Rights Reserved www.ubnt.com
Overview
Unlike standard WiFi protocol, Ubiquiti's
Time Division Multiple Access (TDMA)
AirMax protocol allows each client to send
& receive data using pre-designated time
slots scheduled by an intelligent AP
controller.
This "time slot" method eliminates hidden
node collisions & maximizes air time
efficiency. It provides many magnitudes of
performance improvements in latency,
throughput, & scalability compared to all
other outdoor systems in its class.
Intelligent QoS Priority is given to
voice/video for seamless access.
Scalability High capacity and scalability.
Long Distance Capable of high speed
Carrier Class links
Latency Multiple features dramatically
reduce noise.
Integrated AirMax Technology
Time Channel
Time Slot 1
Time Slot 2 Time Slot 3 Time Slot 4
Frame
Time Slot 4
Packet Prioritization
VOIP
VOIP
VOIP
VOIP
DATA
AirMax Clients (up to 300 clients can be connected per AirMax
BaseStation, 4 clients are shown to show general concept)
AirMax BaseStation

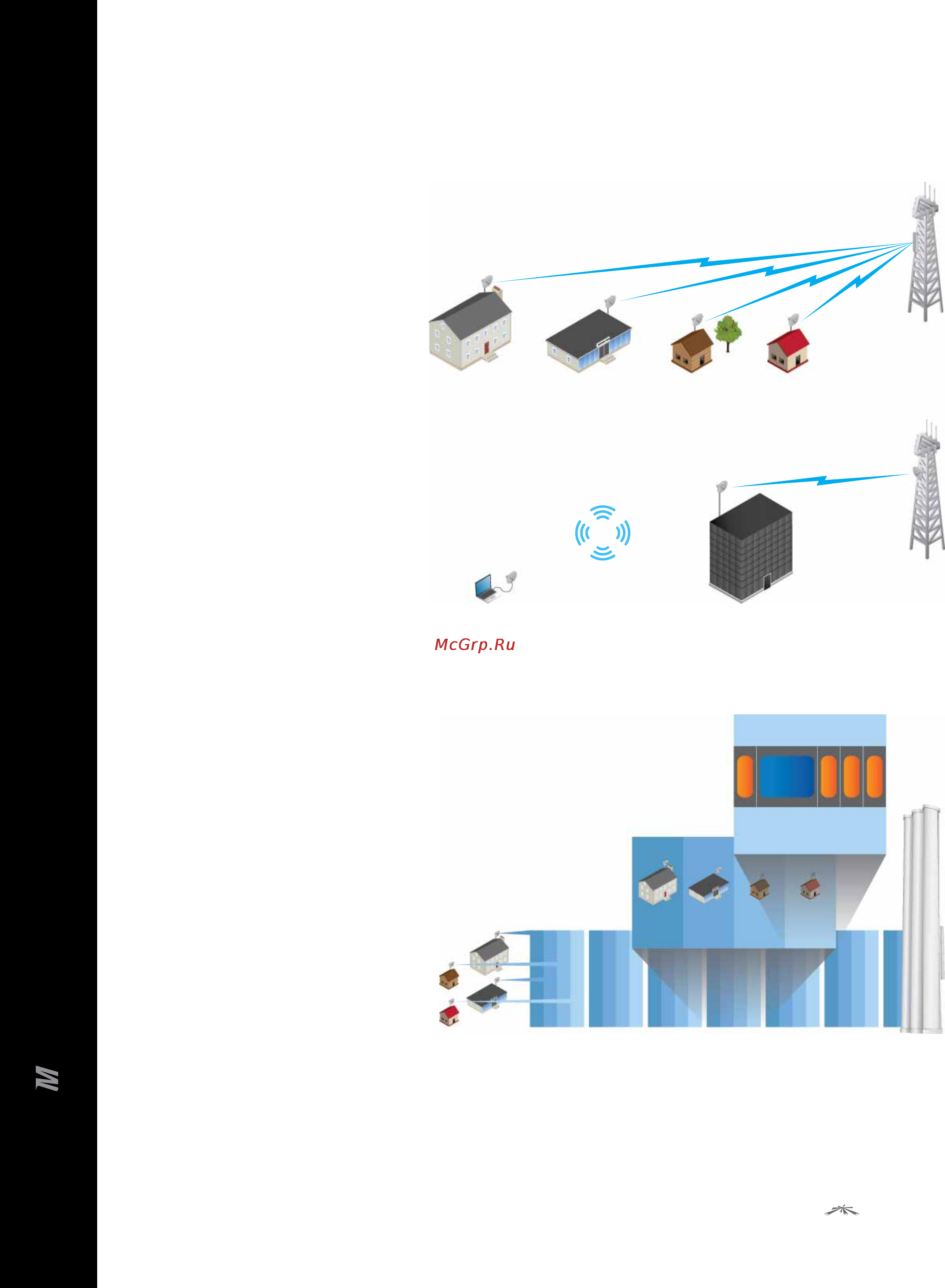

Usage Examples
NanoBridge M as powerful clients in an AirMax
PTMP (point to multi-point) network setup.
Using two NanoBridge M to create a powerful,
long range, PTP (point to point) link.
NanoBridge M as a powerful wireless client.
PTMP CLIENT LINKS
PTP LINK
Datasheet
|
NanoBridge
