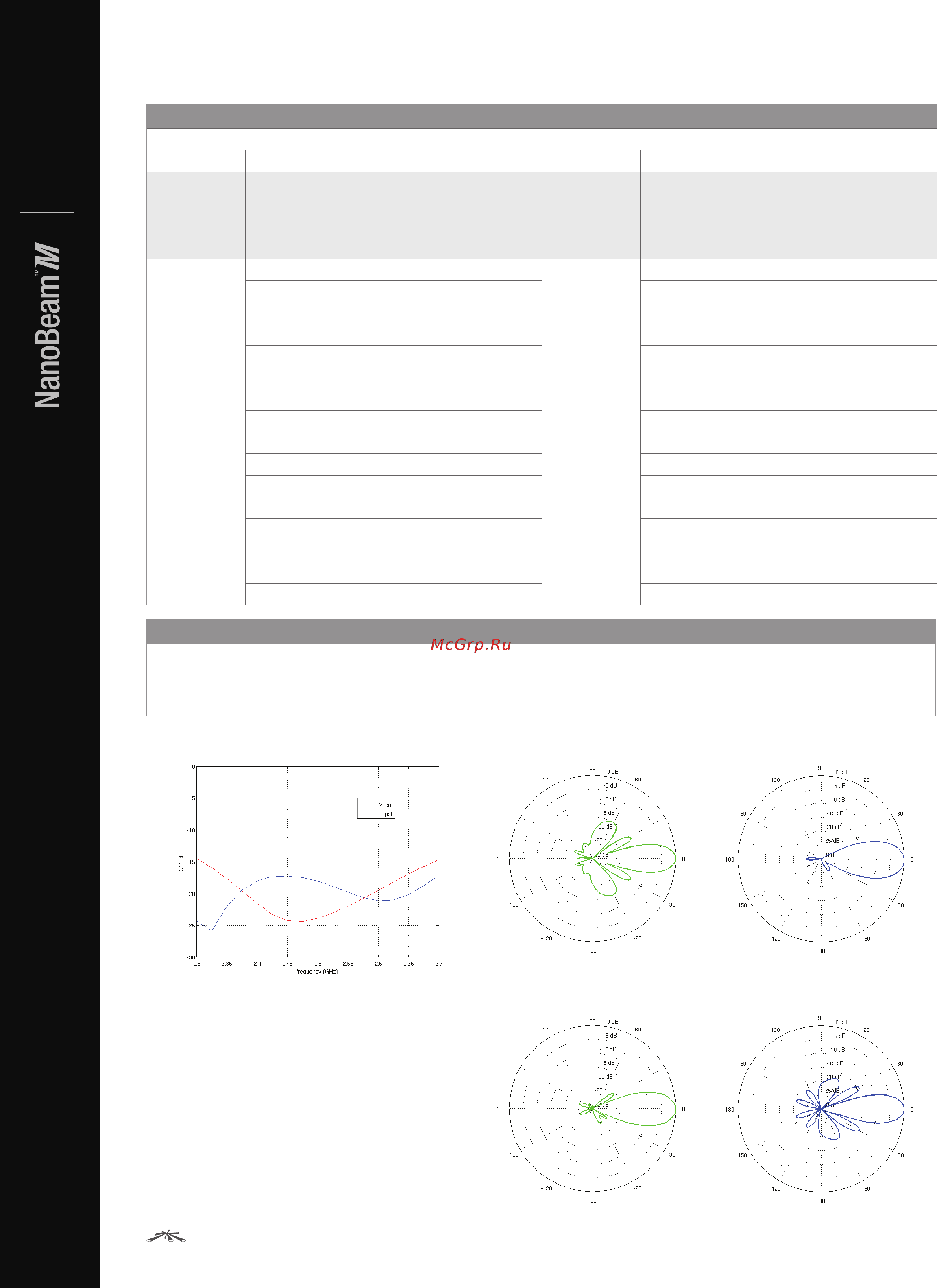

Ubiquiti NanoBeam NBE-M5-16 [12/15] Specifications

Datasheet

www.ubnt.com/airmax

Specications

NBE-M2-400 – Output Power: 28 dBm

2.4 GHz TX POWER SPECIFICATIONS 2.4 GHz RX POWER SPECIFICATIONS

Data Rate Avg. TX Tolerance Data Rate Sensitivity Tolerance

11g

1-24 Mbps 28 dBm ± 2 dB

11g

1-24 Mbps -97 dBm ± 2 dB

36 Mbps 26 dBm ± 2 dB 36 Mbps -80 dBm ± 2 dB

48 Mbps 25 dBm ± 2 dB 48 Mbps -77 dBm ± 2 dB

54 Mbps 24 dBm ± 2 dB 54 Mbps -75 dBm ± 2 dB

11n/airMAX

MCS0 28 dBm ± 2 dB

11n/airMAX

MCS0 -96 dBm ± 2 dB

MCS1 28 dBm ± 2 dB MCS1 -95 dBm ± 2 dB

MCS2 28 dBm ± 2 dB MCS2 -92 dBm ± 2 dB

MCS3 28 dBm ± 2 dB MCS3 -90 dBm ± 2 dB

MCS4 27 dBm ± 2 dB MCS4 -86 dBm ± 2 dB

MCS5 25 dBm ± 2 dB MCS5 -83 dBm ± 2 dB

MCS6 23 dBm ± 2 dB MCS6 -77 dBm ± 2 dB

MCS7 22 dBm ± 2 dB MCS7 -74 dBm ± 2 dB

MCS8 28 dBm ± 2 dB MCS8 -95 dBm ± 2 dB

MCS9 28 dBm ± 2 dB MCS9 -93 dBm ± 2 dB

MCS10 28 dBm ± 2 dB MCS10 -90 dBm ± 2 dB

MCS11 28 dBm ± 2 dB MCS11 -87 dBm ± 2 dB

MCS12 27 dBm ± 2 dB MCS12 -84 dBm ± 2 dB

MCS13 25 dBm ± 2 dB MCS13 -79 dBm ± 2 dB

MCS14 23 dBm ± 2 dB MCS14 -78 dBm ± 2 dB

MCS15 22 dBm ± 2 dB MCS15 -75 dBm ± 2 dB

NanoBeam NBE-M2-400 Antenna Information

Gain 18 dBi

Max. VSWR 1.5:1

Built-In Mechanical Downtilt +20° to -10°

Return Loss Vertical Azimuth Vertical Elevation

Horizontal Azimuth Horizontal Elevation
