Datasheet
2
www.ubnt.com/airmax

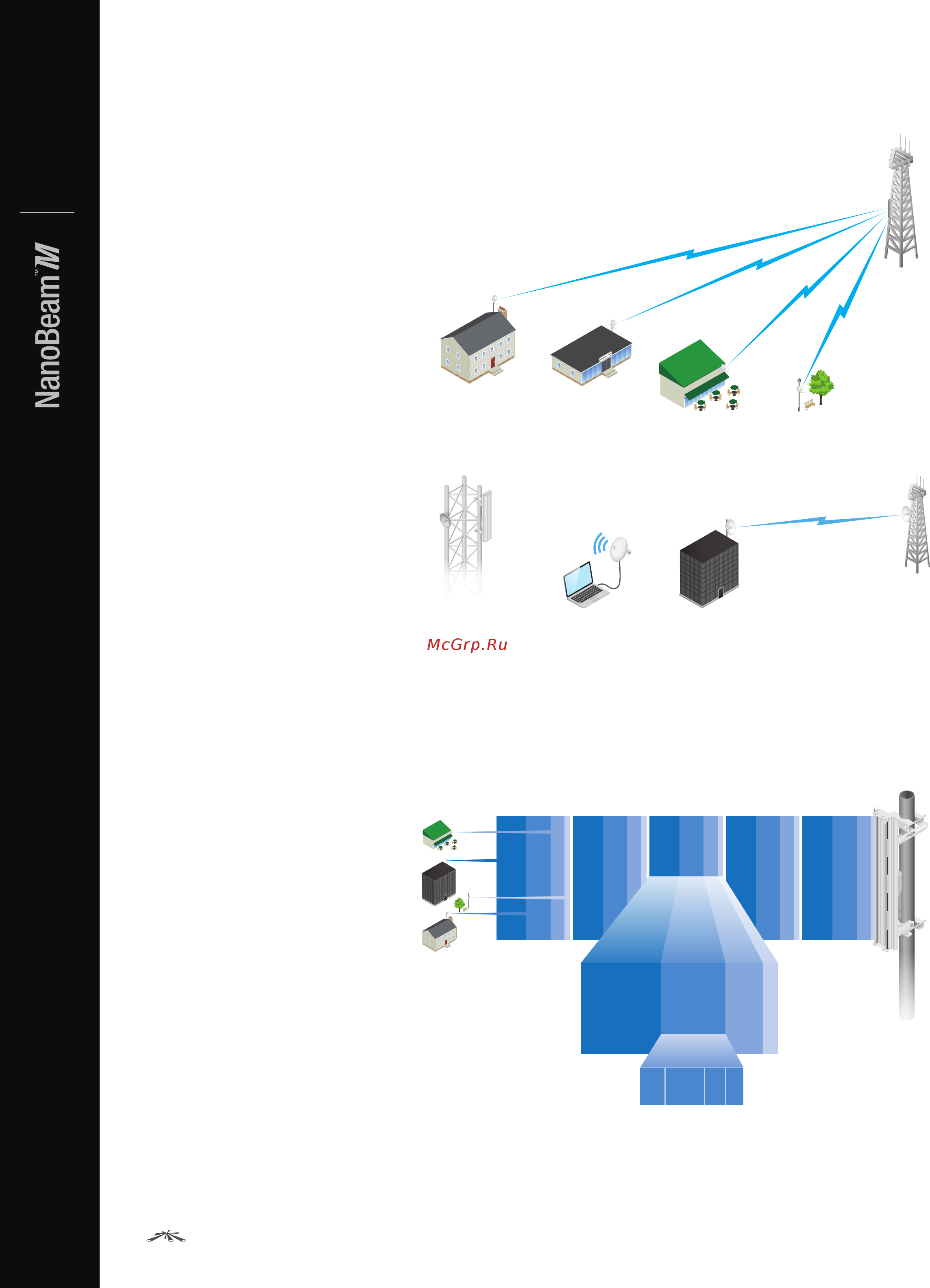

Application Examples
PtMP Client Links
The NanoBeam used as a CPE device for each client in an airMAX PtMP network.
Wireless Client
PtP Link
All-in-One Design The NanoBeam
as a powerful wirelessclient.
Dish Reector Design Use a NanoBeam
on each side of a PtP link.
Overview
Starting with the rst-generation
NanoBridge®, Ubiquiti Networks
™
pioneered the all-in-one design for an
airMAX® product functioning as a CPE
(Customer Premises Equipment). Now
Ubiquiti Networks launches the latest
generation of CPE, the NanoBeam
™
.
Improved Noise Immunity
The NanoBeam directs RF energy in a
tighter beamwidth. With the focus in
one direction, the NanoBeam blocks
or spatially lters out noise, so noise
immunity is improved. This feature
is especially important in an area
crowded with other RF signals of the
same or similar frequency.
Integrated Design
The NanoBeam models are available in
two form factors:
• All-in-One Design The Ubiquiti
Research and Development team
combined the radio and antenna to
create a more efcient and compact
CPE. The NanoBeam gets maximum
gain out of the smallest footprint.
• Dish Reector Design Ubiquiti’s
InnerFeed
™
technology integrates
the radio into the feedhorn of an
antenna, so there is no need for a
cable. This improves performance
because it eliminates cable losses.
Providing increased performance from
its faster processor and innovative
mechanical design at a low cost, the
NanoBeam is extremely versatile and
cost-effective to deploy.
Utilize airMAX Technology
Unlike standard Wi-Fi protocol,
Ubiquiti’s Time Division Multiple
Access (TDMA) airMAX protocol
allows each client to send and receive
data using pre-designated time
slots scheduled by an intelligent AP
controller.
This “time slot” method eliminates
hidden node collisions and
maximizes airtime efciency. It
provides signicant performance
improvements in latency, throughput,
and scalability compared to all other
outdoor systems in its class.
Intelligent QoS Priority is given to
voice/video for seamless streaming.
Scalability High capacity and
scalability.
Long Distance Capable of
high-speed, carrier-class links.
airMAX TDMA Technology
Time Slot 1
Time Slot 2
Time Slot 3
Time Slot 4
Wireless Channel
Time Slots
Packet Prioritization
VOIP
Data
VOIP
VOIP
Up to 100 airMAX stations can be connected to an airMAX Sector; four airMAX
stations are shown to illustrate the general concept.
