2 3

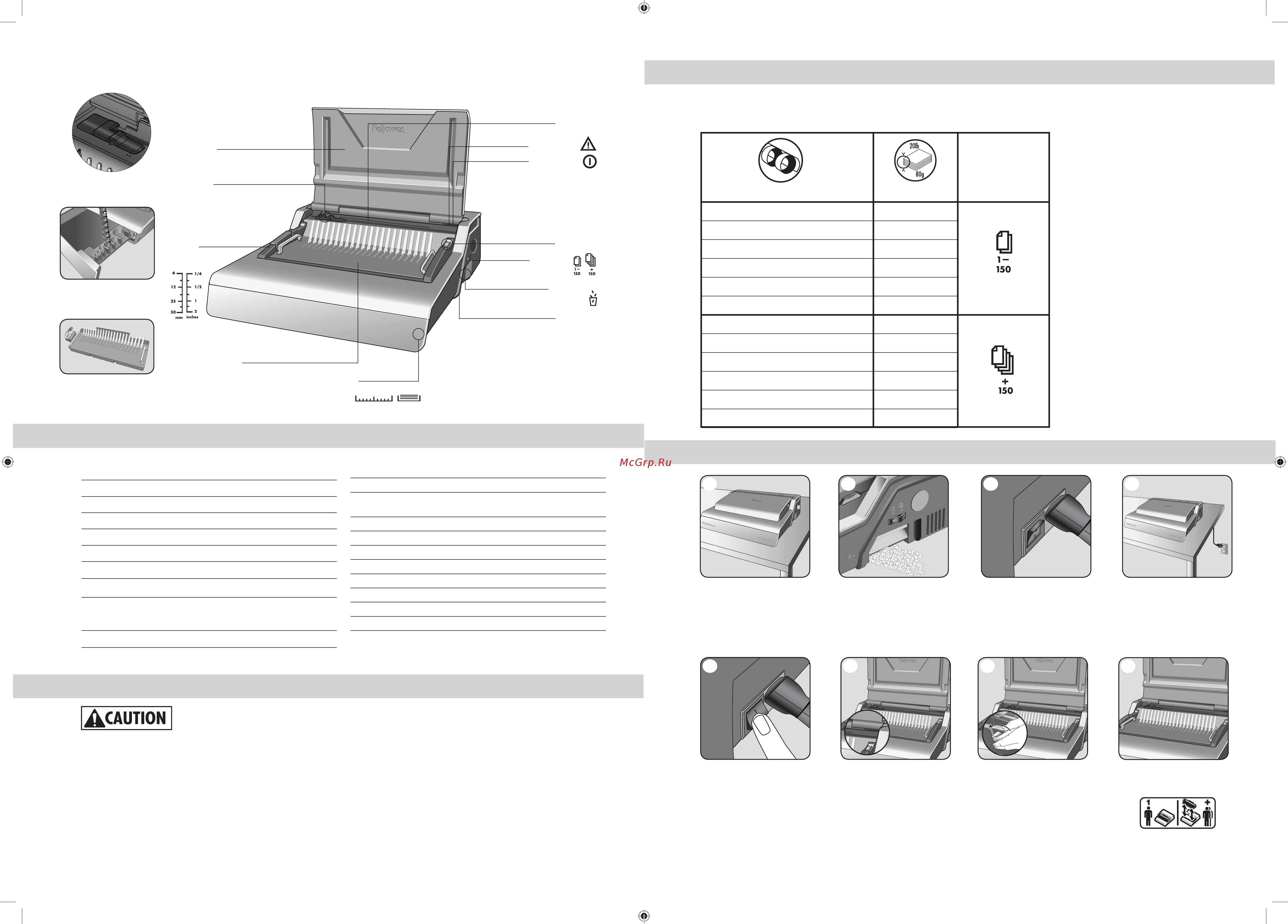

CAPABILITIES
IMPORTANT SAFETY INSTRUCTIONS — Read Before Using!
When punching;
- always ensure the machine is on a stable surface
- test punch scrap sheets and set the machine before punching final documents
- remove staples and other metal articles prior to punching
- never exceed the machines quoted performance
When binding;
- the removable binding platform can be used away from the punch unit
- always ensure the removable binding platform is on a stable surface
Keep the machine away from heat and water sources.
Never attempt to open or otherwise repair the machine.
Plug the machine into an easily accessible socket.
Note - this machine features a thermal cut-out device which activates when the
machine is overheated during use. It will automatically reset when the machine
is safe to operate.
Punching Capacity
Paper sheets
80g / 20lb 28 sheet
Transparent Covers
100-200 micron / 4-8 mil 4 sheet
200+ micron / 8+ mil 3 sheet
Other Standard Covers
160-270g / 40-60lb 4 sheet
270+g / 60+ lb 3 sheet
Binding Capacity
Max comb size 51mm
Max document (80g / 20lb) 500 sheet
Technical Data
Paper dimensions A4, A5
Punching slots 21
Adjustable back margin yes - 2 positions
(min = 2.5mm, max = 4.5mm)
Slot pitch
9
/16” / 14.28mm
Adjustable edge guide yes
Waste tray capacity 3000 sheets
Voltage 220-240V 50/60 Hz
Motor wattage 230W 1.0A
Duty Cycle 30 mins on / 30 mins off
Net weight 13.5 kg / 29.8 lb
Dimensions (HxWxD) 6.5” x 19.6” x 17.7” / 165 x 498 x 451 mm
Please read before use. Please keep for future reference.
ENGLISH
Document
support (lid)
Adjustable
edge guide
Waste tray
(dual access)
Comb
opening
lever
Paper entry
Back margin
adjustment
Carry handle
Removable platform
(binding cassette)
Power on neon
Overload neon
Punch button
mm inch number of sheets
6mm
1
/4” 2-20
8mm
5
/16” 21-40
10mm
3
/8” 41-55
12mm
1
/2” 56-90
16mm
5
/8” 91-120
18mm
11
/16” 121-150
22mm
7
/8” 151-180
25mm 1” 181-200
32mm 1
1
/4” 201-240
38mm 1
1
/2” 241-340
45mm 1
3
/4” 341-410
51mm 2” 411-500
COMB DIAMETER & DOCUMENT SIZES
SET UP
1. Ensure the machine is on a
stable surface.
Gal axy
500
1
2. Check waste tray is empty and cor-
rectly fitted. The tray can be accessed
from the left and right sides. The tray
has a ‘burst feature’ that operates
when the chip tray is ‘over-full’.
2
Need Help?
Customer Service…. www.fellowes.com
Let our experts help you with a solution.
Always call Fellowes before contacting your place of
purchase.
Set back margin
3. The machine is supplied with loose
power leads. Select the correct lead
for appropriate power supply.
3
4. Plug the lead into grounded
socket outlet.
Gala xy
500
4
7. Ensure the comb-opening lever
is pushed backwards.
7
5. Switch the machine on (located
at the rear of the machine).
5
6. Lift the lid. Check the green
power neon is on.
6
8. Ensure the binding platform is
located correctly in the machine.
8
Comb diameter sizes & margin depth adjustments
Comb storage and
Document measure
Removable platform
(binding cassette)
Edge Guide
LTRCOVER
Document
measure and
storage tray
