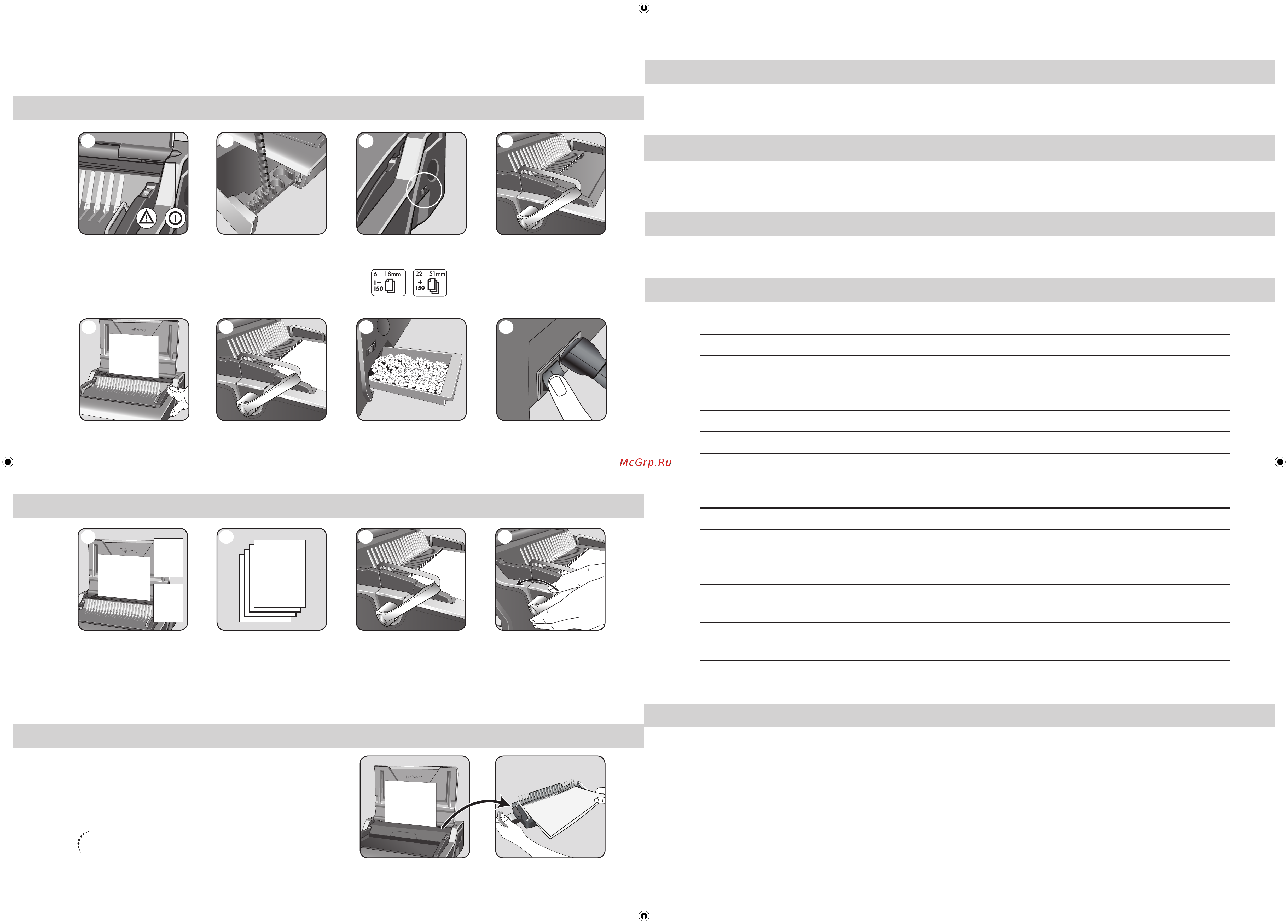

4 5
ENGLISH
STEPS TO BIND
DOCUMENT BINDING
3. Load punched sheets directly
onto the opened comb. Starting
with the front of the document.
4. When all punched sheets are
loaded onto the comb, push the
comb lever backwards to close
the comb and remove the bound
document.
21 3 4
30
30
Back
Cover
30
Front
Cover
MAX 28
(80gsm)
REMOVABLE BINDING PLATFORM
Galaxy has a unique mobile binding platform. The platform can be
lifted from the base and used on a stable surface to bind documents
using the normal binding procedure and also allows different users to
work together. When not in use, the platform should be stored safely
in the punch machine.
®
Satellite
SYSTEM
CORRECTING A BOUND DOCUMENT
REMOVAL OF WASTE CLIPPINGS
WORLDWIDE WARRANTY
Fellowes warrants all parts of the binder to be free of defects in material and workmanship
for 2 years from the date of purchase by the original consumer. If any part is found to be
defective during warranty period, your sale and exclusive remedy will be repair or replacement,
at Fellowes’ option and expense, of the defective part. This warranty does not apply in
cases of abuse, mishandling or unauthorised repair. Any implied warranty, including that of
merchantability or fitness for particular purpose, is hereby limited in duration to the appropriate
warranty period set forth above. In no event shall Fellowes be liable for any consequential
damages attributable to this product. This warranty gives you specific legal rights. You may
have other legal rights that vary from this warranty. The duration, terms and conditions of this
warranty are valid worldwide, except where different limitations, restrictions or conditions may
be required by local law. For more details or to obtain services under this warranty, please
contact Fellowes or your dealer.
TROUBLESHOOTING
Additional sheets may be included or removed at any time by opening and then closing the comb as previously described.
The waste tray is located under the machine and is accessed from each side. For best results empty the tray regularly. The tray
should be emptied after every 50 operations to ensure no blockages occur.
STORAGE
Lower the lid. The Galaxy comb binder is designed to be stored horizontally on the desk.
1. Ensure edge guide is set to
the proper document size. Punch
front and back covers first.
2. Punch sheets in small batches
that do not overload the
machine or the user.
Adjust edge guide, if necessary.
Australia Residents Only:
Our goods come with guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or refund for a major failure and for compensation for any other
reasonably foreseeable loss or damage. You are also entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure does not amount to a major failure.
The benefits under Fellowes’ Warranty are in addition to other rights and remedies under a law in relation to the machine.
1. Check the green power
neon is on.
1
2. Select the correct comb
diameter using the storage tray.
2
4. Insert the plastic comb into
the opening mechanism. Pull
comb-opening lever forward
to open the comb.
5. Test punch scrap sheets to
check edge guide setting.
5
4
7
6. Load punched sheets directly
onto the open comb.
6
7. Empty waste tray regularly
- ideally after each use.
8
8. Switch off the machine.
3
3. Select the correct back margin
depth for number of sheets.
Problem Cause Solution
No Green power neon Machine is not switched on Switch on machine at rear next to plug inlet and at the socket
Red standby neon Machine has overloaded when punching Press the punch button. The machine will withdraw the punches
and re-set itself. Continue this process until the punch cycle is
complete
Punched holes are not central Edge guide not set Adjust edge guide until hole pattern is correct
Machine will not punch Blockage
Check waste tray in empty. Check for blockage to paper entry
Punch holes are not parallel
to edge
Debris is stuck below dies Take stiff cardboard and slide into the paper entry. Move the
cardboard sideways to release any stray clippings into the
waste tray
Partial holes Sheets not correctly aligned to punch pattern Adjust edge guide and test punch scrap sheets until correct
Sheets will not turn on the
bound document
Back margin is too large for a smaller comb Select the smaller margin depth for combs up to 18mm (
11
/16
”)
in diameter (2-150 sheets) Select the larger margin depth for
combs larger than 18mm (
11
/16
”) in diameter (151-500 sheets)
Damaged hole edges Possibly overloading the machine Punch plastic covers with paper sheets. Reduce number of
sheets being punched
Waste tray leaks Waste tray is not correctly inserted or ‘burst feature’
has activated
Check waste tray is empty and ‘burst feature’ is closed
