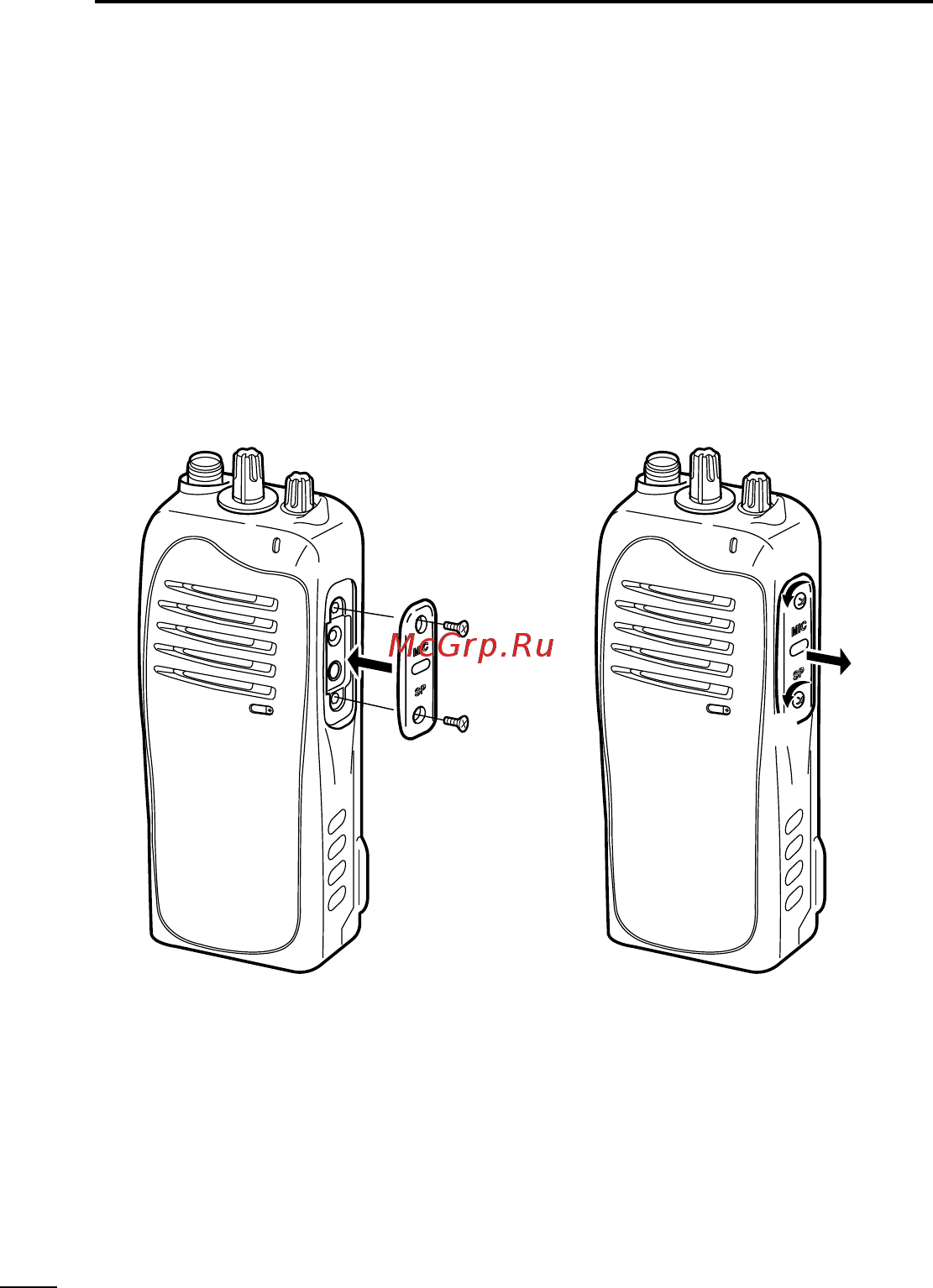

ACCESSORIES
D Jack cover
Attach the jack cover when the optional speaker-microphone is not
used.
To attach the jack cover:
q
Attach the jack cover to the
[SP MIC] connector.
w Tighten the screws.
To detach the jack cover:
e
Unscrew the screws with a
phillips screwdriver.
r
Detach the jack cover for the
optional equipment connec-
tion.
e
e
r
w
w
q
