ACCESSORIES
D Belt clip

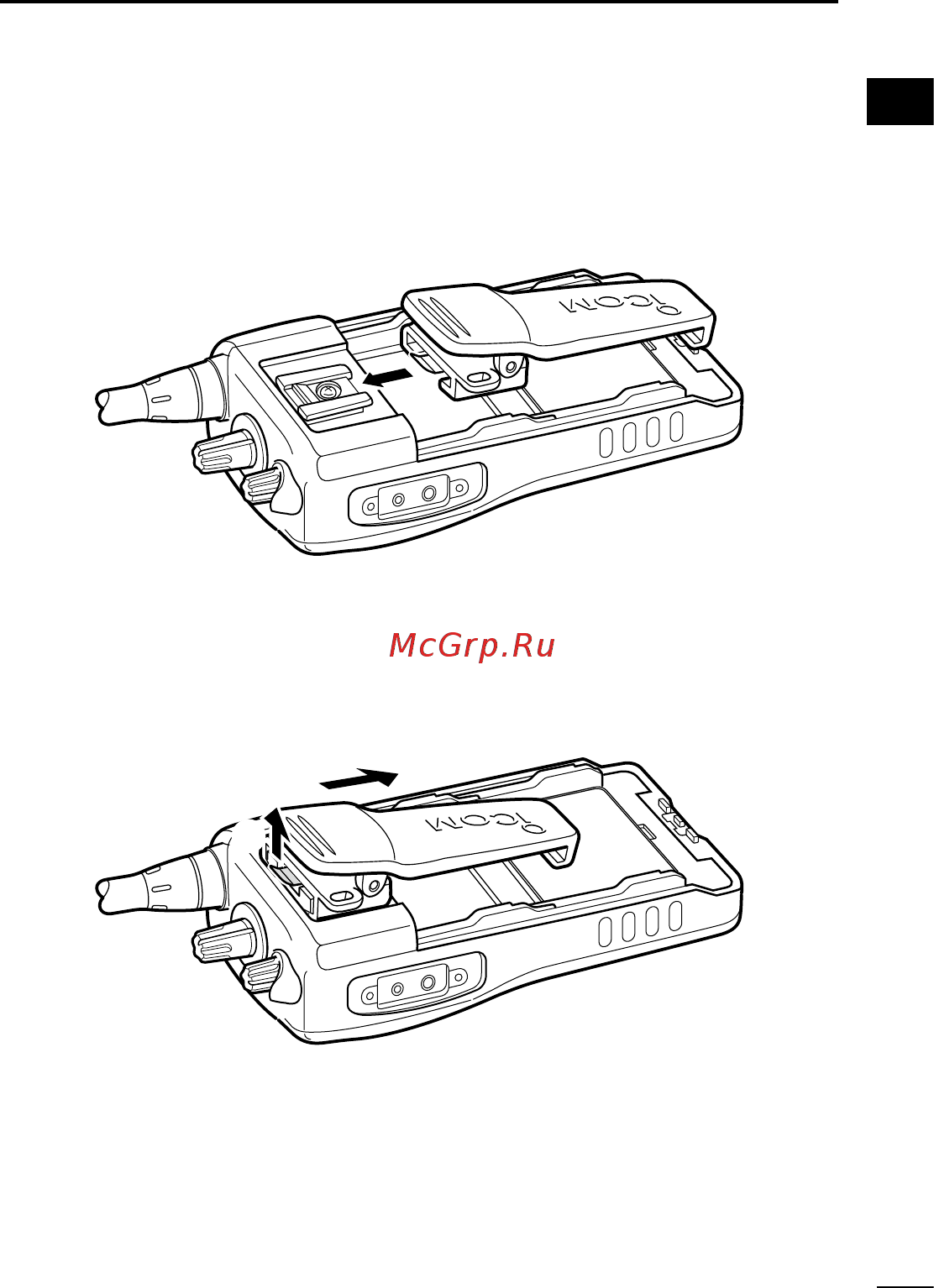

To attach the belt clip:
q
Release the battery pack if it is attached.
w
Slide the belt clip in the direction of the arrow until the belt clip is
locked and makes a ‘click’ sound.
To detach the belt clip:
q
Release the battery pack if it is attached.
w
Pinch the clip (q), and slide the belt clip in the direction of the
arrow (w).
