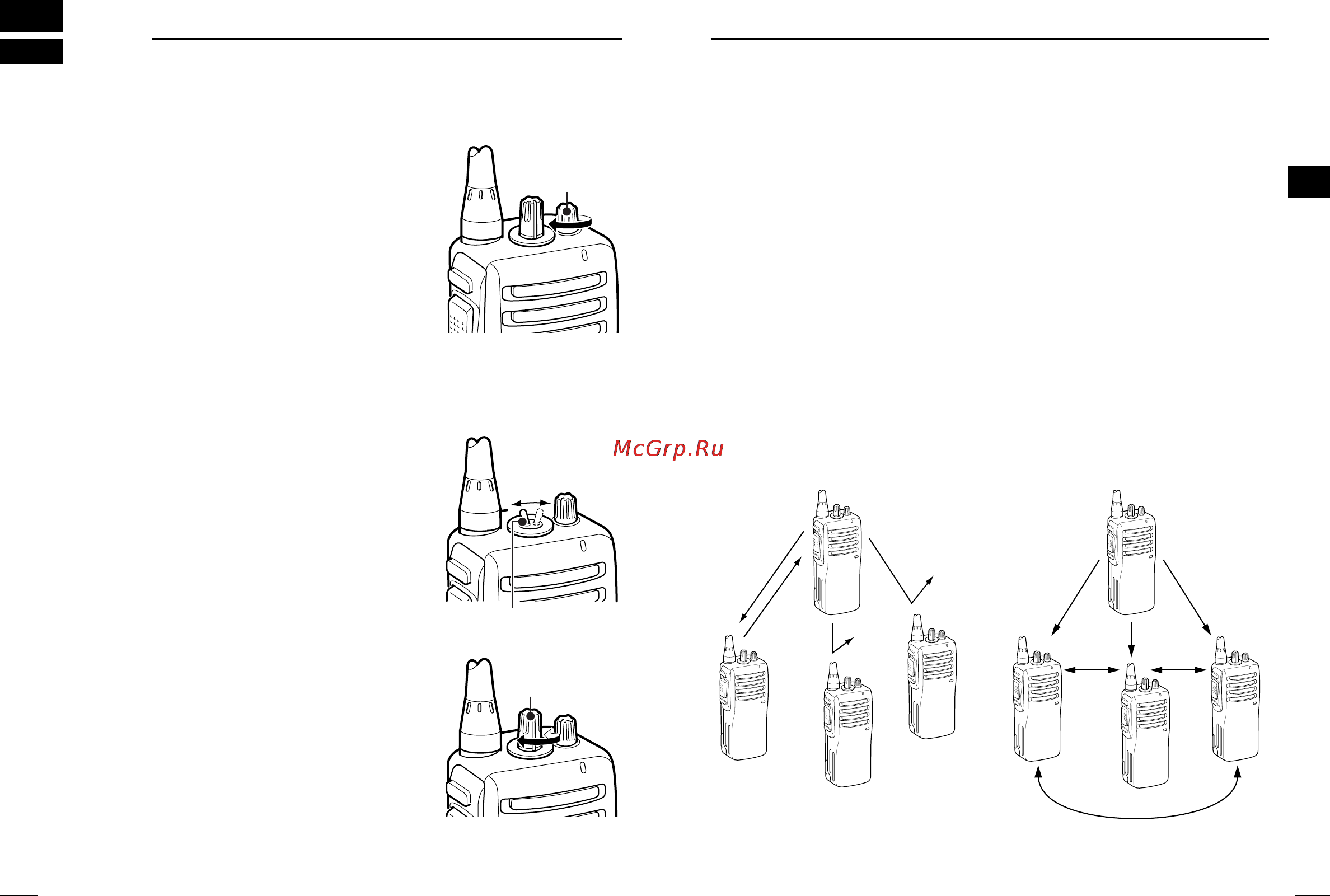

CONVENTIONAL OPERATION
3
12
3
CONVENTIONAL OPERATION
■ Turning power ON
➥ Rotate [VOL] to turn power ON.
■ Channel selection
IC-F14S/F24S:
Toggle [CHANNEL SWITCH] to select
the channel 1 or 2, or, push one of [MR-
CH 1] to [MR-CH 4] key to select a chan-
nel directly.
• The memory channels 3 and 4 are avail-
able when [MR-CH 3] and [MR-CH 4]
keys are assigned.
IC-F14/F24:
Rotate [CHANNEL SELECTOR] to se-
lect the desired operating channel, in se-
quence; or, push one of [MR-CH 1] to
[MR-CH 4] key to select a channel di-
rectly.
AUTOMATIC SCAN TYPE:
Channel setting is not necessary for this type. When turning the
power ON, the transceiver automatically starts scanning. Scanning
stops when receiving a call.
[VOL]
[CHANNEL
SELECTOR]
[CHANNEL SWITCH]
■ Call procedure
When your system employs tone signalling (excluding CTCSS and
DTCS), the call procedure may be necessary prior to voice trans-
mission. The tone signalling employed may be a selective calling
system which allows you to call specific station(s) only and prevent
unwanted stations from contacting you.
q Select the desired TX code channel or 2/5-tone code according
to your System Operator’s instructions.
• This may not be necessary depending on programming.
w Push the call key (assigned to one of the dealer programmable
keys.) (p. 11)
e After transmitting a 2/5-tone code, the remainder of your com-
munication can be carried out in the normal fashion.
Selective calling
Non-selective calling
