Icom IC-F14/S [15/21] I optional battery chargers
![Icom IC-F14/S [15/21] I optional battery chargers](/views2/1074170/page15/bgf.png)
22
5
BATTERY CHARGING
23
5
BATTERY CHARGING
5

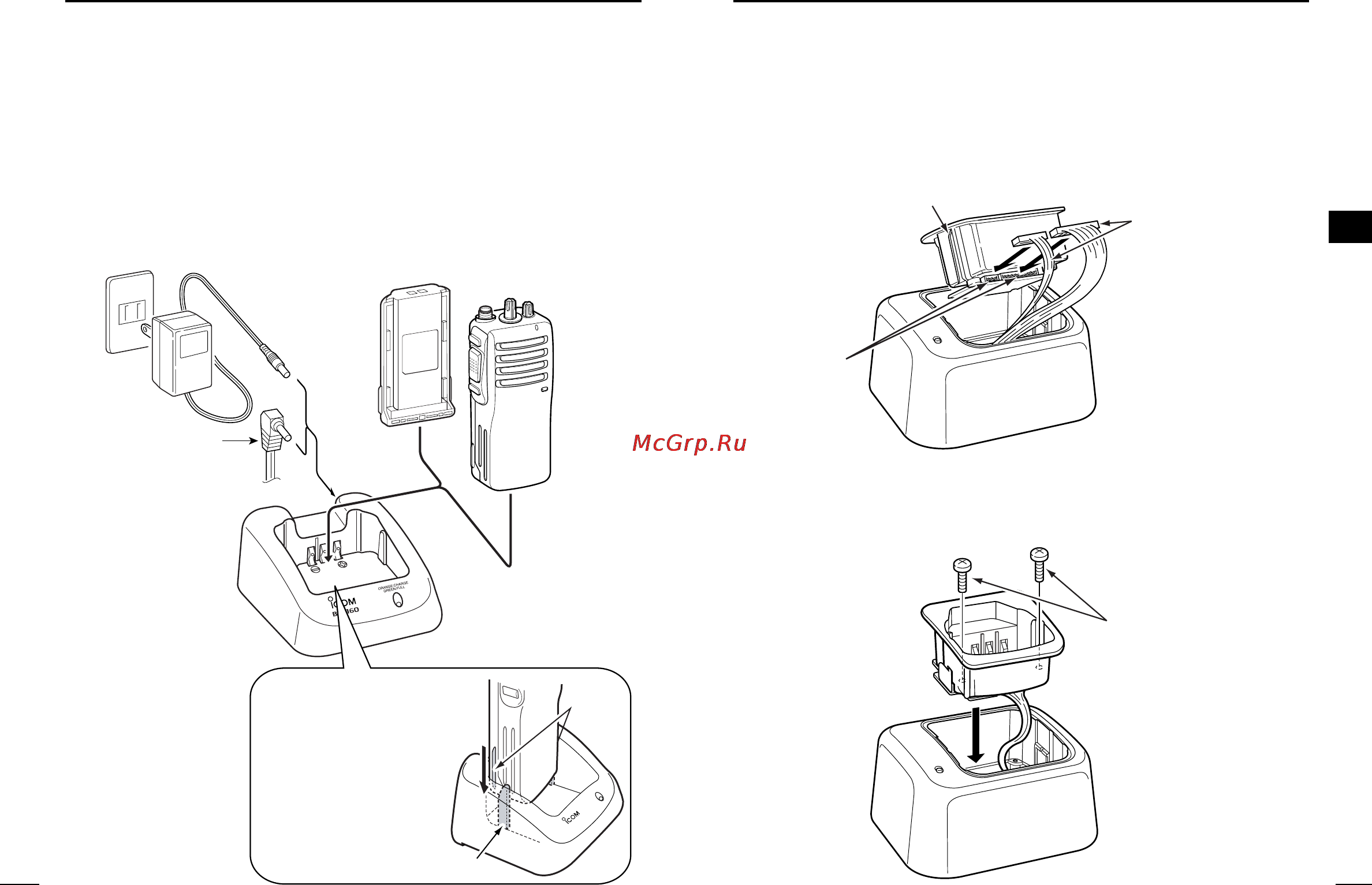

■ Optional battery chargers
D Rapid charging with the BC-160
The optional BC-160 provides rapid charging of optional Li-Ion bat-
tery packs.
• An AC adapter (may be supplied with BC-160 depending on ver-
sion) or the DC power cable (OPC-515L/CP-17L) is additionally
required.
AC adapter
(Not supplied with
some versions.)
Optional OPC-515L
(for 13.8 V power
source) or CP-17L
(for 12 V cigarette
lighter socket) can
be used instead of
the AC adapter.
BP-231
TRANSCEIVER
b
c
-16
0
IMPORTANT!:
Ensure the guide
lobs on the bat-
tery pack are
correctly aligned
with the guide
rails inside the
charger adapter.
Guide rail
Lobs
ï AD-106 installation
q Install the AD-106 desktop charger adapter into the holder space
of the BC-119N/121N.
w Connect the plugs of the BC-119N/BC-121N to the AD-106 with
the connector, then install the adapter into the charger with the
supplied screws.
Desktop charger adapter
Connectors
Plugs
Screws supplied
with the charger
adapter
IC-F14_F24-2.qxd 04.7.22 0:57 PM Page 22 (1,1)
