29
6
SWIVEL BELT CLIP
6
28
6
SWIVEL BELT CLIP

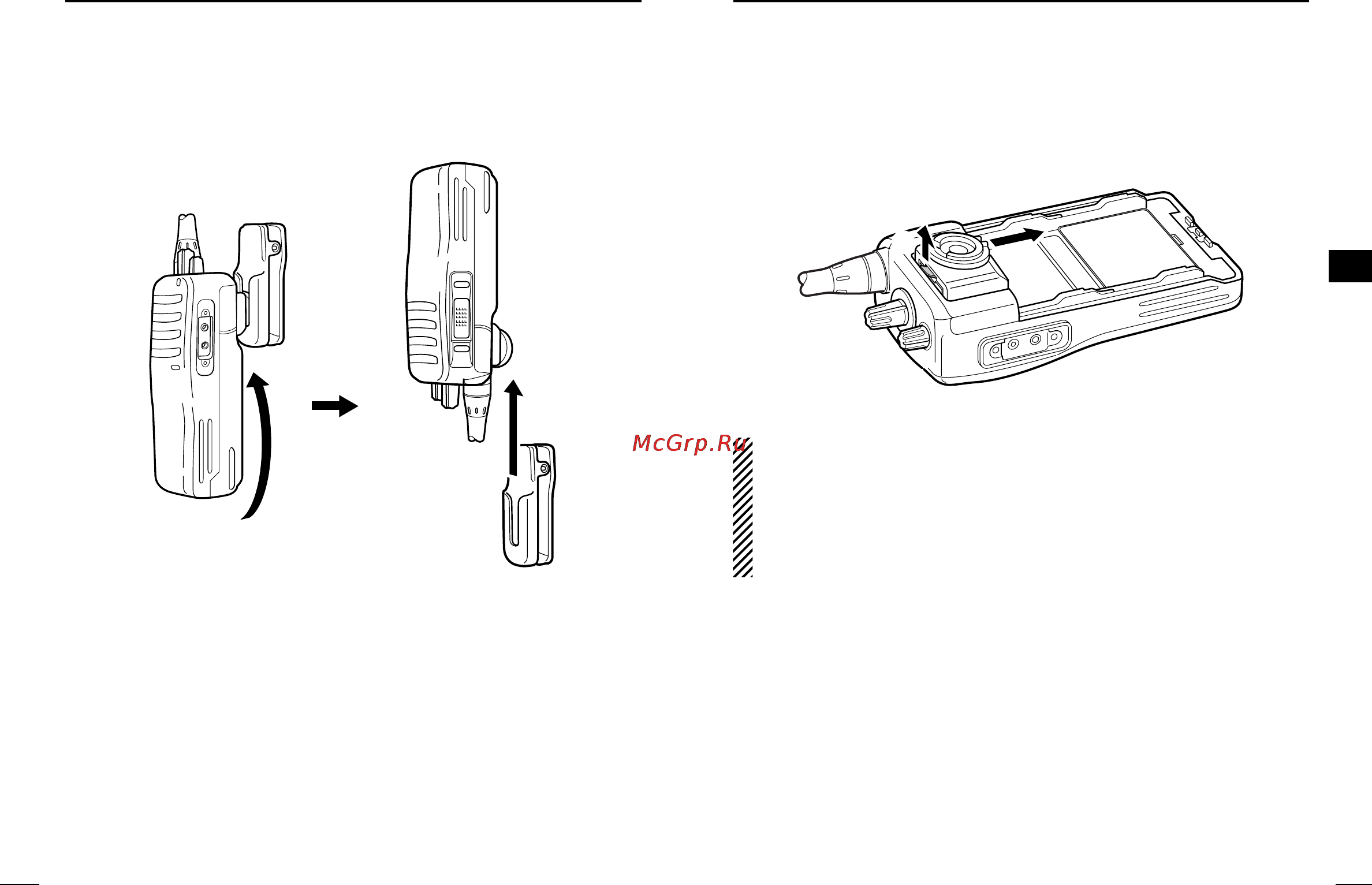

■ To detach
q Turn the transceiver upside down in the direction of the arrow
and pull out from the belt clip.
w Release the battery pack if it is attached. (p. 3)
e Pinch the clip (q), and slide the base clip in the direction of the
arrow (w).
CAUTION:
HOLD THE TRANSCEIVER TIGHTLY, WHEN HANGING OR
DETACHING THE TRANSCEIVER FROM THE BELT CLIP.
Otherwise the transceiver may not be attached to the holder or
swivel properly if the transceiver is accidentally dropped and the
base clip is scratched or damaged.
q
w
