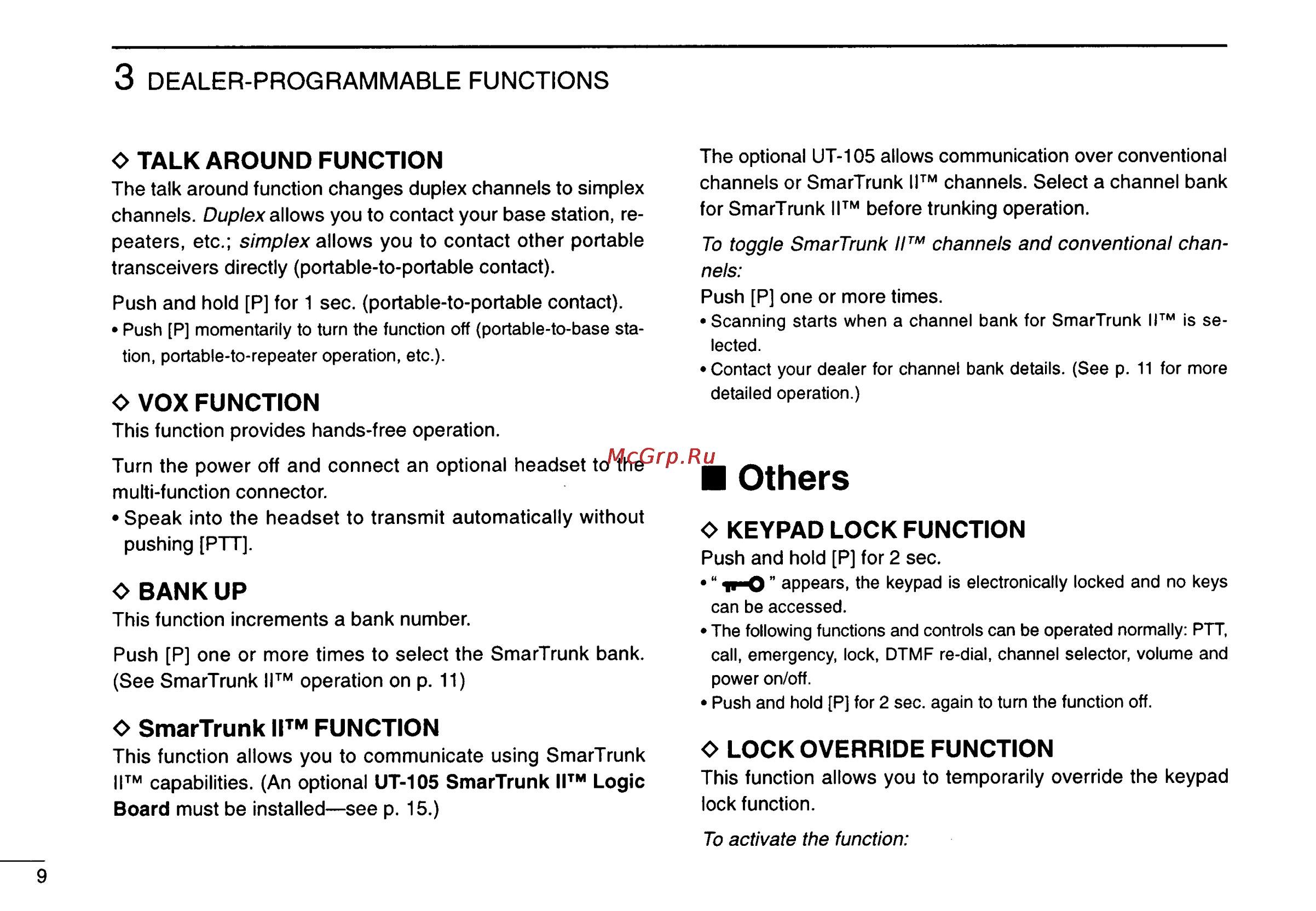

Icom IC-F40LT [12/20] Others
![Icom IC-F40LT [12/20] Others](/views2/1074503/page12/bgc.png)
Содержание
- Compatible 1
- Ic f3o lt 1
- Ic f4o lt 1
- Icom inc 1
- Smartrunkd 1
- Foreword 2
- Important cautions 2
- Warning never 2
- 1 flexible antenna belt clip and screws 3
- Approved 3
- Battery pack cm 140 or cm 141 3
- Class i division 2 groups a b c d 3
- Class i ii iii division 1 groups c d e f g 3
- Intrinsically safe 3
- Intrinsically safe table of contents 3
- Nonincentive 3
- Note versions which conform to these ratings only do so when the cm 141 is the connected battery pack 3
- Smartrunk ii is a trademark of smartrunk systems inc 3
- Some versions of the transceiver conform to intrinsically safe ratings of the fmrc factory mutual research corporation ask your icom dealer for details 3
- The following accessories are included with the transceiver 3
- Unpacking 3
- Panel description 1 5
- Basic operation 6
- Channel selection 6
- O rotary selector type 6
- Turning power on 6
- О keypad entry type 6
- Basic operation 2 7
- Low battery condition 7
- O time out timer tot 7
- O transmitting while scanning 7
- Receiving and transmitting 7
- Transmitting notes 7
- Basic operation 8
- Call procedure 8
- Europe versions only 8
- Manual 5 tone codes 8
- O penalty timer 8
- Tx code channel selection 8
- Channel selection 9
- Dealer programmable functions 9
- General 9
- Jl нм 9
- Г г ин пес jcitn цгч 9
- Ггон пн 9
- И i i 9
- Dealer programmable functions 10
- O monitor function 10
- Odtmf transmission 10
- Output power selection 10
- Receive transmit 10
- Dealer programmable functions 3 11
- O dtmf re dial function 11
- O emergency function 11
- O tx code channel selection 11
- Otx 5 tone code 11
- Tone call 11
- Bank up 12
- Dealer programmable functions 12
- Lock override function 12
- O keypad lock function 12
- O talk around function 12
- Others 12
- Smartrunk ii function 12
- Vox function 12
- Custom program 13
- Dealer programmable functions 3 13
- O man down function 13
- Programmable switch reference 13
- Calling another local system subscriber 14
- Conventional modes 14
- O last number redial 14
- O memory speed dialing 14
- O receiving a call 14
- O terminating a call 14
- Optional smartrunk ii operation 14
- Placing a telephone call 14
- Smartrunk ii and 14
- Smartrunk ii operation 14
- Emergency call 15
- O clear channel alerting 15
- O system busy indication 15
- O turbo speedial 15
- Optional smartrunk ii operation 4 15
- Programming memory speed dial 15
- Ptt dispatch operation 15
- Battery cautions 16
- Battery pack replacement 16
- Battery packs 16
- Recycling information usa only 16
- Battery charging 17
- Battery packs 5 17
- O rapid charging with the bc 119 bc 121 17
- Ml 6 optional ut 105 installation 18
- General 19
- Options 19
- Receiver 19
- Specifications 19
- Specifications and options 19
- Transmitter 19
- 9 16 kamihigashi hirano ku osaka 547 japan 20
- Count on us 20
- Icom inc 20
Похожие устройства
- Ardo 66 GG40 W Инструкция по эксплуатации
- Sony SAL 1855 Инструкция по эксплуатации
- Icom IC-F33GT Инструкция по эксплуатации
- Ardo C 6640 G6 Инструкция по эксплуатации
- Sony SAL30 M28 Инструкция по эксплуатации
- Icom IC-F43GT Инструкция по эксплуатации
- Ardo A 56V4 ED Инструкция по эксплуатации
- Sony SAL35 F18 Инструкция по эксплуатации
- Icom IC-F121 Инструкция по эксплуатации
- Ardo A 504EB Инструкция по эксплуатации
- Icom IC-F221 Инструкция по эксплуатации
- Ardo KA 604 EB Инструкция по эксплуатации
- Icom IC-F121S Инструкция по эксплуатации
- Ardo TLE 6640 G6 X Инструкция по эксплуатации
- Tokina AT-X 12-24 II F/4 Инструкция по эксплуатации
- Icom IC-F221S Инструкция по эксплуатации
- Ardo KTLE 6640 G6 Инструкция по эксплуатации
- Tokina AT-X 10-17 F/3.5-4.5 Инструкция по эксплуатации
- Icom IC-F310 Инструкция по эксплуатации
- Ardo KA 540 G6 Инструкция по эксплуатации
3 DEALER PROGRAMMABLE FUNCTIONS O TALK AROUND FUNCTION The talk around function changes duplex channels to simplex channels Duplex allows you to contact your base station re peaters etc simplex allows you to contact other portable transceivers directly portable to portable contact Push and hold P for 1 sec portable to portable contact Push P momentarily to turn the function off portable to base sta tion portable to repeater operation etc 0 VOX FUNCTION The optional UT 105 allows communication over conventional channels or SmarTrunk II channels Select a channel bank for SmarTrunk II before trunking operation To toggle SmarTrunk II channels and conventional chan nels Push P one or more times Scanning starts when a channel bank for SmarTrunk II is se lected Contact your dealer for channel bank details See p 11 for more detailed operation This function provides hands free operation Turn the power off and connect an optional headset to the multi function connector Speak into the headset to transmit automatically without pushing PTT 0 BANK UP This function increments a bank number Push P one or more times to select the SmarTrunk bank See SmarTrunk II operation on p 11 0 SmarTrunk II FUNCTION This function allows you to communicate using SmarTrunk II capabilities An optional UT 105 SmarTrunk II Logic Board must be installed see p 15 Others O KEYPAD LOCK FUNCTION Push and hold P for 2 sec i 0 appears the keypad is electronically locked and no keys can be accessed The following functions and controls can be operated normally PTT call emergency lock DTMF re dial channel selector volume and power on off Push and hold P for 2 sec again to turn the function off 0 LOCK OVERRIDE FUNCTION This function allows you to temporarily override the keypad lock function To activate the function 9
