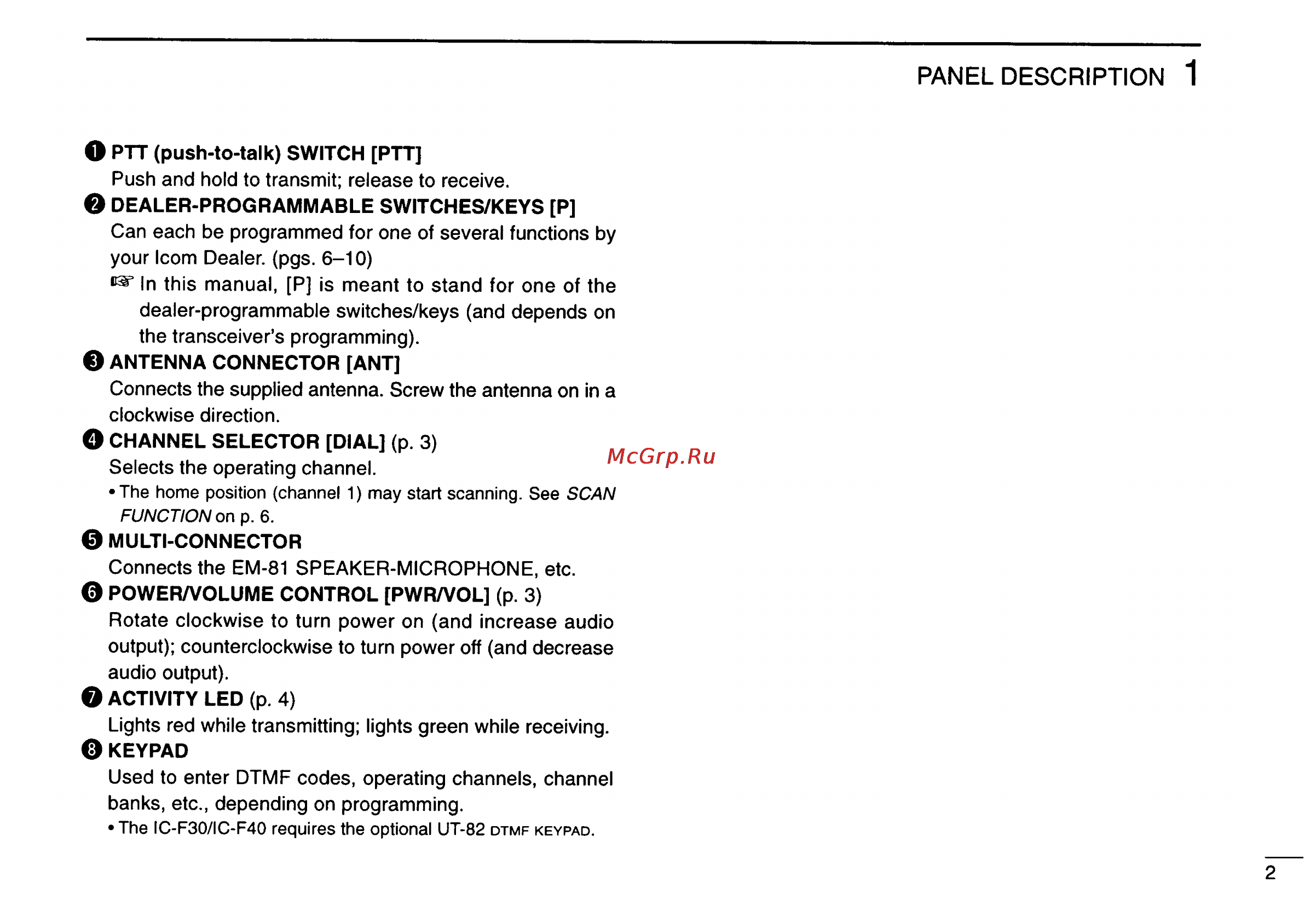

PANEL DESCRIPTION 1 O PTT push to talk SWITCH PTT Push and hold to transmit release to receive O DEALER PROGRAMMABLE SWITCHES KEYS P Can each be programmed for one of several functions by your Icom Dealer pgs 6 10 s In this manual P is meant to stand for one of the dealer programmable switches keys and depends on the transceiver s programming 0 ANTENNA CONNECTOR ANT Connects the supplied antenna Screw the antenna on in a clockwise direction O CHANNEL SELECTOR DIAL p 3 Selects the operating channel The home position channel 1 may start scanning See SCAN FUNCTION on p 6 0 MULTI CONNECTOR Connects the EM 81 SPEAKER MICROPHONE etc 0 POWER VOLUME CONTROL PWR VOL p 3 Rotate clockwise to turn power on and increase audio output counterclockwise to turn power off and decrease audio output ACTIVITY LED p 4 Lights red while transmitting lights green while receiving KEYPAD Used to enter DTMF codes operating channels channel banks etc depending on programming The IC F30 IC F40 requires the optional UT 82 DTMF KEYPAD 2
