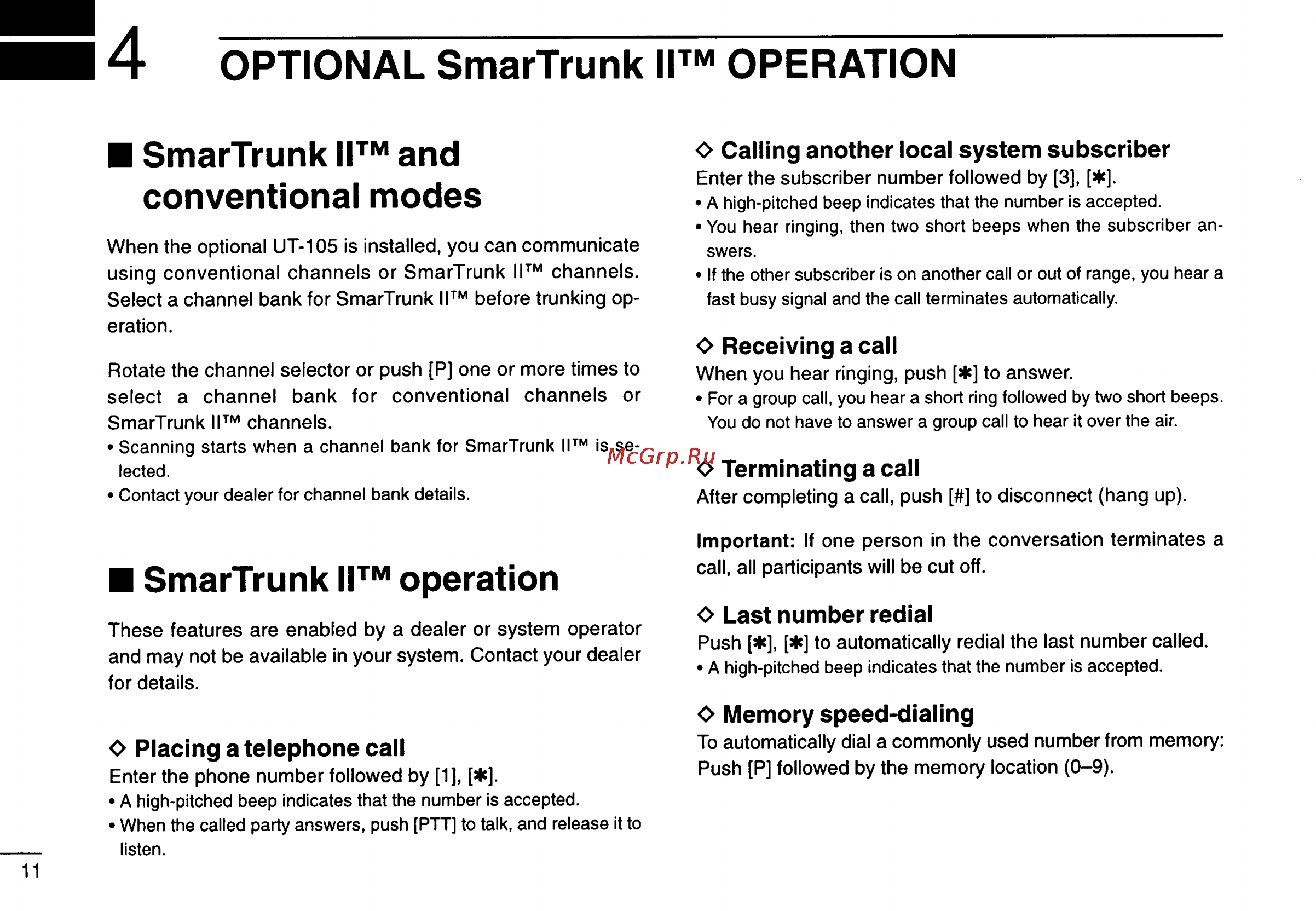

4 OPTIONAL SmarTrunk II OPERATION SmarTrunk II and conventional modes Calling another local system subscriber When the optional UT 105 is installed you can communicate using conventional channels or SmarTrunk II channels Select a channel bank for SmarTrunk II before trunking op eration swers If the other subscriber is on another call or out of range you hear a Enter the subscriber number followed by 3 A high pitched beep indicates that the number is accepted You hear ringing then two short beeps when the subscriber an fast busy signal and the call terminates automatically O Receiving a call Rotate the channel selector or push P one or more times to select a channel bank for conventional channels or SmarTrunk II channels When you hear ringing push to answer For a group call you hear a short ring followed by two short beeps You do not have to answer a group call to hear it over the air Scanning starts when a channel bank for SmarTrunk II is se lected Contact your dealer for channel bank details SmarTrunk II operation These features are enabled by a dealer or system operator and may not be available in your system Contact your dealer for details O Terminating a call After completing a call push to disconnect hang up Important If one person in the conversation terminates a call all participants will be cut off O Last number redial Push to automatically redial the last number called A high pitched beep indicates that the number is accepted O Memory speed dialing Placing a telephone call Enter the phone number followed by 1 A high pitched beep indicates that the number is accepted When the called party answers push PTT to talk and release it to listen To automatically dial a commonly used number from memory Push P followed by the memory location 0 9
