BIIS OPERATION

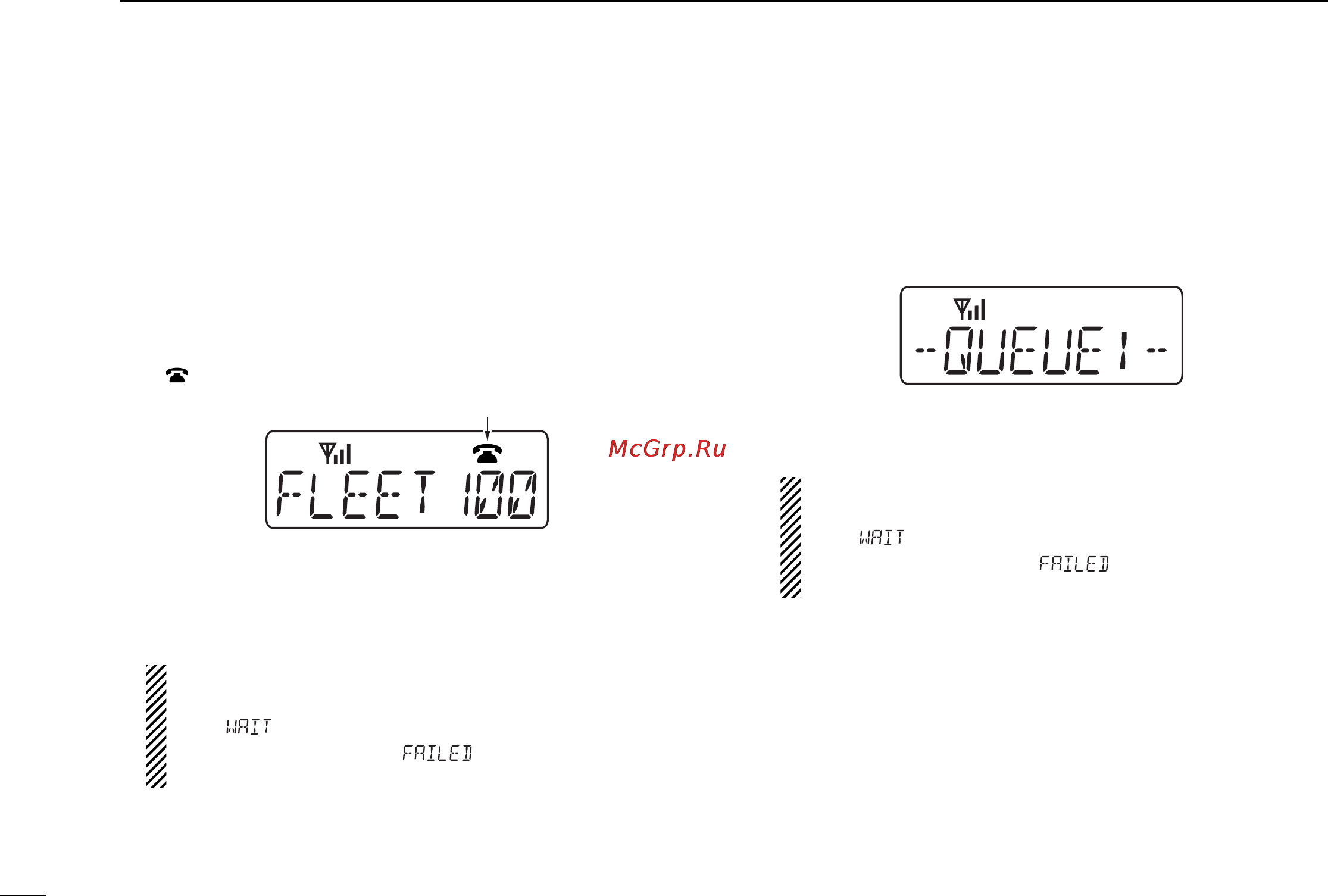

■ Transmitting a call
Total of a 3 ways for code selection are available—selecting
the call code from memory, entering the call code from the
keypad and calling back from the queue channel record.
DD
Using call memory
q While in the standby condition, push [P1] (Digital) to enter
the call code memory channel selection mode.
•“ ” appears.
w Push [UP] or [DOWN] to select the desired call code.
e Push [P0] (Call) or [PTT]* to call.
*PTT call can be made only when PTT call capability is permitted.
NOTE: When no answer back is received, the trans-
ceiver repeats the call 3 times (default) automatically,
and
“”is displayed during each call. However, an
error beep sounds and
“”is displayed when no
answer back is received after the calls.
r Push [PTT] to transmit; release to receive.
t Push [MONITOR] (Moni(Audi)) to send the ‘Clear down’
signal.
DD
Calling back from the queue channel
q While in the standby condition, push [P1] (Digital) for
1 sec. to enter the queue memory channel selection mode.
w Push [UP] or [DOWN] to select the desired record.
e Push [P0] (Call) or [PTT]* to call.
*PTT call can be made only when PTT call capability is permitted.
NOTE: When no answer back is received, the trans-
ceiver repeats the call 3 times (default) automatically,
and
“”is displayed during each call. However, an
error beep sounds and
“”
is displayed when no
answer back is received after the calls.
r Push [PTT] to transmit; release to receive.
t Push [MONITOR] (Moni(Audi)) to send the ‘Clear down’
signal.
Call code text is displayed.
Appears
