CONNECTION AND MAINTENANCE
3
9

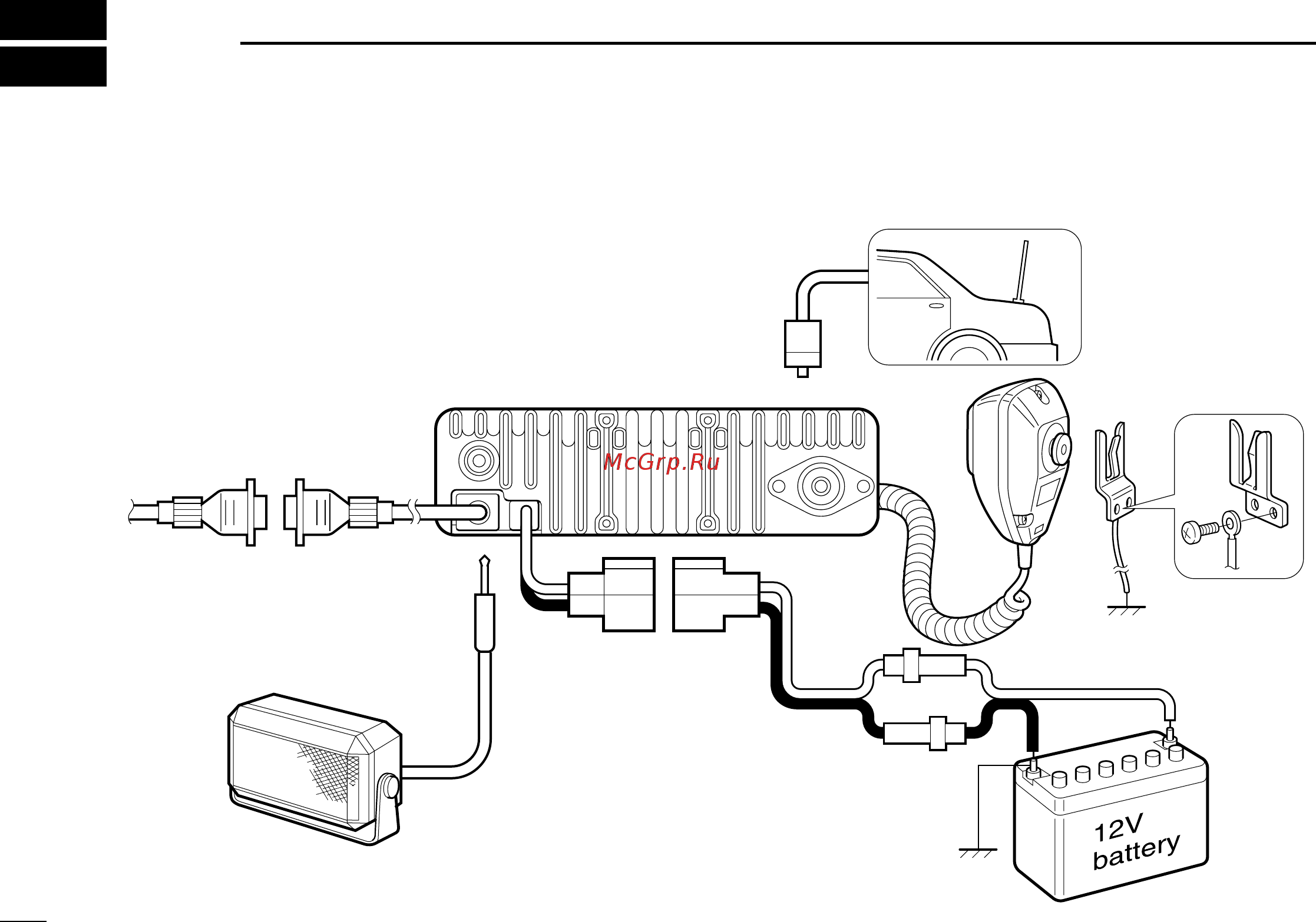

■ Rear panel and connection
Antenna
red: +
black: _
Supplied DC
power cable
Optional speaker
(SP-10)
Optional cable
(OPC-617)
t
q
w
e
r
