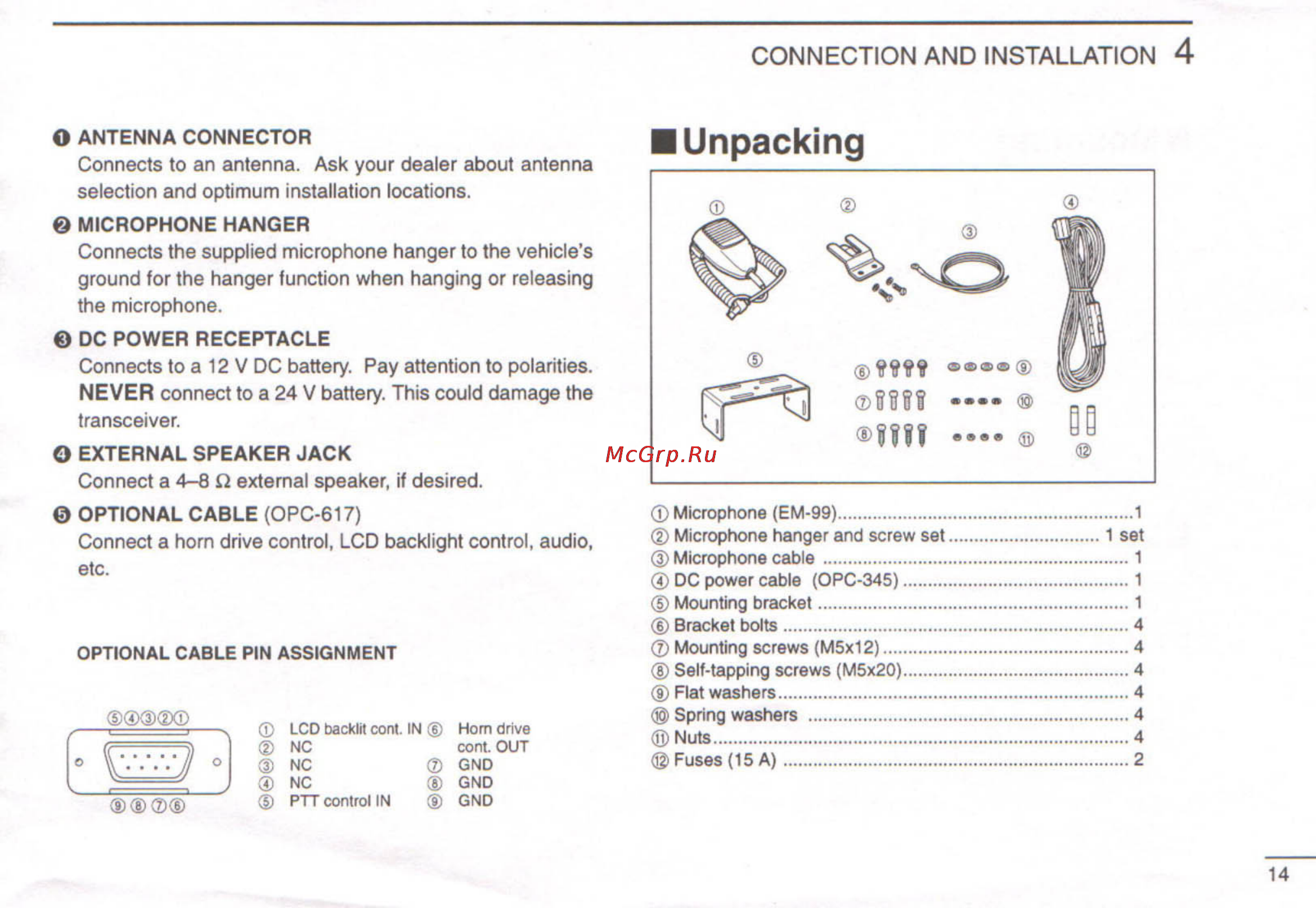

CONNECTION AND INSTALLATION 4 O ANTENNA CONNECTOR Connects to an antenna Ask your dealer about antenna selection and optimum installation locations Unpacking MICROPHONE HANGER Connects the supplied microphone hanger to the vehicle s ground for the hanger function when hanging or releasing the microphone DC POWER RECEPTACLE Connects to a 12 V DC battery Pay attention to polarities NEVER connect to a 24 V battery This could damage the transceiver 0 EXTERNAL SPEAKER JACK Connect a 4 8 Q external speaker if desired OPTIONAL CABLE OPC 617 Connect a horn drive control LCD backlight control audio etc OPTIONAL CABLE PIN ASSIGNMENT o LCD backlit cont IN Hom drive NC cont OUT NC GND NC GND PTT control IN GND d Microphone EM 99 1 2 Microphone hanger and screw set 1 set Microphone cable 1 DC power cable OPC 345 1 5 Mounting bracket 1 Bracket bolts 4 0 Mounting screws M5x12 4 Self tapping screws M5x20 4 Flat washers 4 Spring washers 4 Nuts 4 Fuses 15 A 2 14
