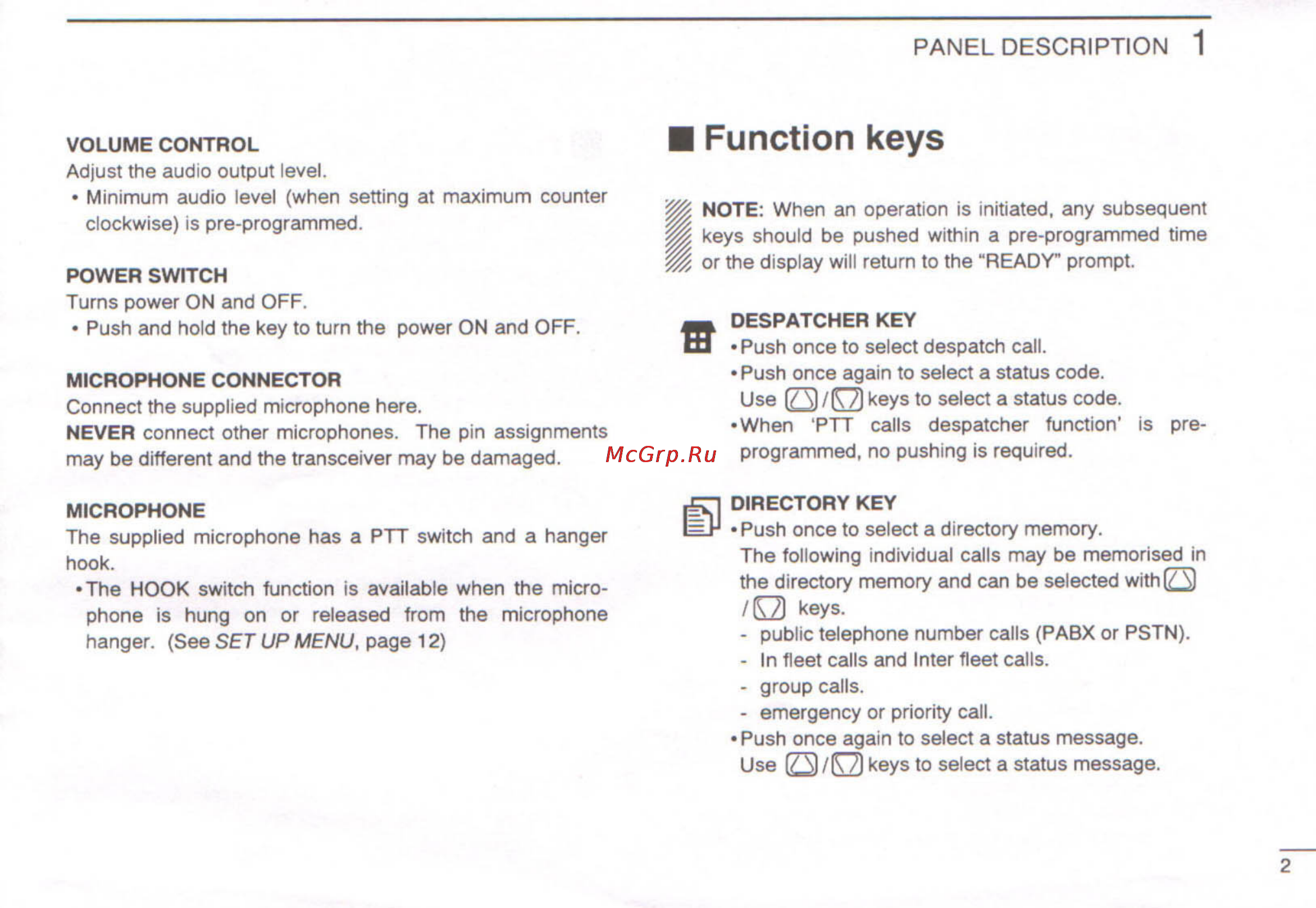

PANEL DESCRIPTION 1 VOLUME CONTROL Adjust the audio output level Minimum audio level when setting at maximum counter clockwise is pre programmed POWER SWITCH Function keys NOTE When an operation is initiated any subsequent K keys should be pushed within a pre programmed time or the display will return to the READY prompt Turns power ON and OFF Push and hold the key to turn the power ON and OFF DESPATCHER KEY MICROPHONE CONNECTOR Hd Push once to select despatch call Push once again to select a status code Use 3 Q keys to select a status code When PTT calls despatcher function programmed no pushing is required Connect the supplied microphone here NEVER connect other microphones The pin assignments may be different and the transceiver may be damaged MICROPHONE The supplied microphone has a PTT switch and a hanger hook The HOOK switch function is available when the micro phone is hung on or released from the microphone hanger See SET UP MENU page 12 e is DIRECTORY KEY Push once to select a directory memory The following individual calls may be memorised in the directory memory and can be selected with 3 M keys public telephone number calls PABX or PSTN In fleet calls and Inter fleet calls group calls emergency or priority call Push once again to select a status message Use 0 0 keys t0 select a status message pre
