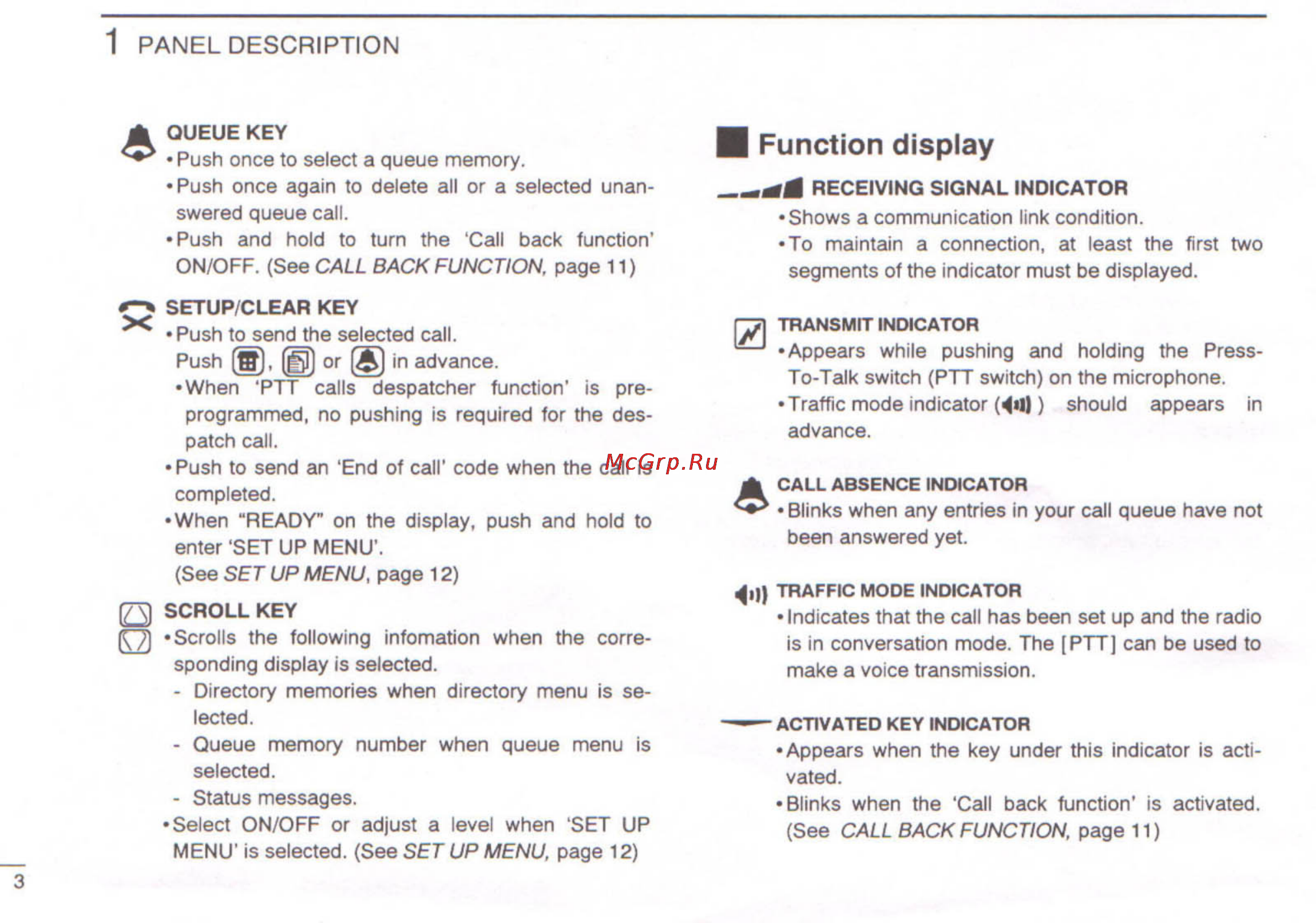

1 PANEL DESCRIPTION A QUEUE KEY Push once to select a queue memory Push once again to delete all or a selected unan swered queue call Push and hold to turn the Call back function ON OFF See CALL BACK FUNCTION page 11 SETUP CLEAR KEY Push to send the selected call Push or in advance When PTT calls despatcher function is pre programmed no pushing is required for the des patch call Push to send an End of call code when the call is completed When READY on the display push and hold to enter SET UP MENU See SET UP MENU page 12 Q SCROLL KEY Q Scrolls the following infomation when the corre sponding display is selected Directory memories when directory menu is se lected Queue memory number when queue menu is selected Status messages Select ON OFF or adjust a level when SET UP MENU is selected See SET UP MENU page 12 I Function display RECEIVING SIGNAL INDICATOR Shows a communication link condition To maintain a connection at least the first two segments of the indicator must be displayed y TRANSMIT INDICATOR Appears while pushing and holding the PressTo Talk switch PTT switch on the microphone Traffic mode indicator il should appears in advance A CALL ABSENCE INDICATOR Blinks when any entries in your call queue have not been answered yet i TRAFFIC MODE INDICATOR Indicates that the call has been set up and the radio is in conversation mode The PTT can be used to make a voice transmission ACTIVATED KEY INDICATOR Appears when the key under this indicator is acti vated Blinks when the Call back function is activated See CALL BACK FUNCTION page 11
