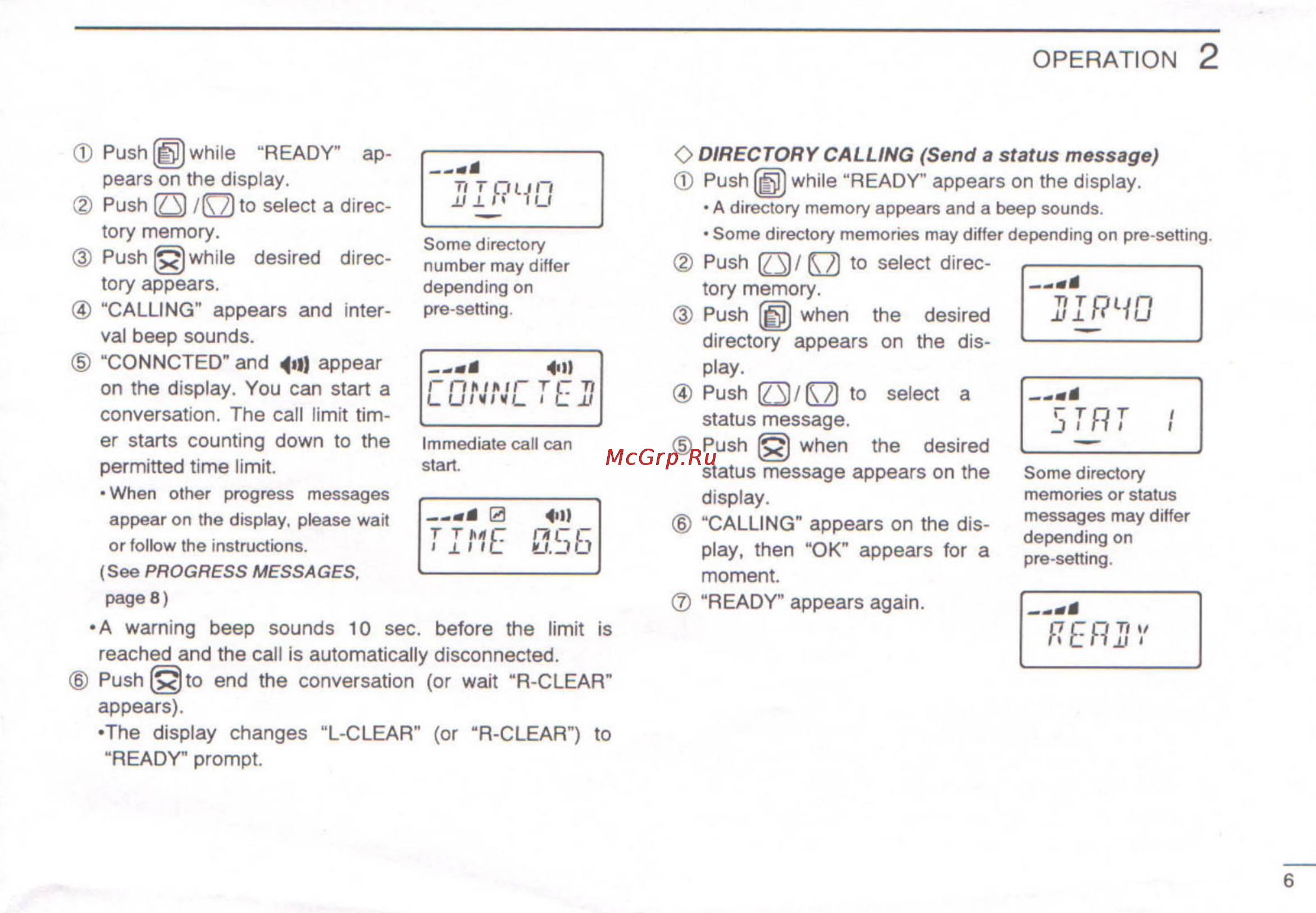

OPERATION 2 CD Push g while READY ap pears on the display D Push Q 77 to select a direc tory memory Push while desired direc tory appears CALLING appears and inter val beep sounds CONNCTED and u appear on the display You can start a conversation The call limit tim er starts counting down to the permitted time limit When other progress messages appear on the display please wait or follow the instructions See PROGRESS MESSAGES page 8 O DIRECTORY CALLING Send a status message CD Push g while READY appears on the display A directory memory appears and a beep sounds Some directory number may differ depending on pre setting r nut HIT T r n I UI MI I L 2 Immediate call can start 1 0 TTMC nii c nie kj JU A warning beep sounds 10 sec before the limit is reached and the call is automatically disconnected Push to end the conversation or wait R CLEAR appears The display changes L CLEAR or R CLEAR to READY prompt Some directory memories may differ depending on pre setting t0 select direc Push tory memory Push g when the desired directory appears on the dis play Push Q Q t0 select a status message Push when the desired status message appears on the display CALLING appears on the dis play then OK appears for a moment 7 READY appears again Some directory memories or status messages may differ depending on pre setting REP Tz 6
