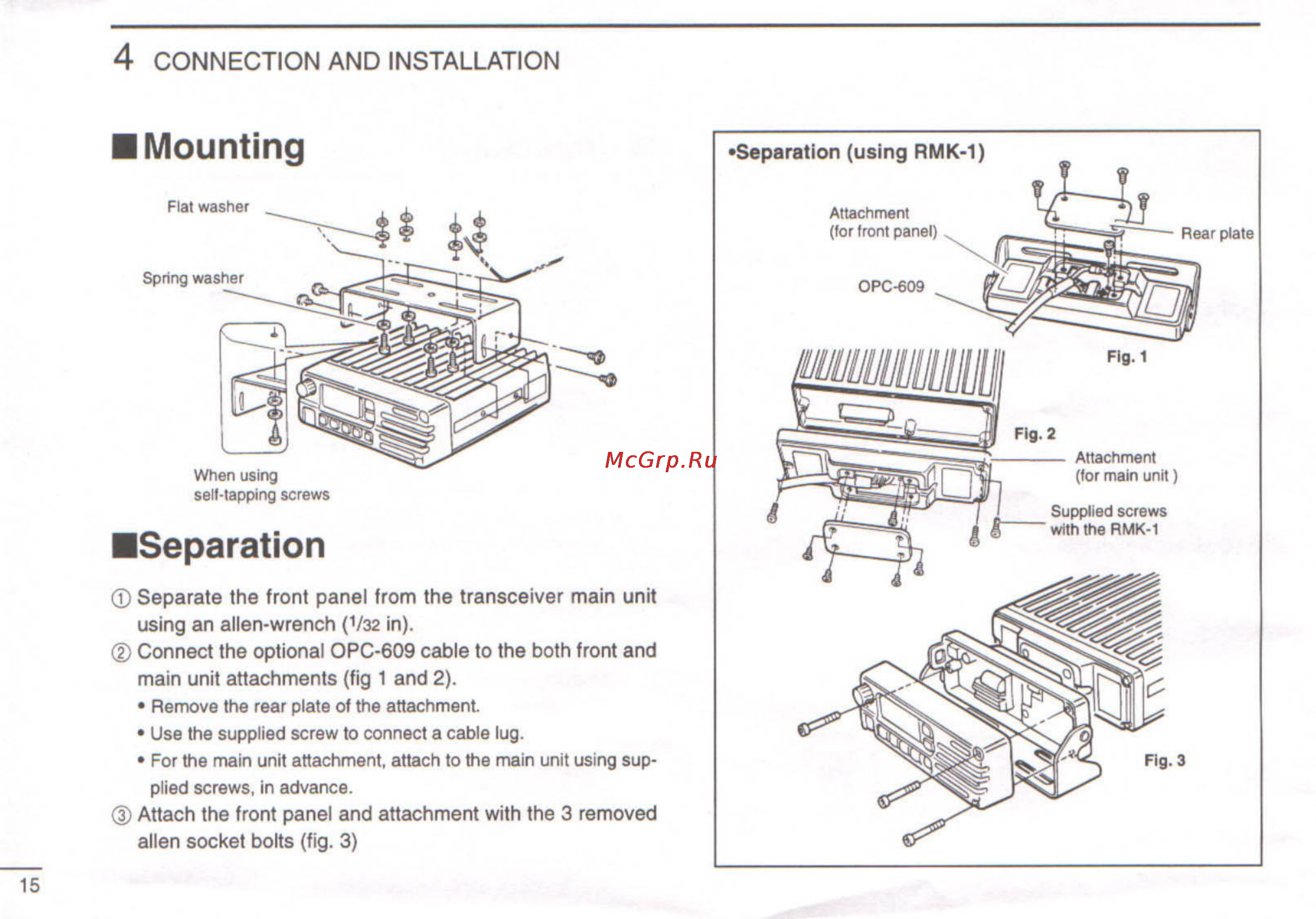

4 CONNECTION AND INSTALLATION Mounting Separation O Separate the front panel from the transceiver main unit using an alien wrench V32 in 2 Connect the optional OPC 609 cable to the both front and main unit attachments fig 1 and 2 Remove the rear plate of the attachment Use the supplied screw to connect a cable lug For the main unit attachment attach to the main unit using sup plied screws in advance 3 Attach the front panel and attachment with the 3 removed alien socket bolts fig 3
