10
2
PANEL DESCRIPTION

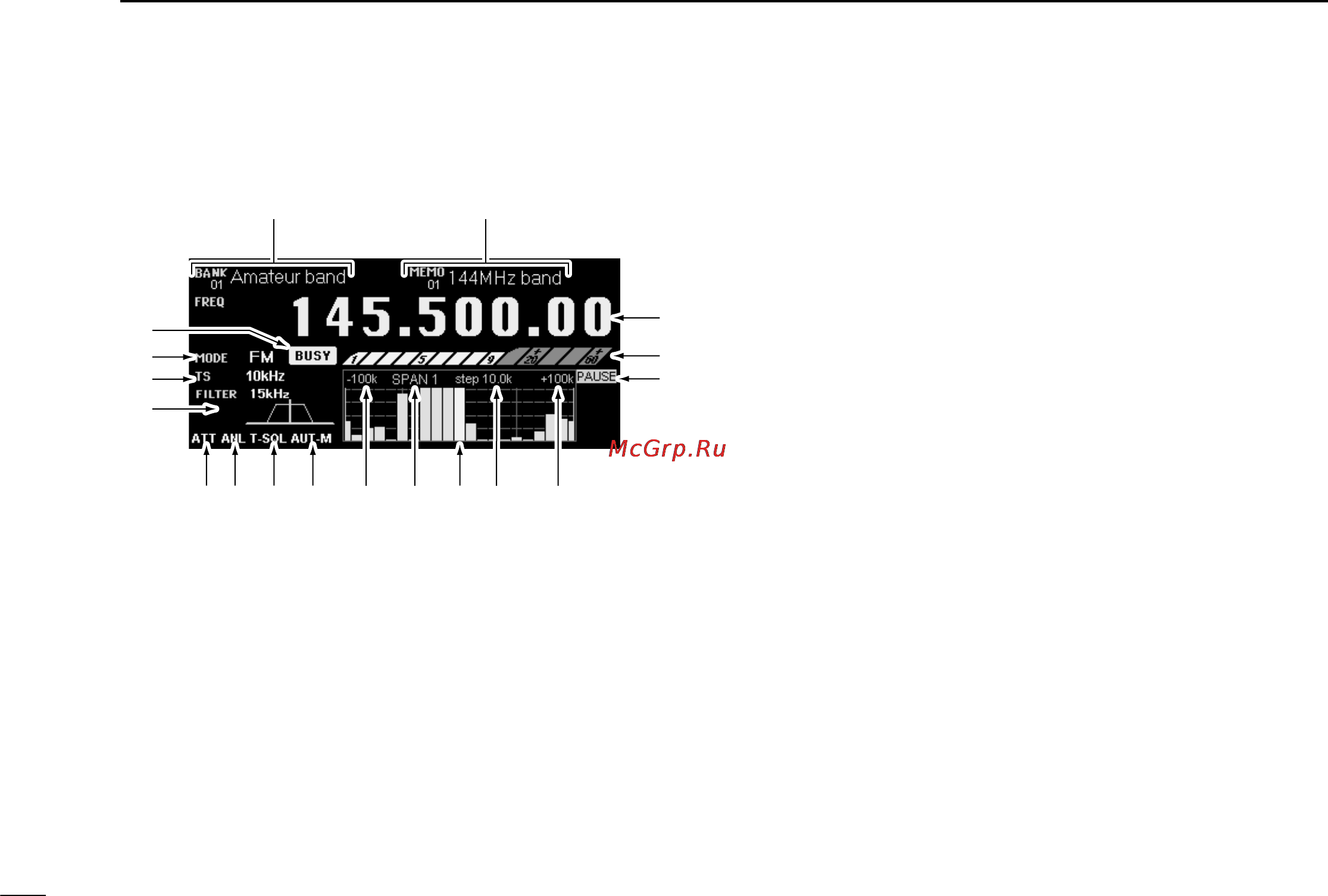

■ Function display
q MEMORY BANK INDICATOR (p. 23)
Indicates the memory bank number (and its name if it has
one) being received.
w MEMORY CHANNEL INDICATOR (p. 23)
Indicates the memory channel number (and its name if it
has one) being received.
•The name darkens when the receive frequency changes from the
stored one.
e FREQUENCY INDICATION (p. 17)
Indicates the receive frequency and data as it is being
input such as memory channel numbers, etc.
r S (SIGNAL) METER (pgs. 16, 20)
Indicates the receive signal strength. Also indicates the
S-meter squelch receive level set via the [SQUELCH] con-
trol.
t BAND SCOPE PAUSE INDICATOR [PAUSE] (p.34)
Appears when pausing the band scope.
y BUSY INDICATOR [BUSY]
Appears when receiving a signal or when signal noise
opens the squelch.
u RECEIVE MODE INDICATORS (p. 18)
Indicate the current receive mode.
•“WFM” lights in red when receiving a stereo broadcast program.
i TUNING STEP INDICATOR (p. 18)
This is the frequency increment used when selecting a fre-
quency using the tuning dial and when searching for sig-
nals using a scan function.
o IF FILTER INDICATOR (p. 20)
Indicates the selected IF filter and signal passband width.
!0 ATTENUATOR INDICATOR [ATT] (p. 21)
Appears when the attenuator function is on.
e
qw
!2 !3
!7!4 !4!5
!6
u
r
t
y
i
o
!0 !1
