Icom IC-PCR100 [19/44] I simple function receiver sub screens
![Icom IC-PCR100 [19/44] I simple function receiver sub screens](/views2/1074683/page19/bg13.png)
15
2
PANEL DESCRIPTION
•Information display
Double clicking the simple receiver also
toggles the information display on/off.
•Memory list screen
•Setting screen
•Band scoop screen
•Function controller screen
•Scan controller screen

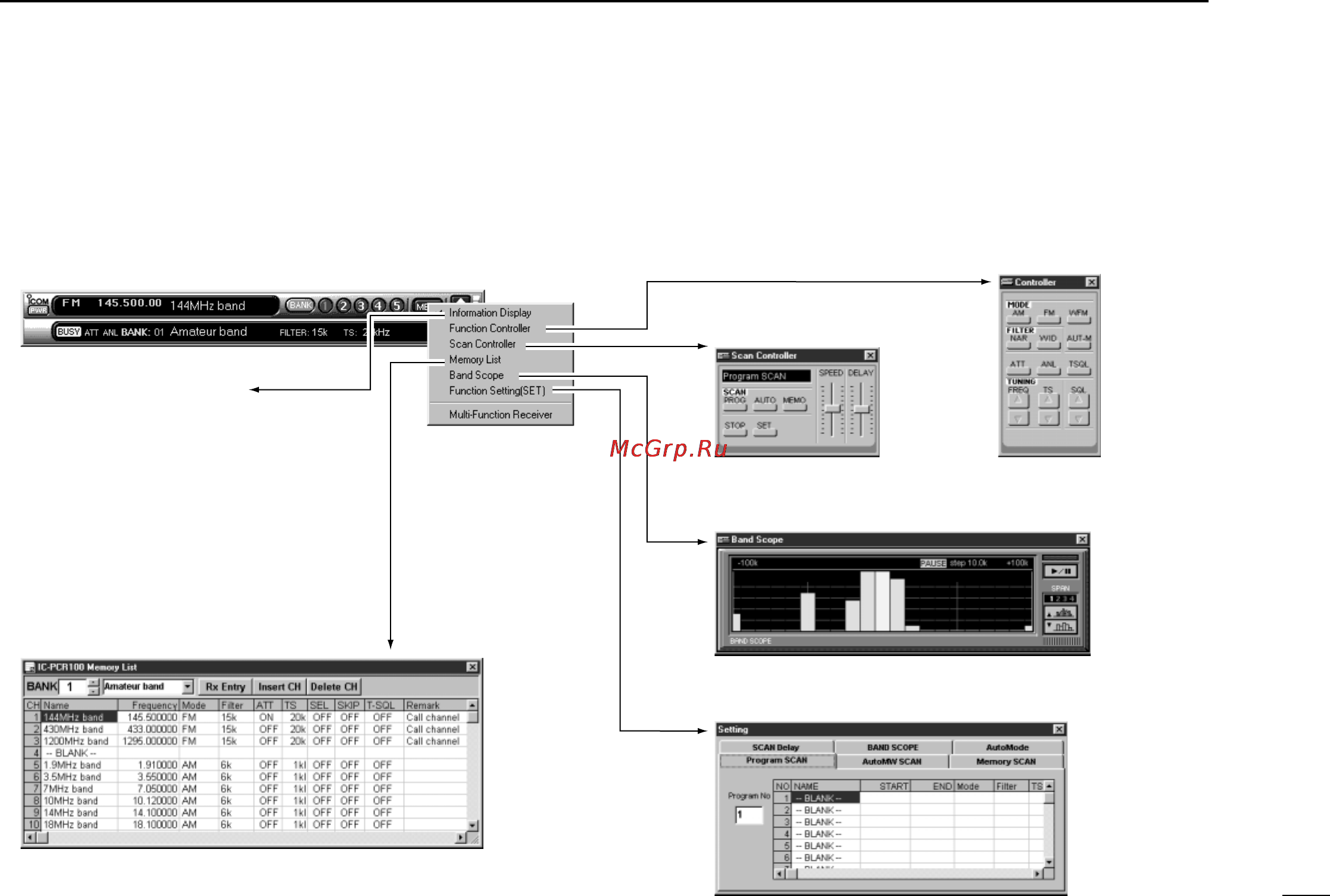

■ Simple function receiver sub screens
The simple function receiver screen has an information display and 5 sub
screens for saving desktop space and performing various operation.The follow-
ing sub screens are available.
