BASIC OPERATION
■ Attenuator function
Strong signals (such as from broadcast stations, pocket beep-
ers, nearby amateur radio stations, etc.) can cause distortion
of receive signals. The attenuator function can reduce signal
strength of interfering signals by approx. 20 dB.

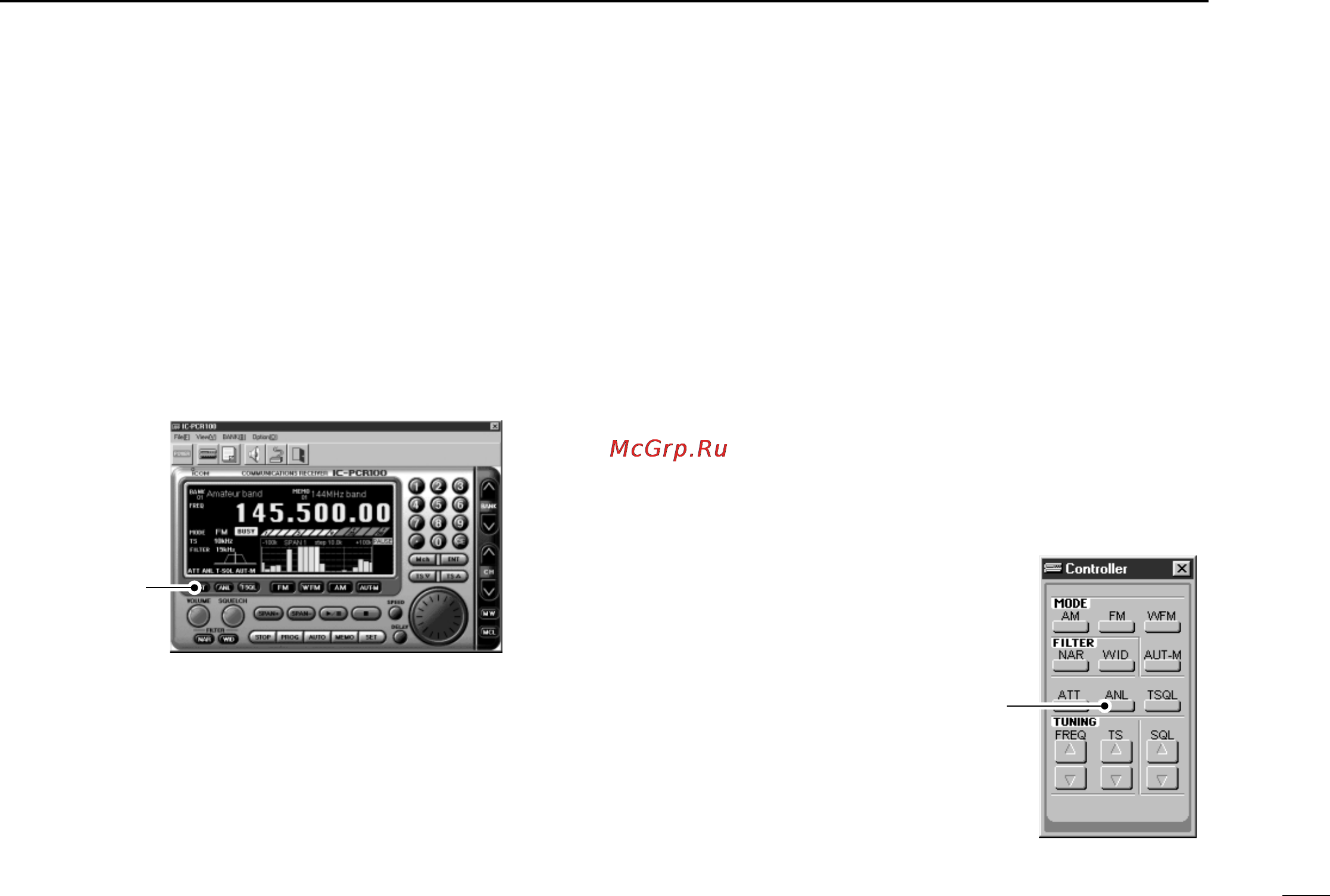

D Using the multi-function receiver screen
➥Click [ATT] to toggle the attenuator function ON and OFF.
•“ATT” appears in the function display.
D Using the simple function receiver screen
q Click [MENU] and select the ‘Function controller’ when it is
not displayed.
w Click [ATT] on the function controller to toggle the attenua-
tor function ON and OFF.
•“ATT” appears in the information display if the information display
is in use.
■ Automatic noise limiter
The automatic noise limiter removes noise components from
an AM signal.
D Using the multi-function receiver screen
➥Click [ANL] to toggle the automatic noise limiter ON and
OFF.
•“ANL” appears in the function display.
D Using the simple function receiver screen
q Click [MENU] and select the ‘Function controller’ when it is
not displayed.
w Click [ANL] on the function controller to toggle the auto-
matic noise limiter ON and OFF.
•“ANL” appears in the information
display if the information display
is in use.
