INSTALLATION
EN
• The cooktop must be set into a worktop between 20 mm and 50 mm deep.
• There must be nothing between the cooktop and the oven (cross rails, brackets, etc.).
• The distance between the lower face of the glass ceramic hob and the cupboard or separating
panel must be at least 20 mm.
• If the cooktop is to be installed next to a column unit, leave a distance of at least 100 mm from
the edge of the cooktop to the side of the column unit.
• For built-in dimensions and installation see the picture in this paragraph.
• A minimum distance must be maintained between the hob and the hood above it. Please refer to the
user manual of the hood for more informations.
• Apply the supplied gasket to the cooktop (unless it has already been tted), after having cleaned its surface.
• Do not install the cooktop near a dishwasher or washing machine, so that the electronic circuits do not come into contact with steam
or moisture, which could damage them.
• If an oven (from our range of ovens) is installed beneath the cooktop, make sure that it is equipped with a cooling system.If the temperature
of the electronic circuits exceeds the maximum permitted temperature, the cooktop will switch o automatically; in this case, wait for a few
minutes until the internal temperature of the electronic circuits reaches a tolerable level, at which point it will be possible to switch the hob on
again.

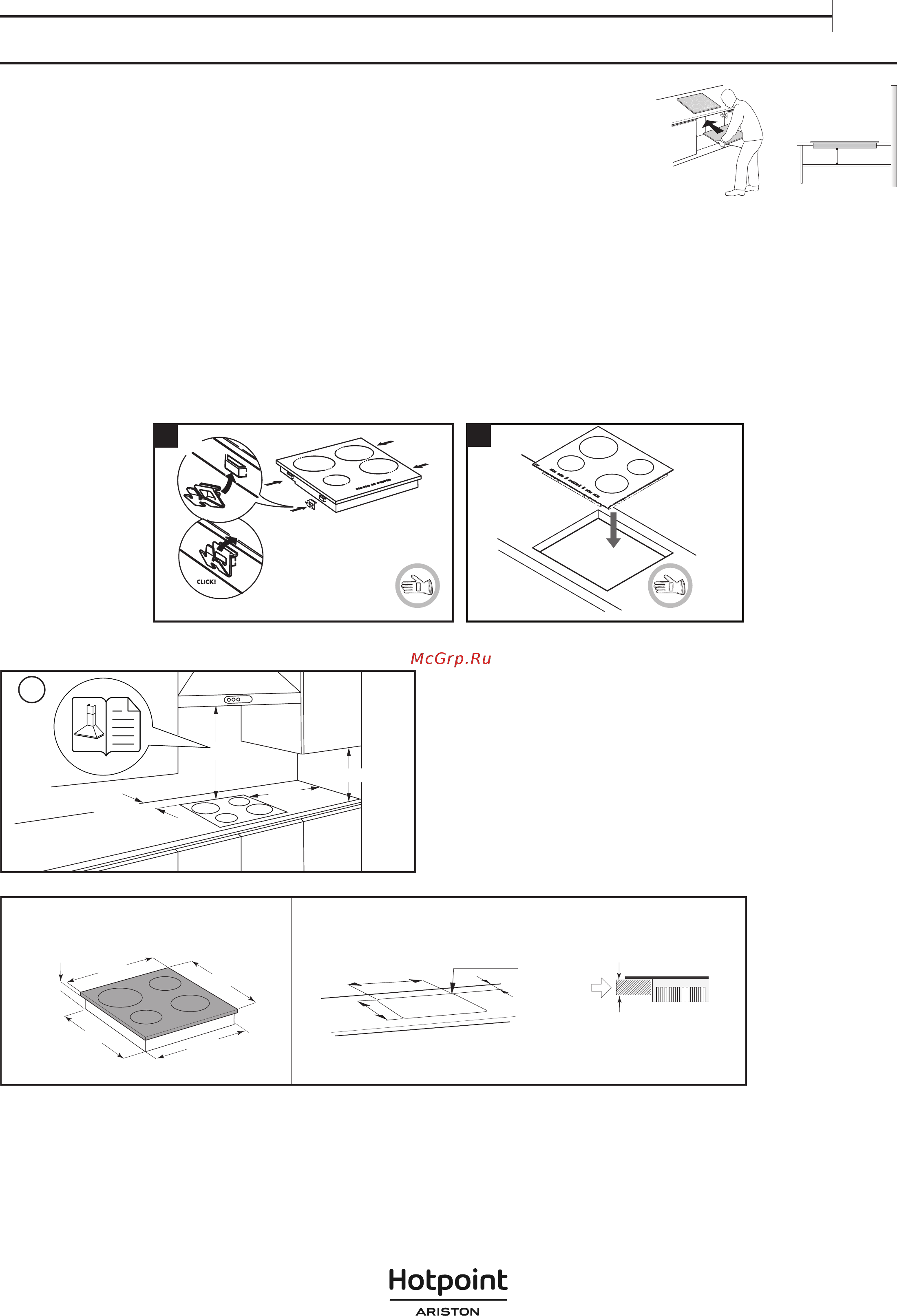

PLACING THE HOB
After the electrical connection (see the chapter “Electrical connection”).Position each xing clips on the dedicated slots on the lateral sides of the
hob as shown in the picture. Then push the hob inside the cut out and check that the glass is at and parallel to the worktop. The xing clips are
designed for every type of worktop material (wood, marble, etc).
4x
1
2
DIMENSIONS AND DISTANCES TO BE MAINTAINED
Min. 40 cm
L
Min. 7 cm
Min.10 cm
i
R = Min. 6,5 mm
Max. 8 mm
490 mm
560 mm
0
+2
0
+2
Min. 70 mm
min 20 mm
482 mm
552 mm
42/46 mm
510 mm
580 mm
580 X 510 mm
min. 20 mm
