PRODUCT DESCRIPTION

ELECTRICAL CONNECTION

Electrical connection must be made before connecting the appliance to the electricity supply.

Installation must be carried out by qualied personnel who know the current safety and installation regulations. Specically, installation must be

carried out in compliance with the regulations of the local electricity supply company.

Make sure the voltage specied on the data plate located on the bottom of the appliance is the same as that of the home.

Regulations require that the appliance be earthed: use conductors (including the earth conductor) of the appropriate size only.

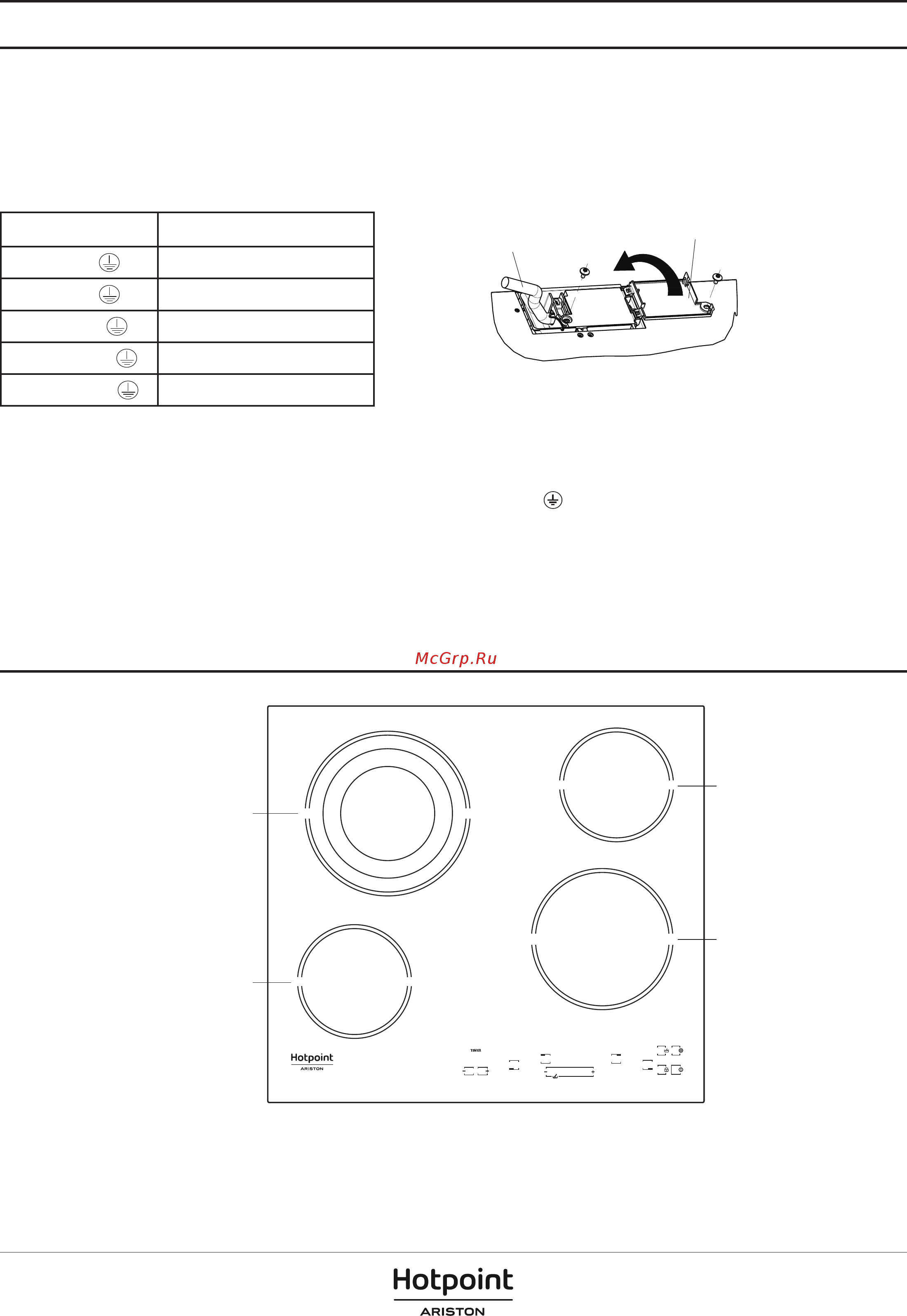

CONNECTION TO THE TERMINAL BLOCK

For the electrical connection, use an H05RR-F cable as specied in the table below.

2

220-240V 3~ +

4 x 1,5 mm

2

380-415V 3N~ +

5 x 1,5 mm

2

380-425V 2N~ +

4 x 1,5 mm

2

block as indicated in the connection diagram placed close to the terminal block itself.

• Secure the power supply cable (B) by means of the cable clamp.

• Close the terminal board with the cover (A) securing it with the screw provided.

• After the electrical connection, t the hob from the top and hook it to the support springs, according to the illustration.
