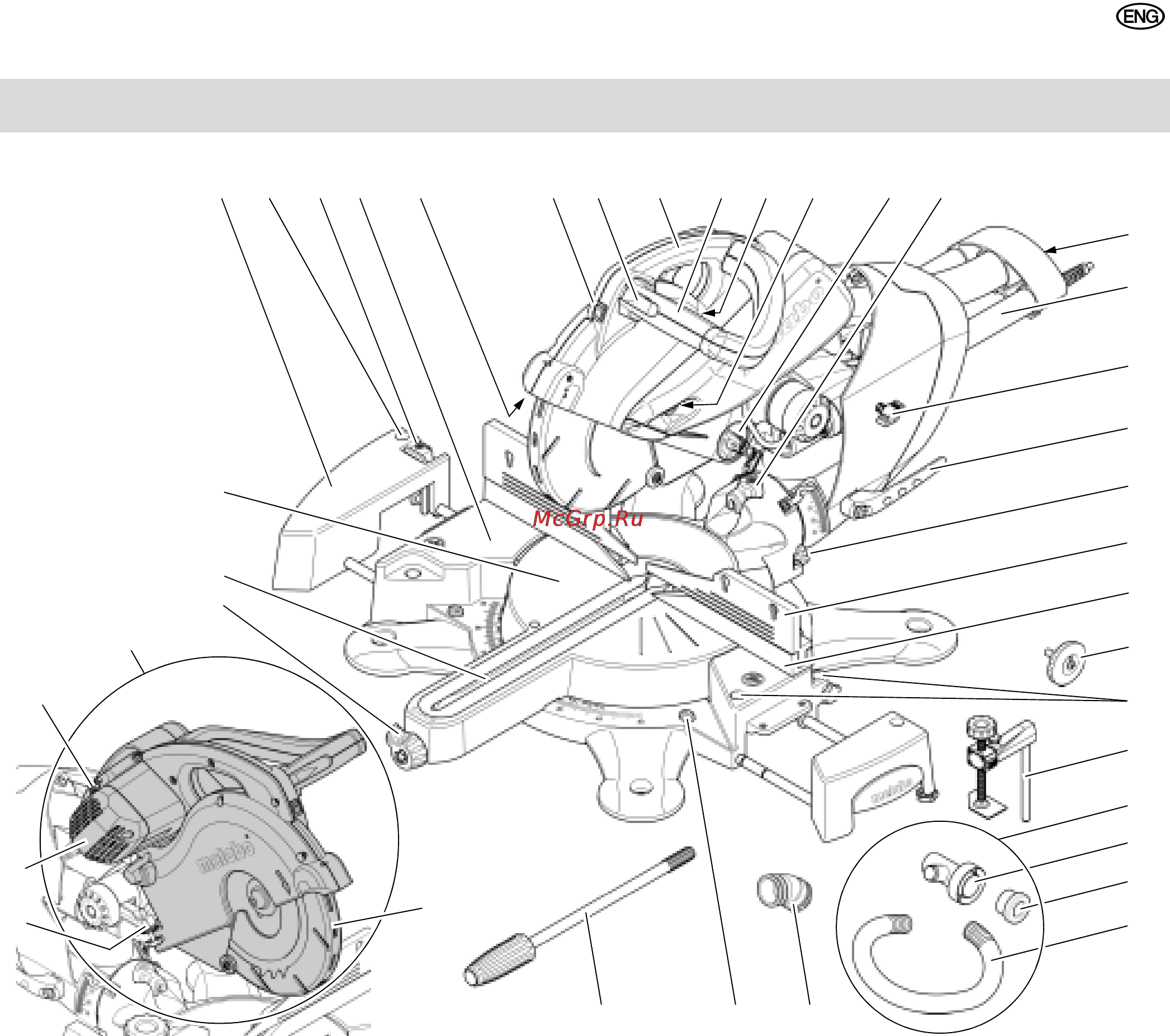

1. Parts Identification (standard delivery)
12 5 7 8
22
23
24
29
37
38
31
4
34
32
16
35
18
30
9
19
10 11
20
12 13
17
14
15
6
33
3
36
21
25
26
27
28
1 Table side extension
2 Stock stop fixture (accessory)
3 Tool storage for hex keys
(2.5m
m and 6mm)
4 Saw base (table)
5 Laser guide
6 ON/OFF switch for laser guide
7 Safety lock
8 Carrying handle
9 Handle
10 Saw ON/OFF switch
11 Saw blade lock
12 Transport locking pin
13 Notch lever for bevel tilt setting
14 Dust extraction port
15 Track arm guide bars
16 Track arm lock screw
17 Sawhead tilt lock lever
18 Tilt limiter
19 Movable fence halves
20 Rigid fence
21 Tool-less clamping module
22 Work clamp fixture
23 Work clamp
24 Dust extraction attachment
25 Dust spout adaptor 58/100
26 Dust spout adaptor 35/58
27 Corrugated hose
28 Dust spout adaptor 35/44
29 Locking button for table side
exten
sion
30 Rotary table lock screw
31 Rotary table notch lever
32 Table insert
33 Rotating table
34 Sawhead
35 Retractable blade guard
36 Cutting depth limiter
37 Motor
38 Speed control
Machine documents
Original operating instructions
Spare parts list
