17
Practical hints
Selecting the programme
This dishwasher offers you a wide range of wash programmes so that you can choose
the most suitable according to the type of dishes and how dirty they are.
Refer to the PROGRAMME LIST to choose the most suitable programme.
Useful hints
In order to avoid any dripping from the top rack, remove the lower rack first.
If the dishes are to be left in the machine for some time, leave the door ajar, to let
some air circulate and to improve the drying performance.
How to make SAVINGS
1) If you want the dishwasher to give a complete wash, place the dishes in the
dishwasher at the end of each meal and if necessary turn on the COLD PRE-WASH
cycle to soften the food remains and remove bigger particles of food from the new
load of dishes. When the dishwasher is full start the complete wash cycle programme.
2) If the dishes are not very dirty or if the baskets are not very full select an
ECONOMY programme, following the instructions in the program list.
How to get really good wash RESULTS
1) Place the dishes face downwards.
2) Try to place the dishes in such a way that they are not touching one another. If
they are loaded properly you will get better results.
3) Before placing the dishes in the dishwasher remove any remaining food (bones,
shells, pieces of meat or vegetables, coffee grounds, skin of fruit, cigarette ash etc.
that could clog up the outflow and the washing arm jets.
4) After loading the dishes check that the washing arms can rotate freely.
5) Pans and other dishes that have particularly stubborn food particles or remnants
of burnt food should be left to soak in water with dishwasher detergent.
6) To wash silver properly:
a) rinse the silver immediately after use, especially if it has been used for mayonnaise,
eggs, fish etc.
b) do not sprinkle detergent onto it
c) keep it separate from other metals
What to DO if
1) You want to stop the dishwasher to put in more dishes whilst it is in the middle of
a wash.
Open the door only after pressing the O/I button so that the dishwasher is in OFF.
After closing the door, wait 3 minutes before starting up the machine again.
What not to wash
It should also be remembered that not all dishes are suitable for washing in a
dishwasher.
We advise against using the dishwasher to wash items in thermoplastic, cutlery with
wooden or plastic handles, saucepans with wooden handles, items in aluminium,
crystal, leaded glass unless otherwise stated.
Certain decorations may fade. It is therefore a good idea before loading the whole
batch to wash just one of the items first so as to be sure that others like it will not fade.
It is also a good idea not to put silver cutlery with non-stainless steel handles into the
dishwasher as there could be a chemical reaction between them.
IMPORTANT
When buying new crockery or cutlery always make sure that they are suitable for
washing in a dishwasher.
16
The filter system (fig.A “4”) consists of:
a central container that traps the larger
particles.
a flat gauze that continuously filters the
wash water
a micro filter, located beneath the gauze,
that traps the tiniest particles ensuring a
perfect rinse.
To achieve excellent results every time, the
filters should be checked and cleaned after
each wash.

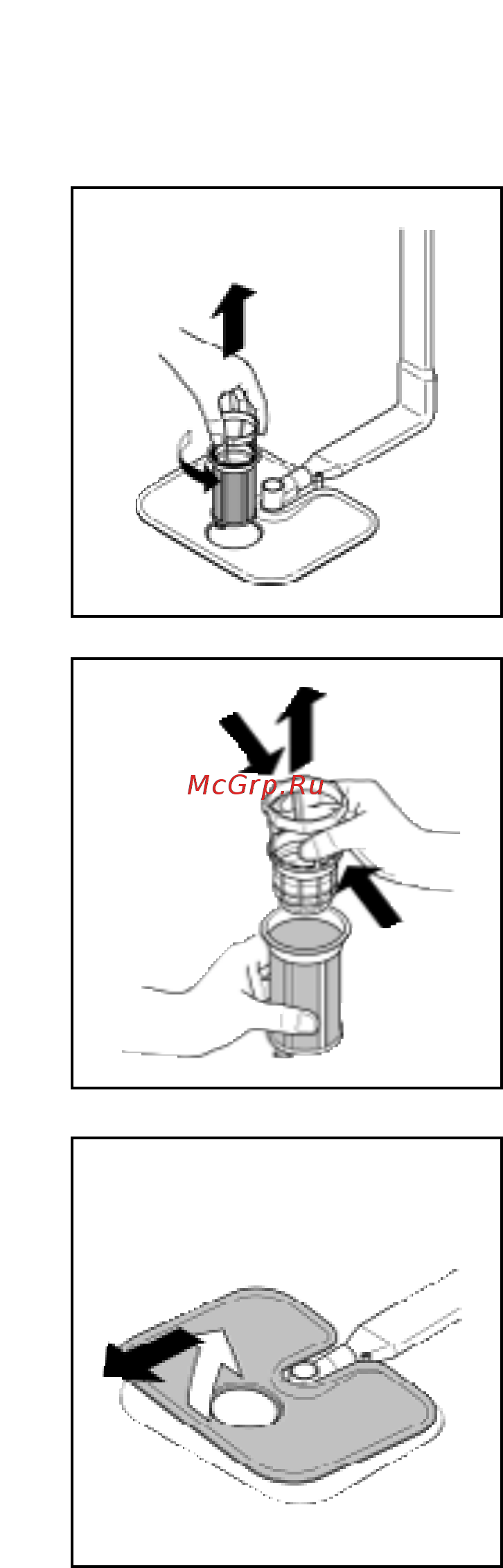

To remove the filter unit, simply turn the
handle anticlockwise (fig. 1).
For ease of cleaning, the central container is
removable (fig. 2).
Remove the gauze filter (fig.3) and wash the
whole unit under a jet of water. If necessary
a small brush can be used.
With the Self-cleaning Micro filter, mainte-
nance is reduced and the filter unit need only
be checked every two weeks. Nevertheless,
after each wash it is advisable to check that
the central container and the gauze filter are
not clogged.
NB: after cleaning the filters, make sure
that they are correctly reassembled and
that the gauze filter is properly positioned
at the bottom of the dishwasher.
Make sure that the filter is screwed back,
clockwise, into the gauze, as poor
seating of the filter unit could have an
adverse effect on the efficiency of the
appliance.
Warning: never use the dishwasher
without the filters.
Cleaning the filters
1
2
3
