27
• The side and rear walls are clear, and
there is nothing resting on the appliance.
• Note: The cooling gas in the
refrigerator may make a slight bubbling
or gurgling noise, even when the
compressor is not running.
If the appliance is beeping, check:
• That the doors are closed. An alarm will
sound after 60 seconds of a door being
open.
If there’s water in the base of the
refrigerator compartment, check:
• The drain hole at the back of the
compartment is clear.
If ice has formed on the back wall of the
fridge:
• It is normal for some ice droplets to
form on the back wall of the fridge. This
does not constitute a fault with the
appliance.
• Ensure that no items inside the fridge
are in contact with the back wall.
• Check that there is some resistance
when opening the door of the appliance.
If it opens at the slightest touch it may
mean that the door seal needs to be
replaced.
• Check the door seal for any kinks,
debris or damage. If you notice any, and
are unable to resolve the issue yourself,
contact Customer Care so that the seal
can be replaced.
• This can be due to the decor door(s)
not being properly fitted. If you are at all
unsure, ask your fitter to check the decor
doors.
If excessive ice has formed in the
freezer:
• Check that there is some resistance
when opening the door of the appliance.
If it opens at the slightest touch it may
mean that the door seal needs to be
replaced.
• Check the door seal for any kinks,
debris or damage. If you notice any, and
are unable to resolve the issue yourself,
contact Cus- tomer Care so that the seal
can be replaced.
• This can be due to the decor door(s)
not being properly fitted. If you are at all
unsure, ask your fitter to check the decor
doors.

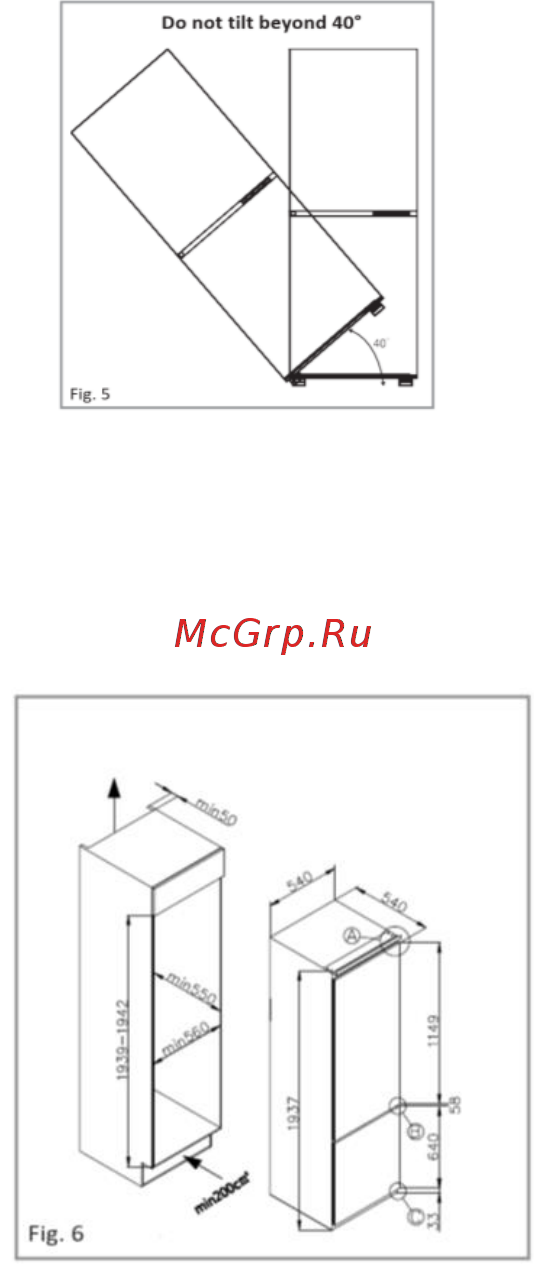

Installation
This appliance must never be installed
close to heat sources, e.g. heating
elements or cookers, nor in damp places.
Seek the help of another individual, or
two, when installing this appliance. This
appliance may have sharp edges. Wear
adequate PPE for the task and
environment.
• To ensure the appliance is level, you
should use the height adjustable feet at
the front of the appliance.
