Guide Existing models:
P.3 ~ 4
Outdoor units:
P.25 ~ 26
Options:
P.36 ~ 37
Outer dimension drawings:
P.38 ~ 45
Remote controllers:
P.27 ~ 28
Standard specifications:
P.34
Guide Line up
P. 3–4, 7–8
Outdoor units
P. 33–34
Options
P. 58
Outer dimension drawings
P. 63
Remote controllers
P. 35–36
Standard specifications
P. 42, 52
Note: For optimal installation, space factors should be
accurately calculated.

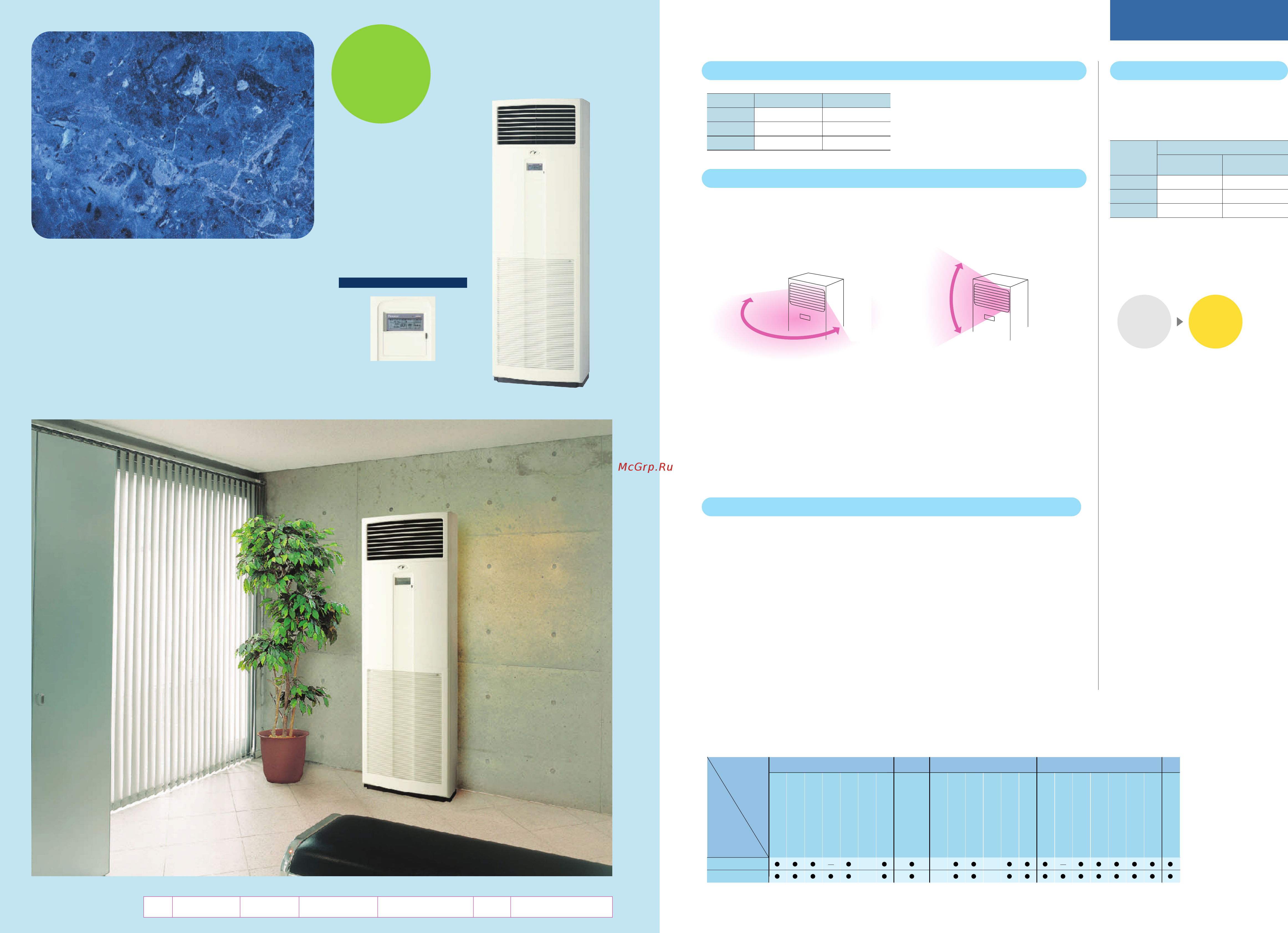

FLOOR STANDING TYPE
A good choice for spaces with
ceilings so high that heating by
ceiling-mounted units is inefficient.
Vertical airflow adjustment is possible when
(changing between cooling and heating or) to
match interior spaces and partitions.
Auto-swing
Manual setting of vertical airflow louvers
71LA
41 35
Quiet operation Easier to install and service
Lightweight
Indoor unit High Low
125LA
49 43
100LA
46 40
The unit can be easily transported and
installed.
Auto-swing delivers comfort to every corner of the room
FVY units have swinging louver spreads comfortable airflow. Any uncomfortable
sensation of sudden change is avoided by a slow cycle of 2 to 3 full swings per
minute.
Switchable fan speed: High/Low
Long-life filter lasts about 1 year *
Maintenance not required
*For dust concentration of 0.15 mg/m
3
Dehumidification is microprocessor con-
trolled to prevent abrupt and uncomfort-
able changes in air temperature.
Low gas pressure detection
Insufficient gas charging is normally
hard to detect. During post-installation
trials and regular inspection procedures,
the refrigerant level is monitored by
microprocessor to maintain proper gas
pressure.
The floor-standing
configuration means
the FVY is easy to install
and maintain.
It can also be installed
under high ceilings.
Easy-to-operate, handy LCD control panel
The LCD displays text, numbers and graphics to indicate the temperature setting,
timer setting, auto-swing, fan speed, and more. Furthermore, the LCD panel can
be detached and used as a remote controller, so air conditioning can be controlled
from another room or from the cash register.
(Remote controller cable not included. Cables must be procured locally.)
Programme "Dry"
25 26
Note: This remote c ontroller has a temperature-
sens or.
71 class
45
kg
39
kg
Indoor unit
Conventional
FVY-F
New model
125 class
67
kg
47
kg
100 class
63
kg
46
kg
Weight
Two selectable temperature-sensors
Temperature-sensors on both indoor unit and wired remote controller.
Temperature sensing can be set closer to the target area to further improve
comfort level.
2 weeks Annual
Conventional
filter
Long-life filter
Filter exchange interval
LCD control panel is standard
FLOOR STANDING
TYPE
FVY
FVY71LAVE–125LAVECooling only
FVY71LAVE–125LAVEHeat pump
Mould
prevention
Comfort Work & Servicing Control features
Others
Features (Features are explained on P. 37–38.)
Feature
Model
Heat pump
Cooling only
*
1
Applicable to R 71LU– R125LU outdoor units (for temp. down to – 15°C ) (An option is required.)
*
2
Applicable to R Y71L U– R Y125LU outdoor units (for temp. down to – 5°C )
*
3
Applicable to R (Y)71LU– 125L U outdoor units
*3
*3
*3
*3
*2
*1
S witc hable fan s peed
Auto swing
Programme "Dry"
Hot start
Two s electable
temperature-s ens ors
Year-round c ooling
applicable
Timer selec tor
Pre charged for
up to 30 m
Long-life filter
Mould res is tant
treatment for filter
Filter sign
Low gas pres s ure
detec tion
E mergenc y operation
S elf-diagnosis function
C ontrol by 2 remote
controllers
Auto-cooling/heating
change-over
Auto-res tart
C ontrol by 1 remote
controller
E xternal command
control
C entral remote control
Interloc k control
PE fin
*
Temperature-s ens or on indoor unit must be us ed when the air conditioner is controlled from another room.
**Wireles s remote controller does not have a temperature-s ens or.
Note : Anechoic chamber c onvers ion value,
measured ac cording to J IS parameters and
41
/
35
dB(A)
FVY71LA
High Low
Sound level
dB(A)
