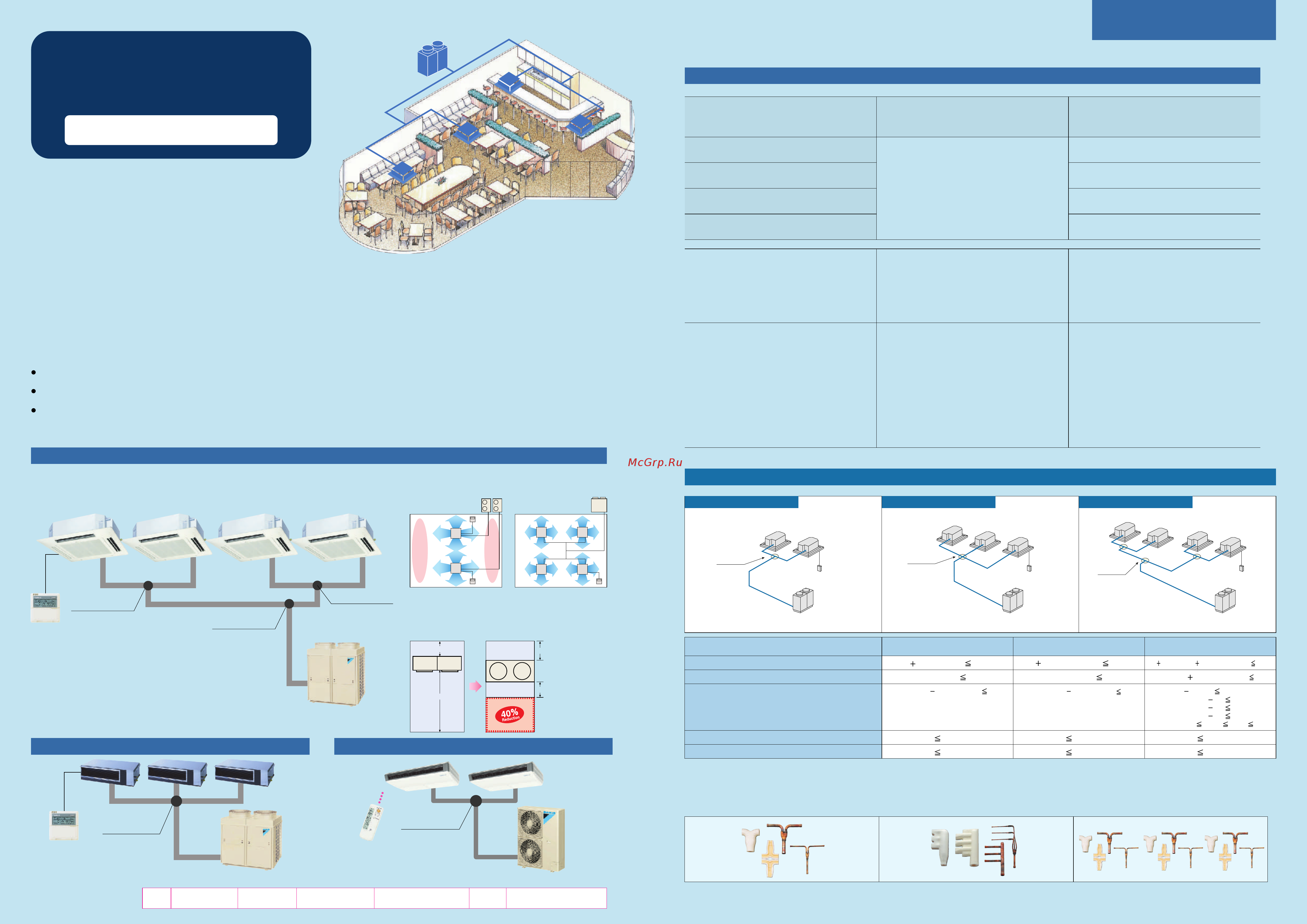

MULTI SERIES
MULTI SERIES
Twin, Triple, and Double Twin Multi-Operation
Simultaneous operation system
Note: This type of system does not allow individual control or independent operation of indoor
units. It is not the best choice for large rooms with partitions.
In a single-floor restaurant, for example, positioning 4 units at
strategic locations realises comfortable airflow that reaches
every inch of the room.
Double Twin Multi operation
4 indoor units can be run simultaneously
with a single outdoor unit.
Improved comfort level and space-saving
for outdoor unit installation
Required about 40% less installation space
for outdoor unit
4 indoor units distribute comfortable airflow
throughout the room.
Simultaneous operation of four indoor units
can be controlled from a single remote controller.
Requires a single refrigerant piping system.
Triple Multi operation Twin Multi operation
Indoor units include ceiling mounted cassette type, ceiling suspended type, and duct connection middle and low static pressure type.
Before
5 HP
x
2 units
R(Y)125KU
x
2 units
10 HP double twin multi operation
R
(Y)
200KU or R
(Y)
250KU
x
1 unit
New
Before New
Installing multiple units is economical and realises comfort
Lower cost of installation than for individual pair type
Reduced installation space for outdoor units
Enhanced comfort from distributed indoor units
Branch piping kit
Branch piping kit
Branch piping kit
Branch piping kit
Branch piping kit
In large interior spaces a single indoor unit
may not be able to provide uniform comfort.
Installation of 2 to 4 units, can provide an
effective solution.
Dead zone
Dead zone
31
500
mm
300
mm
300
mm
1000
mm
Simultaneous operation system
Remote controllers for the Multi Series
Simultaneously operates
2 to 4 indoor units using
a single outdoor unit.
32
(Branch piping kits are sold separately. Please use the model indicated on page 59)
Refrigerant piping uses terminal branching to facilitate installation.
Main pipe
Remote
controller
Outdoor unit
Branch
piping kit
Sub
unit
Main
unit
L
L2
L1
Piping Guideline
Main pipe
Remote
controller
Outdoor unit
Branch
piping kit
Sub
unit
Main
unit
L
L3
L2
Sub
unit
L1
Sub
unit
Sub
unit
Main pipe
Remote
controller
Outdoor unit
Branch
piping kit
Sub
unit
Main
unit
L
L6
L5
L4
L3
L1
L2
Max. branch piping length
*
1
Max. (L1, L2) means maximum length out of L1 and L2.
*
2
Min. (L1, L2) means minimum length out of L1 and L2.
Max. (L1, L2)*
1
20 m
Simultaneous operation system
Max. level difference between outdoor unit and indoor units
Max. (L1, L2 , L3) 20 m
Max. (L
1
, L
2
) Max. (L
3
, L
4
, L
5
, L
6
) 20 m
30 m 30 m 30 m
Max. level difference between indoor units
0.5 m 0.5 m 0.5 m
Max. piping length
L Max. (L1, L2) 50 m L Max. (L1, L2, L3) 50 m
L Max. (L
1
, L
2
) Max. (L
3
, L
4
, L
5
, L
6
) 50 m
Max. branch pipe length difference
Max. (L
1
, L
2
) Min. (L
1
, L
2
)
*
2
10 m
L2 L1 10 m
L4 L3 10 m
L6 L5 10 m
(L
2
L
6
) (L
1
L
3
)
10 m
Max. (L
1
, L
2
, L
3
) Min. (L
1
, L
2
, L
3
) 10 m
Double Twin Multi Operation
Twin Multi Operation
Twin Multi Operation Triple Multi Operation Double Twin Multi Operation
Triple Multi Operation
In case of L1 L2, L3 L4, L5 L6
Guide Line up
P. 5–6, 9–10
Outdoor units
P. 33–34
Options
P. 57–59
Outer dimension drawings
P. 60–74
Remote controllers
P. 35–36
Standard specifications
P. 46–48, 54–56
(For Triple Multi)(For Twin Multi) (For Double Twin Multi)
(Option)
Connect the wired remote controller
to turn an indoor unit into the master
unit.
Install the signal receiver unit (part
of the optional wireless remote
controller) to turn an indoor unit into
the master unit.
Wired remote controller has a
temperature-sensor. Depending on
the installation conditions, select
and set the temperature-sensor of a
selected indoor unit or the temperature-
sensor of the remote controller.
Because the wireless remote
controller does not have a
temperature-sensor, select the
temperature-sensor of the indoor
master unit.
Wired LCD remote controller
BRC1C61
Wireless LCD remote controller
CEILING MOUNTED
CASSETTE TYPE
A single remote controller
controls simultaneous
operation of multiple indoor units.
Supports Two selectable
temperature-sensor functions.
Note: An indoor unit's temperature-sensor must
be used when the air conditioners
are controlled from another room.
INDOOR UNIT
(Option)
CEILING SUSPENDED TYPE
DUCT CONNECTION
LOW STATIC PRESSURE TYPE
Note: Selectable temperature sensing is available
with ceiling-mounted cassette and ceiling-
suspended models, but not with middle static-
pressure models.
DUCT CONNECTION
MIDDLE STATIC PRESSURE TYPE
BRC7C612W
Cooling only
BRC7C613W
Heat pump
BRC7E63W
Cooling only
BRC7EA66
Heat pump
Heat pump
BRC4C62
BRC4C62
Cooling only
BRC4C64
Heat pump
