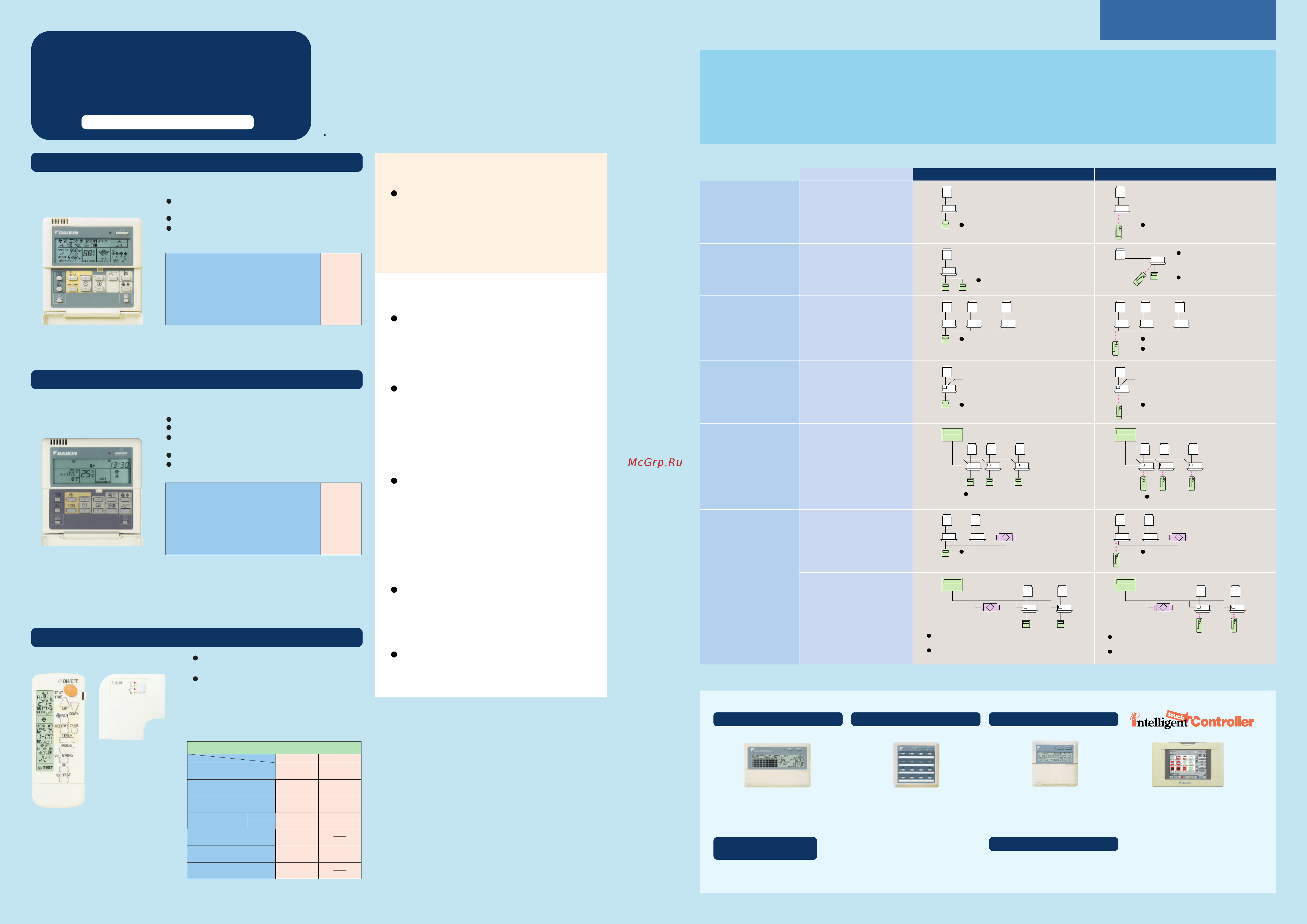

LCD REMOTE CONTROLLER
Remote controller options are shown on the page introducing each indoor unit model.
Wireless LCD remote controller
The wireless remote controller is supplied in a set
with a signal receiver.
Shape of signal receiver unit differs according to
the indoor unit.
Note: The s ignal rec eiver unit shown in the
photograph is for mounting inside the
dec oration panel of the ceiling mounted
cass ette type.
N o n-p o la r, do u bl e -c o r e c o n ne c tio n
s pe c ific a tio n s s i m plif y w ir in g
S k y A ir s ha re s c o m m o n c on tr o l w it h
H R V ( he a t r e c la im v e n t i la tio n ) a nd
th e o t he r D a ik in a ir -c on dit io ni n g
un it s , th u s s im p lify i ng int e r lo c k in g
o p e r a tio n s .
Easily adaptable to large-scale, high-
function, centralised remote control systems.
Installing and connecting control wiring between
Sky
A
ir and other Daikin air-conditioning
equipment is easy.
Optional adaptor for external commands or
remote control of external equipment has
been standardised to one type.
F a c ilit a te s m a in te na n c e a nd r e pa ir
Non-polar, double-core remote controller
wire prevents wiring mistakes. signal
receiver unit (or decoration panel) of
wireless type is also easy to connect.
All initial settings can be set from the remote
controller. After interior construction is
complete, ceiling mounted units can be
remotely set without having to use stepladder
access for manual setting.
Setting contents: High ceiling use, air direction, filter type,
address for centralised control (group control address is
set automatically).
Remote controller is equipped with model name
and failure display functions. This facilitates
service in the unlikely event of a malfunction.
Signal receiver unit
(For ceiling mounted
cassette type)
Wireless remote controller
Note: When a wireles s remote controller is used, remote control by two remote controllers is not pos s ible.
L C D pa ne l s h o w s o pe r a ti n g s t a tu s in le tt e r s , n u m be r s , a nd m ot i o n .
Airflow / swing display Displays auto-swing operating status and setting position of air discharge angle.
(Not available for ceiling mounted built-in type and duct connection type )
Preset temperature / operation mode display
Displays preset room temperature and operating status (fan, dry, cool).
Programming time display
Operation start and stop time can be set for individual timers up to 72 hours. The liquid crystal display also shows
when it is time to clean the filter, when changeover is under centralised control, and ventilation/cleaning.
Self-diagnosis function
Monitors operating status within the system covering 40 items, and displays a message to indicate as soon as a malfunction occurs.
LCD REMOTE
CONTROLLERS
signal receiver mounted type
For easier operation, louver switches, which are frequently
used, have been made larger.
Oil-resistant plastic casing.
Only 17 mm thick. Can be installed either recessed or
e
xposed.
W ir e d r e m ote c o n tr o l le r h a s bu i lt -in
te m pe ra t u r e -s e n s o r
(Applies to wired remote controllers)
Enables temperature sensing closer to target
area for improved comfort. (When using remote
control from another room, temperature-sensor
in indoor unit's air inlet must be selected.)
Note: The indoor unit’s temperature-sensor is specified at the time of
shipment. Temperature sensing with the wired remote controller is not
available with the ceiling mounted cassette corner, ceiling-mounted
built-in, and duct connection type.
Easier to read because LCD screen is larger.
35 36
Wired LCD remote controller
*1.
When the auto-swing function is not available, the message,
THIS FUNCTION IS NOT AVAILABLE is displayed when
the wind direction adjustment button is pressed.
*2.
Applicable to only heat pump type.
C e n tr a l r e m o te c o nt r o l l e r
Easily adaptable to large-scale, high-function, centralised remote control system.
Centralised control, with setting as
simple as it is with a standard
remote controller, of up to 64 groups
(1,024 indoor units) is possible.
DCS302CA61 (Option)
With its high functionality, the full
color “all-in-one” graphic controller
facilitates management of Skyair
System in a variety of ways.
DCS601C51 (Option)
U ni fie d o n/o ff c o n t ro lle r
Centralised control of on/off by
group or all at once for up to 256
indoor units.
DCS301BA61 (Option)
S c h e du l e tim e r
Unified control of weekly schedule
for up to 1,024 indoor units.
DST301BA61 (Option)
Indoor units applicable for the remote controller
S im ple s y s t e m pr ov i d e s a div e r s e a s s or tm e nt of c o n t r o l m o de s .
Interface adaptor
for SkyAir series
Enables centralised control via connection to
a high-speed, DIII-NET communication
system, adopted for the Daikin VRV system.
Necessary for interface adaptor for SkyAir series with the
central remote control units shown at above.
DTA102A52 (Option)
Central control adaptor kit
*2
DTA107A55 (Option)
Schedule timer sets on/off time in 1 minute units
to be executed twice a day for a week at a time.
BRC1C61
CEILING MOUNTED CASSETTE TYPE
CEILING SUSPENDED TYPE
CEILING SUSPENDED CASSETTE TYPE
CEILING MOUNTED CASSETTE CORNER TYPE
WALL MOUNTED TYPE
CEILING MOUNTED BUILT-IN TYPE
*1
DUCT CONNECTION LOW STATIC PRESSURE TYPE
*2
DUCT CONNECTION MIDDLE STATIC PRESSURE TYPE
DUCT CONNECTION HIGH STATIC PRESSURE TYPE
*2
*1.
When the auto-swing function is not available, the message,
THIS FUNCTION IS NOT AVAILABLE is displayed when
the wind direction adjustment button is pressed.
*2.
Applicable to only heat pump type.
•Standard remote controller (BRC1C61) is not required.
•If the BRC1D61 is connected to the centralised remote controller,
the schedule function is not available.
Indoor units applicable for the remote controller
BRC1D61
CEILING MOUNTED CASSETTE TYPE
CEILING SUSPENDED TYPE
CEILING SUSPENDED CASSETTE TYPE
CEILING MOUNTED CASSETTE CORNER TYPE
WALL MOUNTED TYPE
CEILING MOUNTED BUILT-IN TYPE
*1
DUCT CONNECTION LOW STATIC PRESSURE TYPE
*2
DUCT CONNECTION MIDDLE STATIC PRESSURE TYPE
DUCT CONNECTION HIGH STATIC PRESSURE TYPE
*2
BRC1C61
24-hour clock function (1-hour backup for power failures)
Programming function for each day of week.
Scheduling possible of start/stop and temperature limit (5
s
ettings/day)
Programming can be enabled or disabled.
Copy function for programmed schedules.
Remote control is equipped with weekly timer function.
Wired LCD remote controller with weekly schedule timer
BRC1D61
Indoor units applicable for the remote controller
Signal receiver unit is contained inside decoration panel or indoor unit
CEILING MOUNTED
CASSETTE TYPE
DUCT CONNECTION
LOW STATIC PRESSURE TYPE
DUCT CONNECTION
MIDDLE STATIC PRESSURE TYPE
DUCT CONNECTION
HIGH STATIC PRESSURE TYPE
WALL MOUNTED TYPE
CEILING SUSPENDED
CASSETTE TYPE
BRC7C612W BRC7C613W
BRC7E63W BRC7EA66
BRC7C528W BRC7C529W
BRC7EA618 BRC7E619
BRC7C610W
FAY71L
FAY100FA
BRC7C611W
BRC4C62
BRC4C62 BRC4C64
BRC4C62
CEILING SUSPENDED TYPE
Heat pump Cooling only
Necessary optional accessory
Control by 1
remote controller
Control pattern Wired remote controller Wireless remote controller
Control by 2
remote controllers
Group control
Control by
external command
Centralised remote
control
Interlock control
with HRV
(Basic system)
Link by remote
controller group control.
Zone link control by
centralised control.
For control from 2
locations such as in
room and control room,
exits, etc.
For simultaneous
control of up to 16
indoor units.
Centralised control of
up to 64 indoor groups
from remote location
up to 1 kilometer away.
C ontrol by 1 wireles s remote
controller and 1 wired remote
controller (S ee note 1)
S ignal rec eiver unit ins talled
on indoor unit
Automatic addres s s etting func tion
S ignal rec eiver unit ins talled
on 1 indoor unit
S ignal rec eiver unit ins talled
on indoor unit
Optional wiring adaptor for
electrical appendic es is nec essary
Optional S kyAir series interfac e
adaptor required.
*1
C an be operated s imultaneous ly
by remote c ontroller
(set by ventilation mode)
HR V for indoor units within a zone are operated
by interlocking
Optional interfac e adaptor for S kyAir series
is nec essary
*1
(C ommand from outside)
C entral remote controller (option)
C entral remote controller (option)
HR V
Non-polar, double-c ore
(max. wiring length 500 m)
C onnec ts 2 wired
remote c ontrollers
Automatic addres s s etting func tion
Optional S kyAir series interfac e
adaptor required.
*1
C an be operated s imultaneous ly
or independently by remote c ontroller
(s et by ventilation mode)
HR V for indoor units within a zone are operated by interloc king
C an als o be operated independently by remote c ontroller.
Optional interfac e adaptor for S kyAir series
is nec essary
*1
(C ommand from outside)
C entral remote controller (option)
C entral remote controller (option)
HR V
HR V HR V
Note : DIII-net adaptor function is standard equipment for the FAY71L.
Operation and surveillance is
carried out using the contact
signal from the operation
control box in the building
surveillance (security) room.
*Please refer to the page 59 for the details.
(for FD series)
*2.The central control adaptor kit for FDB series
can be made to order.
*1. DIII-net adaptor function is standard equipment for the FAY71L.
Optional wiring adaptor for
electrical appendic es is nec essary
Easy-to-read LCD remote
controller allows various system
control configurations and can
control multiple indoor units.
Содержание
- Air conditioners should not be installed in areas where corrosive gases such as acid gas or alkaline gas are produced 2 if the outdoor unit is to be installed close to the sea shore direct exposure to the sea breeze should be avoided if you need to install the outdoor unit close to the sea shore contact your local distributor 1
- Air conditioning system 1
- Ask a qualified installer or contractor to install this product do not try to install the product yourself improper installation can result in water or refrigerant leakage electrical shock fire or explosion 1
- Cautions on product corrosion 1
- Daikin industries ltd s products are manufactured for export to numerous countries throughout the world daikin industries ltd does not have control over which products are exported to and used in a particular country prior to purchase please therefore confirm with your local authorised importer distributor and or retailer whether this product conforms to the applicable standards and is suitable for use in the region where the product will be used this statement does not purport to exclude restrict or modify the application of any local legislation 1
- Dealer 1
- Http www daikin com global_ac 1
- If you have any enquiries please contact your local importer distributor and or retailer 1
- Jmi 0107 jqa 1452 1
- O m fort 1
- R e a tion of 1
- Read the user s manual carefully before using this product the user s manual provides important safety instructions and warnings be sure to follow these instructions and warnings 1
- Use only those parts and accessories supplied or specified by daikin ask a qualified installer or contractor to install those parts and accessories use of unauthorised parts and accessories or improper installation of parts and accessories can result in water or refrigerant leakage electrical shock fire or explosion 1
- Warning 1
- Capacity 3
- Ceiling mounted built in type 3
- Ceiling mounted cassette type 3
- Cooling only 3
- Floor standing type 3
- High static pressure type 3
- Low static pressure type 3
- Middle static pressure type 3
- Outdoor unit 3
- Wall mounted type 3
- Capacity 4
- Cooling only 4
- Outdoor unit 4
- Page 31 32 4
- Page 33 34 4
- Simultaneously running 2 to 4 units distributes comfort across wide spaces 4
- Twin multi operation 4
- Capacity 5
- Ceiling mounted built in type 5
- Ceiling mounted cassette corner type 5
- Ceiling mounted cassette type 5
- Ceiling suspended cassette type 5
- Ceiling suspended type 5
- Duct connection 5
- Floor standing type 5
- Heat pump 5
- Outdoor unit 5
- Wall mounted type 5
- Cooling heating 6
- Heat pump 6
- Page 31 32 6
- Page 33 34 6
- Simultaneous control with 3 units for irregularly shaped 6
- Simultaneously running 2 to 4 units distributes comfort across wide spaces 6
- Triple multi operation 6
- Twin multi operation 6
- A newly shaped air discharge opening increases flow without increasing wind speed hence discharged air reaches farther than before 7
- A signal receiver must be added to the indoor unit 7
- Accessory required for indoor unit option 7
- Air direction 7
- Air direction can be selected according to installation 7
- Air discharge distribution comparison 7
- Air discharge temperature comparison 7
- All models from the 35k to 140k use the same size panel multiple unit installations maintain a physical uniformity that is aesthetically pleasing and make it easier to plan ceiling lighting systems and to design interiors 7
- And 40 7
- At heating startup and thermo off air direction is automatical ly set to a near horizontal 10 to prevent direct exposure to cool 7
- Auto air direction control 7
- Auto swing 7
- Auto swing between 10 and 40 7
- Auto swing between 10 and 65 7
- Auto swing between 30 and 65 7
- Both indoor unit and wired remote 7
- Brc1c61 7
- Brc7c612w 7
- Brc7c613w 7
- Ceiling mounted cassette type 7
- Compact body and quiet operation 7
- Controller option contain temperature 7
- Cooling only 7
- Criteria for ceiling height and number of air discharge outlets 7
- Dehumidification is microprocessor controlled to prevent abrupt and uncomfortable changes in air temperature 7
- Denotes piping direction denotes sealing member for air discharge outlet option 7
- Desired situation 7
- Diffuser 7
- Draft prevention 7
- Draft prevention setting 7
- Draft resistance has been reduced by incorporating into a single unit an impeller and a diffuser to control air flow inside the unit the diffuser turbo fan is both quiet during operation and compact 7
- Fhyc71k 7
- Guide line up p 3 10 7
- Heat pump 7
- High low 7
- In heating mode 7
- Indoor unit high low 7
- Installed type 7
- K 140k 7
- Levels air direction setting 7
- Note air direction is set to the standard position when the unit is shipped from the factory the position can be changed from the remote controller 7
- Note anechoic chamber conversion value measured according to jis parameters and 7
- Note for 3 way or 2 way flow installation the sealing member for air discharge outlet option must be used to close off the unused outlet s 7
- Note initial settings are for standard ceiling height and 4 way flow high ceiling settings 1 and 2 are set from the remote 7
- Note operation sound increases when using 2 way or 3 way 7
- Note remote controller cable not included cables must be procured locally 7
- Optimal comfort and convenience assured by 3 air discharge modes 7
- Options p 57 7
- Outdoor units p 33 34 7
- Outer dimension drawings 7
- Pattern 7
- Remote controllers p 35 36 7
- Same for all models 7
- Sensors temperature sensing can be set at the unit or to further improve comfort level closer to the target area at the wired remote control 7
- Settable to 5 different levels between 7
- Settable to 5 different levels between 10 and 65 7
- Settable to 5 different levels between 30 and 65 7
- Setting to prevent soiling of ceiling 7
- Signal receiver unit 7
- Sound level 7
- Standard setting 7
- Standard specifications p 39 46 49 54 7
- Super cassette 7
- Switchable fan speed high low 7
- The air direction is set automatically to the memorised position of the previous air direction initial setting is 65 for heating and 30 for cooling 7
- Two selectable temperature sensors 7
- Unified square panels 7
- Way flow 7
- When ceilings must be kept spotless 7
- When drafts are unwanted for gentle drafts ceiling is soiled 7
- When the thermostat turns off 7
- Wired lcd remote controller wireless lcd remote controller 7
- Wireless remote controller and signal receiver unit are sold as a set 7
- 35k 71k 8
- All models suspended without lift 8
- Auto cooling heating change over 8
- Auto restart 8
- Auto swing 8
- Available in two types 65 and 90 colorimetry 8
- B ra nc h duc t c ha m be r 8
- Ceiling mounted cassette type 8
- Ceiling soiling prevention 8
- Central remote control 8
- Comfort work servicing control features others option 8
- Connecting ducts insect nets fire dampers air filters and other parts should as required be procured locally 8
- Control by 1 remote controller 8
- Control by 2 remote controllers 8
- Conventional 8
- Cooling only 8
- Draft prevention function 8
- Drain pump is equipped as standard accessory with 75 8
- Drain pump mechanism 8
- Easy height adjustment 8
- Easy installation for options 8
- Emergency operation 8
- Even in smoky environments where the air conditioning is on most of the time the ultra long life filter only has to be changed once a year 8
- External command control 8
- F re s h a ir inta k e k it 8
- Feature 8
- Features are explained on p 37 38 8
- Filter sign 8
- Fresh air intake kit 8
- H igh e ffic ie nc y filte r 8
- Heat exchanger cleaning interval 8
- Heat pump 8
- High ceiling application 8
- High efficiency filter 8
- High installable in tight ceiling space 8
- Hot start 8
- Installable in any direction 8
- Interlock control 8
- It is recommended that the volume of outdoor air introduced through the kit is limited to 10 of the maximum airflow rate of the indoor unit introducing higher quantities will increase the operating noise and may also influence temperature sending 8
- Just 24 8
- Less cleaning work thanks to non dew flaps with non flocking 8
- Long life filter 8
- Low gas pressure detection 8
- Mm high with 100k 140k 8
- Mould resistant treatment for filter 8
- Note if the wireless remote con trol option is installed a light receptor unit is housed in one of the adjuster pock 8
- Note some ceiling con structions may hin der installation contact your dai kin dealer before installing your unit 8
- Note use of options will increase operating sound 8
- Options required for specific operating environments 8
- Ordinary store or office filter change every 4 years 8
- Outside air fan interlocked with air conditioning unit is necessary optional pcb krp1c63 is required for interlocking 8
- P a ne l s pa c e r 8
- Pe fin 8
- Pre charged for up to 30 m 8
- Programme dry 8
- S e a ling m e m be r for a ir dis c ha rge outle t 8
- Sealing members block air discharge openings not used in 2 way or 3 way blow 8
- Self diagnosis function 8
- Smoky atmosphere annual filter change 8
- Stepping motor controls flaps to prevent soiled ceilings 8
- Super cassette 8
- Supports simultaneous running of the twin triple and double twin multi operation 8
- Swing pattern selection 8
- Switchable fan speed 8
- The units can be installed in the following different ways 8
- This chamber lets you connect a round flexible duct to the air discharge opening at any time after the original installation 8
- Timer selector 8
- Twin triple double twin multi operation 8
- Two selectable temperature sensors 8
- U ltra long life filte r 8
- Ultra long life filter 8
- Use when only minimal space is available between drop ceilings and ceiling slabs 8
- Using this kit a duct can be fitted to increase the intake of outdoor air 8
- Year round cooling applicable 8
- Years 3 years 8
- 1 160 1 400 1 590 9
- A signal receiver must be added to the indoor unit 9
- Absence of bristles minimises clinging dirt and simplifies cleaning 9
- Accessory required for indoor unit option 9
- All wiring and internal servicing done from below the unit 9
- B 125b 9
- B 50b 60b 71b 9
- Both indoor unit and wired remote controller option contain temperature sensors tem perature sensing can be set at the unit or to further improve comfort level closer to the target area at the wired remote control 9
- Brc1c61 9
- Brc7e63w 9
- Brc7ea66 9
- Ceiling suspended type 9
- Comfort work servicing control features others 9
- Cooling only 9
- Dehumidification is microprocessor con trolled to prevent abrupt and uncomfort able changes in air temperature 9
- Drain pipe connection can be done inside the unit refrigerant and drain pipe outlets are at the same opening 9
- Drain pump kit option can be easily incorporated 9
- Easier to maintain 9
- Feature 9
- Features are explained on p 37 38 9
- Fhy71b 9
- For 71b indoor unit 9
- Guide line up p 3 10 9
- Heat pump 9
- Heat pump cooling only 9
- Height 9
- High low 9
- Improved oil resistant grille 9
- Indoor unit 9
- Indoor unit high low 9
- Installation flexibility for freedom of design 9
- Installed type 9
- It is easy to wipe dirt off the flat side and lower surfaces of the unit 9
- Long life filter lasts about 1 year maintenance not required 9
- Low gas pressure detection 9
- Non dew flap without bristles 9
- Note anechoic chamber conversion value measured according to jis parameters and 9
- Note intended for use in salons dining rooms and ordinary sales floors this specification is not suitable for kitchens or other harsh environments 9
- Note remote controller cable not included cables must be procured locally 9
- Oil resistant plastic is used for the air discharge grille this improves durability in restaurants and other similar environments 9
- Options p 57 9
- Outdoor units p 33 34 9
- Outer dimension drawings 9
- Pipes more easily rigged too 9
- Plastic panels are used to conceal piping holes holes can be easily punched out without requiring special tools 9
- Quiet operation spreads comfortable air throughout the room 9
- Remote controllers p 35 36 9
- Signal receiver unit 9
- Sound level 9
- Sound operation has been reduced on the exposed ceiling suspended type unit 9
- Standard specifications p 39 47 49 55 9
- Supports simultaneous running of the twin triple and double twin multi operation 9
- Switchable fan speed high low 9
- The unit fits more snugly into tight spaces 9
- Two selectable temperature sensors 9
- Two time settings 2500 hrs and 1250 hrs are available to match the installation environment maintenance time warning is displayed on the remote controller filter sign 9
- Uniform height and depth compact design for small capacity models to meet tighter dimensional constraints 9
- Uses quiet stream fan and other quiet technologies 9
- Weight of all models reduced down 10 compared with previous models transfer and installation work is less arduous 9
- Wide air discharge openings produce a spreading 100 airflow 9
- Width depth 9
- Wired lcd remote controller wireless lcd remote controller 9
- Wireless remote controller and signal receiver unit are sold as a set 9
- A signal receiver must be added to the indoor unit 10
- Accessible from below for easy maintenance 10
- Accessory required for indoor unit option 10
- At heating startup and thermo off air direction is automatically set to horizontal 10
- Auto air direction control 10
- Auto swing 10
- Auto swing between 0 and 60 10
- Both indoor unit and wired remote con troller option contain temperature sensors temperature sensing can be set at the unit or to further improve comfort level closer to the target area at the wired remote control 10
- Brc1c61 10
- Brc7c528w 10
- Brc7c529w 10
- Ceiling 10
- Ceiling suspended cassette type 10
- Comfort work servicing control features 10
- Cooling only 10
- Criteria for ceiling height and number of air discharge outlets 10
- Dehumidification is microprocessor con trolled to prevent abrupt and uncomforta ble changes in air temperature 10
- Draft prevention 10
- Feature 10
- Features are explained on p 37 38 10
- Fuy71fj 10
- Guide line up p 3 4 7 8 10
- Heat pump 10
- High low 10
- In heating 10
- Indoor unit high low 10
- Installed type 10
- Levels air direction setting 10
- Long life filter lasts about 1 year maintenance not required 10
- Low gas pressure detection 10
- Note anechoic chamber conversion value measured according to jis parameters and 10
- Note initial settings are for standard ceiling height and 4 way flow high ceiling settings 1 and 2 are set from the remote 10
- Note remote controller cable not included cables must be procured locally 10
- Note the panel cannot be turned when the wireless remote controller is in use 10
- Options p 57 10
- Others 10
- Outdoor units p 33 34 10
- Outer dimension drawings 10
- Remote controllers p 35 36 10
- Selection patterns for air direction and fan speed ratio 10
- Settable to 5 different levels between 0 and 60 10
- Signal receiver unit 10
- Simple installation procedure 10
- Simply lock the body in place with suspen sion bolts to install adjustment is smooth and simple too 10
- Since the orientation of the intake grill can be adjusted after installing the direction of the intake grill lines can be unified when multiple units are in stalled 10
- Sound level 10
- Standard 100 moderate approx 70 10
- Standard specifications p 40 and 50 10
- Suspended cassette type 10
- Switchable fan speed high low 10
- Temperature sensor on indoor unit must be used when the air conditioner is controlled from another room 10
- The air direction is set automatically to the memorised position of the previous air direction initial setting is 60 for heating and 30 for cooling 10
- The auto swing function increases comfort level 10
- Thinner usually means noisier but daikin s exclusive technology has solved this 10
- Through use of a high static pressure vane and a thorough reduction in flow loss in the path between internal fan suction and air output we have ach ieved a thinner fan unit and quiet opera tion while maintaining airflow 10
- Two selectable temperature sensors 10
- Ultra thin with quiet operation 10
- Way flow 10
- When the thermostat turns off 10
- Wired lcd remote controller wireless lcd remote controller 10
- Wireless remote controller and signal receiver unit are sold as a set 10
- 2 3 4 5 6 11
- 65 downward flow from high ceiling 11
- Accessory required for indoor unit 11
- Air direction 11
- Air discharge grille flexible duct 11
- Airflow variation 11
- Auto air direction control 11
- Auto swing 11
- Auto swing between 0 and 65 11
- Brc1c61 11
- Ceiling mounted cassette corner type 11
- Comfort work servicing control features 11
- Comfortable cooling from ceiling to floor downward flow 11
- Dehumidification is microprocessor controlled to prevent abrupt and uncomfortable changes in air temperature 11
- Desired situation 11
- Downward flow 11
- Downward flow forward flow 11
- Draft prevention in heating model 11
- Draft prevention setting 11
- E x a m ple ins ta lla tions 11
- Easier to install and service 11
- Feature 11
- Features are explained on p 37 38 11
- Fhyk71fj 11
- For outward blow detach the punch out panel from the duct connection port on the front of the unit 11
- Forward flow 11
- Guide line up p 3 4 7 8 11
- Heat pump cooling only 11
- High ceiling installation 11
- High low 11
- In the corner of a room downward flow 11
- Indoor unit high low 11
- Keep duct no more than 5 m long 11
- Levels air direction setting 11
- Long life filter lasts about 1 year maintenance not required 11
- Low gas pressure detection 11
- Multiple airflow variations for stepped or 3 m high ceilings 11
- Note air direction is set to the standard position when the unit is shipped from the factory the position can be changed from the remote controller 11
- Note anechoic chamber conversion value measured according to jis parameters and 11
- Note remote controller cable not included cables must be procured locally 11
- Note the maximum duct length for connection to the fresh air intake kit is 5 m connecting ducts insect nets fire dampers air filters and other parts should as required be 11
- On stepped ceiling outward downward flow 11
- On stepped ceilings downward flow can be blocked and outward flow alone can be used to cool or heat the space 11
- Optimal comfort and convenience assured by three air discharge modes 11
- Option 11
- Options p 58 11
- Others 11
- Outdoor units p 33 34 11
- Outer dimension drawings 11
- P a ne l s pa c e r option 11
- Panel spacers option can be installed with all three airflow variations decoration panels option to hide the downward air discharge opening can be installed with variation above 11
- Quiet operation 11
- Remote controllers p 35 36 11
- Required options 11
- Settable to 5 different levels between 0 and 65 11
- Settable to 5 different levels between 30 and 65 11
- Settable to 5 different levels between 40 and 65 11
- Setting to prevent soiling of ceiling 11
- Site installation required a duct can be connected to the rear of the indoor unit to draw in outdoor air 11
- Sound level 11
- Standard setting 11
- Standard specifications p 40 and 50 11
- The air direction is set automatically to the memorised posi tion of the previous air direction initial setting is 65 for heating and 30 for cooling 11
- Upgrade options for easy installation on stepped ceilings 11
- Use when only minimal space is available between drop ceilings and ceiling slabs 11
- When ceilings must be kept spotless 11
- When drafts are unwanted for gentle drafts ceiling is soiled 11
- When the thermostat turns off 11
- Wind speed profile heatin 11
- Wired lcd remote controller 11
- A duct can be connected to the rear of the indoor unit to draw in outdoor air 12
- Accessory required for indoor unit 12
- Air blow 12
- Air blow air intake 12
- Air discharge chamber 12
- Air discharge grille 12
- Air discharge opening adapter 12
- Air discharge opening adapter decorative panel 12
- Air intake 12
- Applicable to r y 71lu 125lu outdoor units 12
- Applicable to r71lu r125lu outdoor units for temp down to 15 c an option is required 12
- Applicable to ry71lu ry125lu outdoor units for temp down to 5 c 12
- Auto cooling heating change over 12
- Auto restart 12
- Available in two types 65 and 90 colorime try this filter easily meets dust collection effi ciency regulations specified in building codes 12
- Branch duct 12
- Branch duct rear intake filter chamber 12
- Brc1c61 12
- C e iling re turn w ith high e ffic ie nc y filte r 12
- Canvas bellows and air intake panel 12
- Ceiling mounted built in type 12
- Central remote control 12
- Comfort work servicing control features 12
- Control by 1 remote controller 12
- Control by 2 remote controllers 12
- Custom installation required with locally procured materials 12
- Decorative panel 12
- Dehumidification is microprocessor con trolled to prevent abrupt and uncomfort able changes in air temperature 12
- Drain pump mechanism 12
- Emergency operation 12
- External command control 12
- External static pressure can be set depending on duct length presence of high efficiency filter and other installation conditions 12
- External static pressure is set to standard when the unit is shipped from the factory 12
- External static pressure pattern 12
- F and 125f 12
- Feature 12
- Features are explained on p 37 38 12
- Fhyb71f 12
- Filter sign 12
- Flexible duct 12
- Flexible duct air discharge grille air discharge opening flange rear intake blocking pad 12
- Flexibly adapts to shop interiors 12
- For dust concentration of 0 5 mg 12
- Fresh air intake possible 12
- Guide line up p 3 4 7 8 12
- H igh e ffic ie nc y filte r option 12
- Heat pump cooling only 12
- High efficiency filter 12
- High low 12
- High standard 12
- Hot start 12
- In crawl space 12
- Indoor unit 12
- Indoor unit high low 12
- Inspection panel high performance filter 12
- Insufficient gas charging is normally hard to detect during post installation trials and regular inspection procedures the refrigerant level is monitored by microprocessor to maintain proper gas pressure 12
- Interlock control 12
- L shaped space u shaped space long space 12
- Long life filter 12
- Long life filter air blow air intake 12
- Long life filter lasts about 1 year maintenance not required 12
- Low draft filter chamber 12
- Low gas pressure detection 12
- Mm or more 12
- Mould resistant treatment for filter 12
- Note anechoic chamber conversion value measured according to jis parameters and 12
- Note remote controller cable not included cables must be procured locally 12
- Note the maximum duct length for connection to the fresh air intake kit is 5 m connecting ducts insect nets fire dampers air filters and other parts should as required 12
- Option 12
- Option others 12
- Options 12
- Options have also been upgraded to make installation even easier 12
- Options p 58 12
- Outdoor units p 33 34 12
- Outer dimension drawings 12
- Pe fin 12
- Pre charged for up to 30 m 12
- Prevention 12
- Programme dry 12
- Remote controllers p 35 36 12
- S ta nda rd ins ta lla tion e x a m ple s 12
- Self diagnosis function 12
- Sound level 12
- Standard specifications p 41 51 12
- Switchable fan speed 12
- Switchable fan speed high low 12
- The indoor unit can be installed in rooms with as little as 350 mm between the drop ceiling and ceiling slab it also works with both flexible and ordinary ducts 12
- Timer selector 12
- To cope with the challenges of l shaped or u shaped spaces it is pos sible to install the air discharge unit away from the main unit at the same time different types of architectural space can be kept comfortable 12
- W ith high e ffic ie nc y filte r c e iling re turn 12
- W ith ordina ry duc ts 12
- Wired lcd remote controller 12
- With canvas bellows and air intake panel sold separately 12
- Year round cooling applicable 12
- A signal receiver must be added to the indoor unit 13
- Accessory required for indoor unit option 13
- All maintenance tasks can be carried out via front access during service work attachment and detachment of parts is easier 13
- Auto swing 13
- Auto swing from 10 to 70 13
- Below features only apply to fay71l 13
- Both indoor unit and wired remote 13
- Brc1c61 13
- Brc7c610w 13
- Brc7c611w 13
- Brc7e619 13
- Brc7ea618 13
- Comfort even on the far side of the room 13
- Comfort work servicing control features 13
- Compact and stylish design that does not detract from the decor of the room 13
- Controller option contain temperature 13
- Conventional 13
- Cooling only 13
- Dehumidification is microprocessor controlled to prevent abrupt and uncomfortable changes in air temperature 13
- Diii net connection is standard specification adapter is not required 13
- Direction control 13
- Drain enclosure can be used on either left and right side 13
- Drain pan and air filter can be kept clean by mould proof polystyrene 13
- Drain pump kit is available as option 13
- Drastic size reduction 13
- Easier to install and service 13
- Fay100f 13
- Fay100fave 13
- Fay71l 13
- Fay71lve 13
- Feature 13
- Features are explained on p 37 38 13
- Flap is closed when not operating 13
- Guide line up p 3 4 7 8 13
- Heat pump 13
- Heat pump cooling only 13
- Improved airflow modes realise comfortable air distribution across the entire room 13
- Installed type 13
- Insufficient gas charging is normally hard to detect during post installation trials and regular inspection procedures the refrigerant level is monitored by microprocessor to maintain proper gas pressure 13
- Level air direction setting 13
- Light weight 13
- Low gas pressure detection 13
- Maintenance possible from the front of the unit 13
- New model 13
- Note remote controller cable not included cables must be procured locally 13
- Options p 58 13
- Others 13
- Outdoor units p 33 34 13
- Outer dimension drawings 13
- P 62 63 13
- Programme dry 13
- Reduced size by 22 in volume 32 in installation area makes installation possible in a very limited space 13
- Reduced weight by 8kg greatly facilitates installation 13
- Remote controllers p 35 36 13
- Removable and washable grille 13
- Sensors temperature sensing can be set at the unit or to further improve comfort level closer to the target area at the wired remote control 13
- Settable to 5 different levels between 10 to 70 13
- Signal receiver unit 13
- Sophisticated extension design 13
- Sound level 13
- Standard specifications p 41 51 13
- Switchable fan speed high low 13
- Temperature sensor on indoor unit must be used when the air conditioner is controlled from another room 13
- To carry air to the far side of long rooms extra high airflow adds 10 more fan speed the high setting air discharge strength is selected from the remote controller 13
- Two selectable temperature sensors 13
- Wall mounted 13
- Wall mounted type 13
- Wired lcd remote controller wireless lcd remote controller 13
- Wireless remote controller and signal receiver unit are sold as a set 13
- Wireless remote controller does not have a 13
- A good choice for spaces with ceilings so high that heating by ceiling mounted units is inefficient 14
- Auto swing manual setting of vertical airflow louvers 14
- Comfort work servicing control features 14
- Conventional 14
- Dehumidification is microprocessor con trolled to prevent abrupt and uncomfort able changes in air temperature 14
- Feature 14
- Features are explained on p 37 38 14
- Floor standing 14
- Fvy f new model 14
- Fvy units have swinging louver spreads comfortable airflow any uncomfortable sensation of sudden change is avoided by a slow cycle of 2 to 3 full swings per minute 14
- Fvy71la 14
- Guide existing models p 4 14
- Guide line up p 3 4 7 8 14
- Heat pump cooling only 14
- High low 14
- Indoor unit 14
- Indoor unit high low 14
- Insufficient gas charging is normally hard to detect during post installation trials and regular inspection procedures the refrigerant level is monitored by microprocessor to maintain proper gas pressure 14
- Lcd control panel is standard 14
- Lightweight 14
- Long life filter lasts about 1 year maintenance not required 14
- Low gas pressure detection 14
- Note anechoic chamber conversion value measured according to jis parameters and 14
- Note for optimal installation space factors should be accurately calculated 14
- Options p 58 14
- Options p 6 37 14
- Others 14
- Outdoor units p 33 34 14
- Outdoor units p 5 26 14
- Outer dimension drawings 14
- P 8 45 14
- Remote controller cable not included cables must be procured locally 14
- Remote controllers p 35 36 14
- Remote controllers p 7 28 14
- Sound level 14
- Standard specifications p 4 14
- Standard specifications p 42 52 14
- Switchable fan speed high low 14
- Temperature sensor on indoor unit must be used when the air conditioner is controlled from another room 14
- Temperature sensors on both indoor unit and wired remote controller temperature sensing can be set closer to the target area to further improve comfort level 14
- The lcd displays text numbers and graphics to indicate the temperature setting timer setting auto swing fan speed and more furthermore the lcd panel can be detached and used as a remote controller so air conditioning can be controlled from another room or from the cash register 14
- The unit can be easily transported and installed 14
- Vertical airflow adjustment is possible when changing between cooling and heating or to match interior spaces and partitions 14
- Weight 14
- Wireless remote controller does not have a temperature sensor 14
- Comfort 15
- Compact 295 mm high design makes installation possible where the ceiling space is limited 15
- Control features others 15
- Dehumidification is microprocessor controlled to prevent abrupt and un comfortable changes in air temperature 15
- Duct connection 15
- Duct connection middle static pressure type 15
- Fdmg fdym 15
- Fdmg100a 15
- Fdmg125a 15
- Fdmg140a 15
- Fdmg180a 15
- Fdmg71a 15
- Fdym03fa 15
- Fdym04fa 15
- Fdym05fa 15
- Fdym06fa 15
- Feature 15
- Insufficient gas charging is normally hard to detect during post installation trials and regular inspection procedures the refrigerant level is monitored by microprocessor to maintain proper gas pressure 15
- Low gas pressure detection 15
- Middle static pressure type 15
- Middle static pressure type is available in a larger than standard space 15
- Supports simultaneous running of the twin and triple multi operations 15
- Switchable fan speed high low 15
- The duct system allows the efficient location of discharge outlets in accordance with the room layout 15
- Unit can be mounted in the ceiling and air can be delivered freely by duct 15
- Accessory required for indoor unit option 16
- Air filter duct connection 16
- Brc1c61 16
- Brc4c62 16
- Comfort 16
- Control features others 16
- Cooling only 16
- Digital remote controller remote controller 16
- Fd03ky1 20ky1 16
- Fdbg fdyb 16
- Fdbg25av 16
- Fdbg60ave 16
- Fdy06ka 16
- Fdy06kay1 20kay1 16
- Fdyb35kav 16
- Fdyb50ka 16
- Fdyb50ka fdy06ka 16
- Feature 16
- Features are explained on p 37 38 16
- Guide line up p 3 10 16
- Heat pump 16
- Heat pump cooling only 16
- Highly durable outdoor unit has pe fins for improved resistance to salt corrosion and atmospheric pollution 16
- Indoor unit high low 16
- Krc47 1a 16
- Krc47 2a krc47 4a 16
- Krc47 3a 16
- Line up p 3 4 7 8 outdoor units p 33 34 16
- Many options are available for use with large scale and advanced function centrally controlled systems 16
- Note remote controller cable not included cables must be procured locally 16
- Options p 59 16
- Outdoor units p 33 34 16
- Outer dimension drawings 16
- P 65 67 16
- Recommended for spacious and large volume areas because of its flexible installation suitable for large stores factories and other large areas and for use with housing ducts in homes 16
- Remote controller 16
- Remote controllers p 35 36 16
- Remote controllers p 35 36 standard specifications p 44 45 53 16
- See pages 31 32 for details of the multi series 16
- Separate type 16
- Signal receiver unit 16
- Simultaneous air conditioning of two rooms and ventilation grille ventilation opening 16
- Small lightweight and easy to install outdoor unit 16
- Sound level 16
- Standard specifications p 42 52 56 16
- Suction chamber 16
- Supports simultaneous running of the triple and double twin multi operations 16
- To achieve increased durability by improved resistance to salt corrosion and atmospheric pollution coated pe fins with special acryl pretreatment are used for the heat exchanger of the outdoor unit 16
- When air conditioning two rooms simultaneously the air discharged into each room must be circulated back to the air conditioner to achieve this a ventilation duct should be installed for each room or one of the indicate ventilation grilles should be installed on the partitioning wall or under the door between the rooms 16
- Wired lcd remote controller wireless lcd remote controller 16
- Wireless remote controller and signal receiver unit are sold as a set 16
- Work servicing 16
- 50 m l max 17
- Because the wireless remote controller does not have a temperature sensor select the temperature sensor of the indoor master unit 17
- Before 17
- Before new 17
- Branch piping kit 17
- Branch piping kits are sold separately please use the model indicated on page 59 17
- Brc1c61 17
- Brc4c62 17
- Brc4c64 17
- Brc7c612w 17
- Brc7c613w 17
- Brc7e63w 17
- Brc7ea66 17
- Ceiling mounted cassette type 17
- Ceiling suspended type 17
- Connect the wired remote controller to turn an indoor unit into the master unit 17
- Double twin multi operation 17
- Duct connection low static pressure type 17
- Duct connection middle static pressure type 17
- For triple multi for twin multi for double twin multi 17
- Guide line up p 5 6 9 10 17
- Improved comfort level and space saving for outdoor unit installation 17
- In a single floor restaurant for example positioning 4 units at strategic locations realises comfortable airflow that reaches every inch of the room 17
- In case of 17
- Indoor unit 17
- Indoor units can be run simultaneously with a single outdoor unit 17
- Indoor units include ceiling mounted cassette type ceiling suspended type and duct connection middle and low static pressure type 17
- Install the signal receiver unit part of the optional wireless remote controller to turn an indoor unit into the master unit 17
- Installing multiple units is economical and realises comfort 17
- M 0 m 0 m 17
- M 30 m 30 m 17
- Max branch pipe length difference 17
- Max branch piping length 17
- Max level difference between indoor units 17
- Max level difference between outdoor unit and indoor units 17
- Max piping length 17
- Multi series 17
- Note an indoor unit s temperature sensor must be used when the air conditioners are controlled from another room 17
- Note selectable temperature sensing is available with ceiling mounted cassette and ceiling suspended models but not with middle static pressure models 17
- Note this type of system does not allow individual control or independent operation of indoor units it is not the best choice for large rooms with partitions 17
- Option 17
- Options p 57 59 17
- Outdoor units p 33 34 17
- Outer dimension drawings 17
- P 60 74 17
- Remote controllers p 35 36 17
- Required about 40 less installation space for outdoor unit 17
- Selected indoor unit or the temperature 17
- Sensor of the remote controller 17
- Simultaneous operation system 17
- Simultaneously operates 2 to 4 indoor units using a single outdoor unit 17
- Standard specifications p 46 48 54 56 17
- Triple multi operation 17
- Twin multi operation 17
- Twin multi operation triple multi operation double twin multi operation 17
- Wired remote controller has a temperature sensor depending on the installation conditions select and set the temperature sensor of a 17
- A pump down switch is provided to make it easier to collect refrigerant if the unit is to be moved or layout modified 18
- Actual measurement when outdoor temperature is 1 c 18
- Allowed refrigerant pipe length and level difference 18
- Also adapts to year round cooling 18
- Aluminium 18
- And 250 class models can be combined for centralised horizontal series installation 18
- Applies to r y 125lu and 140lu 18
- Applies to r y 71lu 125lu 18
- Applies to r y 71lu 140lu 18
- Applies to ry71lu 140lu heat pump only 18
- C om pa c t 18
- Common width and depth make series installation easy 18
- Compact unit provides quiet operation 18
- Compactly designed outdoor unit with interior layout optimised for the smooth airflow 18
- Construction 18
- Conventional 18
- Cooling is efficient even in winter when indoor temperatures are higher than those outside such as in underground public spaces or offices with many computers 18
- Cooling only outdoor unit 18
- Corrosion resistant acrylic resin 18
- Defrost control delivers powerful 18
- Direction piping offers greater layout freedom 18
- Dura bility 18
- Effective gas monitoring reduces the labor required for operation maintenance and repairs 18
- Equipped with scroll compressor for quiet operation 18
- Facilitates pump down 18
- Fitted with super aero grille 18
- Fitted with wide inlet fan 18
- Flexible design for large room or multi use 18
- Fully shaped aerodynamic propellers are designed to push air with a large wing surface providing both high blow volume and quiet operation with turbulence 18
- Heat exchange fins provided with anti corrosion treatment 18
- Heat pump only 18
- Heat pump outdoor unit 18
- Heat pump ry71 140lu possible up to 5 c cooling only r71 140lu possible up to 15 c the year round cooling kit is required as option 18
- Heating in extremely cold climates 18
- Hydrophilic film 18
- If refrigerant piping length does not exceed 30 m there is no need for on site gas charging 18
- Instead of the using an accumulator to ab sorb excess refrigerant daikin outdoor units have a receiver in the piping located away from the compressor by preventing the return of liquid to the compressor the receiver enhances reliability 18
- Integral heating capacity and temperature difference 18
- Low gas level detection function 18
- Non treated fin 18
- Note anechoic chamber conversion value measured according to jis parameters and 18
- Operation sound 18
- Outdoor unit 18
- P ow e rful 18
- Pe fin 18
- Piping can be drawn out from three directions front left side or below 18
- Piping can be run from the front bottom right or rear surface according to how the unit is installed 18
- Pre charged for up to 30 metres 18
- R y 200ku 18
- R y 250ku 18
- R y 71lu r y 100lu r y 125lu r y 140lu 18
- R100lu 18
- R125lu 18
- R140lu 18
- Reduced weight 18
- Refrigerant recovery function 18
- Ru08 10k models are available in two type depending on installation conditions 18
- Ru08 10ku models are factory shipped with refrigerant charged for 5 m of piping ru08 10k models are factory shipped with no refrigerant charged 18
- Ry100lu 18
- Ry125lu 18
- Ry140lu 18
- Ry200ku and250ku can adapt up to 0 c 18
- Ry71lu 18
- Slim and low profile design outdoor units 18
- Smooth running minimal vibration low operating sound 18
- Sound level 18
- Sound level cool heating 18
- Suited for year round cooling applications 18
- The design curved super aero grille restricts the spread of exhaust gas and fits in the same space as conventional outdoor units 18
- The light weight makes delivery and installation easier 18
- To achieve increased durability by improved resistance to salt corrosion and atmospheric pollution coated pe fins with special acryl pretreatment are used for the heat exchanger of the outdoor unit 18
- To optimise heating performance by monitoring the difference in air temperature in the indoor outdoor heat exchanger and the intake air temperature the system accurately adjusts to provide the best operating parameters this enables defrost mode to be initiated and so minimise indoor declines in temperature caused by frost for example if the outdoor airtemperature falls to 1 c the integrated heating capacity is raised about 20 18
- To suppress turbulence and achieve quiet operation the curved ribs of the grille are optimised to meet the outflow of air 18
- Uses receiver to enhance refrigerant control 18
- Wide inlet fan 18
- ５０ 18
- ５００ 18
- Airflow swing display 19
- All initial settings can be set from the remote controller after interior construction is complete ceiling mounted units can be remotely set without having to use stepladder access for manual setting 19
- Basic system 19
- Brc1c61 19
- Brc1d61 19
- C e ntra l re m ote c ontrolle r 19
- Ceiling mounted cassette type 19
- Central control adaptor kit 19
- Centralised control of on off by group or all at once for up to 256 indoor units 19
- Centralised control of up to 64 indoor groups from remote location up to 1 kilometer away 19
- Centralised control with setting as simple as it is with a standard remote controller of up to 64 groups 1 024 indoor units is possible 19
- Centralised remote control 19
- Control by 1 19
- Control by 2 remote controllers 19
- Control by external command 19
- Control pattern wired remote controller wireless remote controller 19
- Dcs301ba61 option 19
- Dcs302ca61 option 19
- Dcs601c51 option 19
- Displays auto swing operating status and setting position of air discharge angle 19
- Displays preset room temperature and operating status fan dry cool 19
- Dst301ba61 option 19
- Dta102a52 option 19
- Dta107a55 option 19
- Easily adaptable to large scale high function centralised remote control system 19
- Easily adaptable to large scale high function centralised remote control systems 19
- Easy to read lcd remote controller allows various system control configurations and can control multiple indoor units 19
- Enables centralised control via connection to a high speed diii net communication system adopted for the daikin vrv system 19
- Enables temperature sensing closer to target area for improved comfort when using remote control from another room temperature sensor in indoor unit s air inlet must be selected 19
- F a c ilita te s m a inte na nc e a nd re pa ir 19
- For control from 2 locations such as in room and control room exits etc 19
- For easier operation louver switches which are frequently used have been made larger oil resistant plastic casing only 17 mm thick can be installed either recessed or exposed 19
- For fd series 19
- For simultaneous control of up to 16 indoor units 19
- Group control 19
- Hour clock function 1 hour backup for power failures programming function for each day of week scheduling possible of start stop and temperature limit 5 settings day programming can be enabled or disabled copy function for programmed schedules 19
- Indoor units applicable for the remote controller 19
- Installing and connecting control wiring between skyair and other daikin air conditioning equipment is easy 19
- Interface adaptor for skyair series 19
- Interlock control with hrv 19
- Lcd remote controllers 19
- Link by remote controller group control 19
- Monitors operating status within the system covering 40 items and displays a message to indicate as soon as a malfunction occurs 19
- N on pola r double c ore c onne c tion s pe c ific a tions s im plify w iring 19
- Non polar double core remote controller wire prevents wiring mistakes signal receiver unit or decoration panel of wireless type is also easy to connect 19
- Not available for ceiling mounted built in type and duct connection type 19
- Note the signal receiver unit shown in the photograph is for mounting inside the decoration panel of the ceiling mounted cassette type 19
- Note when a wireless remote controller is used remote control by two remote controllers is not possible 19
- Operation and surveillance is carried out using the contact signal from the operation control box in the building surveillance security room 19
- Operation start and stop time can be set for individual timers up to 72 hours the liquid crystal display also shows when it is time to clean the filter when changeover is under centralised control and ventilation cleaning 19
- Optional adaptor for external commands or remote control of external equipment has been standardised to one type 19
- Preset temperature operation mode display 19
- Programming time display 19
- Remote controller 19
- Remote controller is equipped with model name and failure display functions this facilitates service in the unlikely event of a malfunction 19
- Remote controller options are shown on the page introducing each indoor unit model 19
- S c he dule tim e r 19
- S im ple s ys te m provide s a dive rs e a s s ortm e nt of c ontrol m ode s 19
- S k ya ir s ha re s c om m on c ontrol w ith h r v he a t re c la im ve ntila tion a nd the othe r da ik in a ir c onditioning units thus s im plifying inte rloc k ing ope ra tions 19
- Self diagnosis function 19
- Setting contents high ceiling use air direction filter type address for centralised control group control address is set automatically 19
- Shape of signal receiver unit differs according to the indoor unit 19
- Signal receiver mounted type 19
- Signal receiver unit for ceiling mounted cassette type 19
- Standard remote controller brc1c61 is not required if the brc1d61 is connected to the centralised remote controller the schedule function is not available 19
- Te m pe ra ture s e ns o 19
- The wind direction adjustment button is pressed 2 19
- The wireless remote controller is supplied in a set with a signal receiver 19
- This function is not available is displayed when 19
- U nifie d on off c ontrolle r 19
- Unified control of weekly schedule for up to 1 024 indoor units 19
- W ire d re m ote c ontrolle r ha s built in 19
- Wired lcd remote controller 19
- Wireless lcd remote controller 19
- Wireless remote controller 19
- With its high functionality the full color all in one graphic controller facilitates management of skyair system in a variety of ways 19
- Zone link control by centralised control 19
- Abundance of functions that provide comfortable air conditioning in stores and offices 20
- C o m f o r t 20
- C o n t r o l f e a t u r e s 20
- M o u l d p r e v e n t i o n 20
- O p t i o n s 20
- O t h e r s 20
- W o r k a n d s e r v ic in g 20
- Ceiling mounted cassette corner type 21
- Ceiling mounted cassette type 21
- Ceiling suspended cassette type 21
- Ceiling suspended type 21
- Ceiling mounted built in type 22
- Duct connection low static pressure type 22
- Floor standing type 22
- Wall mounted type 22
- Duct connection high static pressure type 23
- Duct connection middle static pressure type 23
- Ceiling mounted cassette type 24
- Duct connection high static pressure type 24
- Simultaneous operation syste 24
- Twin triple double twin multi 24
- Ceiling suspended type 25
- Duct connection middle static pressure type 25
- Simultaneous operation syste 25
- Twin triple double twin multi 25
- Ceiling mounted cassette corner type 26
- Ceiling mounted cassette type 26
- Ceiling suspended cassette type 26
- Ceiling suspended type 26
- 000 6 800 27
- 260 3 230 27
- 300 21 000 27
- 370 5 290 27
- 400 19 800 27
- 530 4 470 27
- 600 26 200 27
- 700 6 600 27
- 900 12 800 18 000 17 800 27
- 900 6 020 27
- Ceiling mounted built in type 27
- Direct drive 2 speed 27
- Duct connection low static pressure type 27
- Floor standing type 27
- Wall mounted type 27
- Ceiling mounted cassette type 28
- Duct connection high static pressure type 28
- Duct connection middle static pressure type 28
- Simultaneous operation system 28
- Twin triple double twin multi 28
- Ceiling suspended type 29
- Duct connection low static pressure type 29
- Duct connection middle static pressure type 29
- Simultaneous operation system 29
- Twin triple double twin multi 29
- Ceiling mounted built in type 30
- Ceiling mounted cassette corner type 30
- Ceiling mounted cassette type 30
- Ceiling suspended cassette type 30
- Ceiling suspended type 30
- Floor standing type 30
- Indoor unit 30
- Wall mounted type 30
- 2 3 4 5 6 7 8 9 31
- 260 195 300 31
- Adaptor for wiring 31
- Air direction adjustment grille drain plug 31
- Air discharge grille air suction grille air filter gas pipe connection liquid pipe connection drain pipe conneciton earth terminal 31
- Attached 0 m 31
- Brc1c61 31
- Brc1c61 brc1c61 31
- Brc1d61 31
- Brc1d61 brc1d61 brc1d61 31
- Brc4c62 31
- Brc4c64 brc4c62 31
- Central control adaptor kit remote sensor for indoor temperature 31
- Central remote controller 31
- D i m e n s i o n s 31
- Dcs301ba6 31
- Dcs302ca6 31
- Dcs601c5 31
- Digital remote controller digital remote controller for duct heater use 31
- Drain pan cover suction grille 31
- Drain piping kit central drain plug 31
- Dst301ba6 31
- Dta102a52 31
- Dta102a52 dta102a52 31
- Dta107a55 31
- Duct connection type 31
- Fd15k 20k 31
- Fdmg71a 100a 125a 140a 180a 31
- Fdy06ka 08ka 10ka 15ka 20ka 31
- Fdym03fa 04fa 05fa 06fa 31
- Fh y c35kve 71kve 31
- Fhyc100kve 140kve 31
- Flash memory 31
- Floor side 31
- For double twin multi 31
- For left piping 31
- For triple multi for twin multi 31
- Functio 31
- Hanging position 31
- Heat pump cooling only 31
- High static pressure type 31
- Indoor unit 31
- Installation box for adaptor pcb 31
- Interface adaptor for skyair series 31
- Khd58c21a 31
- Khd58c23a khd58c24a 31
- Khd58d33 31
- Khr58c21 31
- Khr58p322h 31
- Khrj5f224f khrj5f280f 31
- Kit name 31
- Kkd19a1 31
- Kkpj5f180 31
- Krc47 1a 31
- Krc47 2a krc47 4a 31
- Krc47 3a 31
- Krc47 5 31
- Krcs01 1b 31
- Krp1b100 31
- Krp1b100 krp4aa52 31
- Krp1ba5 31
- Krp1ba54 31
- Krp4aa5 31
- Limitations apply to some models and functions for details please contact your local sales office 31
- Low static pressure type 31
- M8 m10 hanging bolt 31
- Middle static pressure type 31
- Name of option remark 31
- Name of option remark heat pump cooling only 31
- Necessary for optional interface adaptor for skyair series dta112ba51 with the intelligent touch controller 31
- New communication functions in the user friendly icon based multilingual controller simplity centralised control of the system 31
- Note brand name plate 31
- Ntelligent touch controller dcs601c5 31
- Obstacle 31
- Or more 31
- Outdoor unit 31
- Pcmcia 31
- R100lu r125lu 31
- R140lu 31
- R250ku r200ku 31
- R25j r35j 31
- Refrigerant branch piping 31
- Remote controller 31
- Ry100lu ry125lu 31
- Ry250ku ry200ku 31
- Ry71lu ry140lu 31
- Service space 31
- Special 31
- Suspension bracket backward piping and wiring connection opening lid upward piping and wiring connection opening lid right side pipe connection left back drain pipe connection left side drain pipe connection right side drain pipe connection hole of wall for taking out in piping back upward drain pipe connection upward gas pipe connection upward liquid pipe connection 31
- Switch box for adaptor kit 31
- The front 31
- Unified on off controller schedule timer 31
- View from the front 31
- Wicks o d 5 it is attached to vrv 31
- Wired lcd remote controller 31
- Wired lcd remote controller with weekly schedule timer 31
- Wireless remote controller 31
- Wiring adaptor for electrical appendices 31
- Year round cooling kit 31
- Ceiling mounted built in type 32
- Ceiling mounted cassette corner type 32
- Ceiling suspended cassette type 32
- D i m e n s i o n s 32
- Fay71lve 32
- Unit mm 32
- Wall mounted type 32
- 1088 1104 130 33
- 1403 131 33
- 1703 1687 33
- 688 704 900 33
- A b c d e f g h i j k l 33
- A b c e f h g 33
- D i m e n s i o n s 33
- Duct connection low static pressure type 33
- Duct connection middle static pressure type 33
- Fay100fave 33
- Fdmg100av1 125av1 140av1 33
- Floor standing type 33
- I j k m n 33
- Piping direction 33
- Unit mm 33
- Wall mounted type 33
- Xp150 105 33
- Xp150 1050 33
- Xp150 135 33
- Xp150 1350 33
- Xp150 450 33
- Xp150 900 33
- D i m e n s i o n s 34
- Duct connection high static pressure type 34
- Duct connection middle static pressure type 34
- Fd06ky1 fd08ky1 fd10ky1 34
- Fdy06kay1 fdy08kay1 fdy10kay1 34
- Unit mm 34
- 11 12 13 35
- 1770 24 35
- 2220 54 2070 35
- A c b d f g h 35
- C b d f g h 35
- D i m e n s i o n s 35
- Duct connection high static pressure type 35
- Fd15ky1 fd20ky1 35
- Fdy15kay1 fdy20kay1 35
- Hole for remote controller wiring 35
- Hole for wiring from outdoor uni 35
- Outdoor unit r25jv1 r35jv1 35
- Outdoor unit r35gv1 ry35fv1a r50gv1 35
- Prepared holes for m4 tapping screw 35
- Unit mm 35
- Xp 50 1350 35
- Xp 50 900 35
- Xp150 1350 35
- Xp150 1650 35
- 4 2 1 7 7 36
- D i m e n s i o n s 36
- Outdoor unit r y 71luv1 y1 36
- Outdoor unit r71fuy1 rg71av1 ay1 36
- Outdoor unit ry50gav1a r60gv1 36
- Outdoor unit ry60gav1a 36
- Unit mm 36
- D i m e n s i o n s 37
- Outdoor unit r y 100luv1 y1 37
- Outdoor unit r y 125luy1 140luy1 37
- Outdoor unit r100fuv1 y1 125fuy1 37
- Outdoor unit ru06ky1 37
- Unit mm 37
- D i m e n s i o n s 38
- Outdoor unit r y 200kuy1 250kuy1 38
- Outdoor unit rg140ay1 180ay1 38
- Outdoor unit ru08kuy1 10kuy1 38
- Outdoor unit ru08ky1 10ky1 38
- Unit mm 38
- An obstruction in the overhead space 39
- Ceiling mounted cassette type 39
- Ceiling suspended type 39
- Conduit 39
- Control box 39
- Cord outlet hole 28 23 39
- Countries requiring emc shield wire insulated thickness 1 mm or more 39
- D i m e n s i o n s 39
- Decoration panel 39
- Digital remote controller remote controller 39
- Dimensions inside brackets indicate case where air direction adjustment guide is adjusted downward 39
- Distance between remote controller and control box 39
- Do not install more than 3 receivers in the vicinity of one another with 4 or more units there is always the possibility of malfunction 39
- Drain piping side 39
- Exposed body embedded code 39
- Exposed body embedded cord 39
- Exposed body exposed cord 39
- For r y 200ku 250ku 39
- For r y 71lu 140lu 39
- For series installation more than two units 39
- For single unit installation 39
- For single unit installation 2 for series installation more than two units 39
- For the service space for front side take the service space required for field piping into account 39
- For the service space if the obstacle of height exceeds the above mentioned dimensions half of the exceeded dimensions shall be added to the standard service space 39
- Front side 39
- Front side 10 39
- Front side 1500 mm suction side 500 mm side no imitation 39
- Front side 2 39
- Front side 40 39
- If the number of units is more than that shown in this manual take short circuit into account 39
- In case of parallel installation in case of set installation in case of single installation 39
- Insulated thickness 1 mm or more 39
- Liquid crystal remote controller wireless 39
- Note 1 remote controller cord and staple are not attached they are field supplied parts 39
- Obstacies height of pattern 1 and pattern 2 shall be as follows 39
- Pattern 1 39
- Pattern 2 39
- Pattern 3 39
- Receiver 39
- Receiver detail 39
- Receiver installation procedure 39
- Receiver installation procedure fay100fa 39
- Refrigerant piping side 39
- Remote controller dimensions 39
- Remote controller holder 39
- Remote controller installation procedure 39
- Service space for ceiling installation 39
- Space required for outdoor unit installation 39
- Specifications of cord 39
- Staple 39
- Suction side 39
- Switch box 39
- The front 39
- The height of obstacle is free 39
- The values represent the case for the r y 71 type through r y 140 type the dimensions in are for the r y 100 and r y 140 type the unit values is mm 39
- Through hole 39
- Total length 39
- Transmitting part 39
- Unit mm 39
- Vinyl cord with sheath or cable 39
- Wall mounted type receiver installation procedure fay71l 39
- When installing a unit choose the most suitable one from this manual depending on actual conditions such as walking passage and ventilation 39
- When the obstruction on the outlet side is higher than the unit itself there is no limit to the height of the obstruction on the outlet side 39
- When there are obstructions on both sides 39
- When there are obstructions on both the inlet and outlet sides 39
- When there are obstructions on the inlet side and both lateral sides 39
- When there is an obstruction on the inlet side 39
- When there is an obstruction on the outlet side 39
- When there is an obstruction only on the inlet side 39
Похожие устройства
- Daikin FHYB45FV1 Сервис мануал
- Candy CCDS 5142XH Инструкция по эксплуатации
- Daikin FHYB60FV1 Руководство по эксплуатации
- Daikin FHYB60FV1 Сервис мануал
- Daikin FHYB60FV1 Инструкция по эксплуатации
- Candy CCDS 5144WH Инструкция по эксплуатации
- Daikin FHYB71FVAL Руководство по эксплуатации
- Daikin FHYB71FVAL Сервис мануал
- Daikin FHYB71FVAL Инструкция по эксплуатации
- Daikin FHYB100FVAL Руководство по эксплуатации
- Daikin FHYB100FVAL Инструкция по эксплуатации
- Daikin FHYB100FVAL Сервис мануал
- Daikin FHYB125FVAL Руководство по эксплуатации
- Daikin FHYB125FVAL Инструкция по эксплуатации
- Daikin FHYB125FVAL Сервис мануал
- Candy CCDS 5144WH Инструкция по эксплуатации EN
- Candy CCDS 6172W Инструкция по эксплуатации
- Candy CCDS 6172W Инструкция по эксплуатации EN
- Candy CCDS 6172WH Инструкция по эксплуатации
- Candy CCDS 6172WH Инструкция по эксплуатации EN
