Korting OKB792PFX [34/38] Replacing of the oven bulb

lead to a dangerous failure. Wipe the inside cavity of the oven by using a damp cloth with a special product

for ovens, rinse and dry the oven carefully. When cleaning the lower part of the oven, it is recommended to

remove any residuals while the oven is still warm , but non hot.

For cleaning the external parts of the oven use a soft cloth and soapy water, rinse and dry carefully.

Wash the accessories in a dishwasher or in the sink, using an oven cleaner.

How to remove and reassemble the side racks

To remove the side rack (right or left rack), pull it gently away from holes A and B until it is unhinged from the

holes; repeat this process with holes C and D.

To reassemble the rack, do the following:

insert the rack in holes C and D simultaneously, then in hole B and finally in hole A.

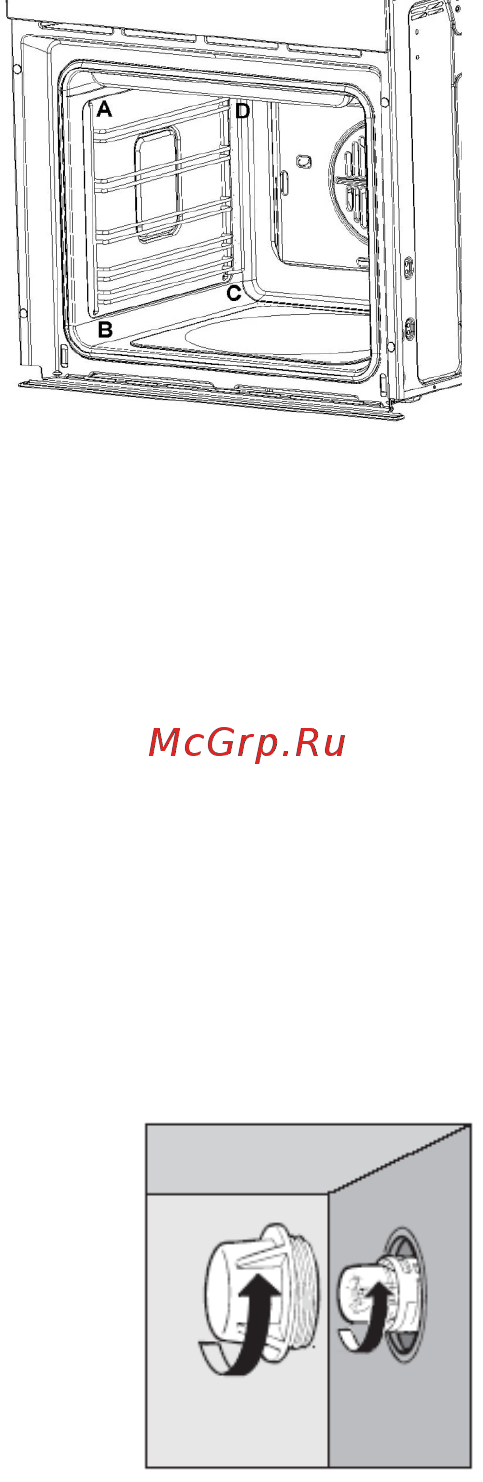

See figure 6 below.

Figure 6.

REPLACING OF THE OVEN BULB

The round bulb on the appliance has the following characteristics:

- Supply voltage: 220-240 V (50/60 Hz)

- Power: 25 W

- Base type: E-14

- Maximum operating temperature: 500°C

The lamp used in this appliance is a “special purpose lamp”, intended only for the usage with this appliance.

It cannot be used for any other purpose.

To replace the round bulb, make the following operations:

1. Important: Unplug the appliance from the electrical power supply.

2. Check that the oven is at room temperature, otherwise wait for it to cool down.

3. To replace the oven bulb B, remove the protective cover A by unscrewing it in an anti-clockwise direction.

4.Remove the bulb B by turning it in an anti-clockwise direction.

5. After having replaced the bulb, reassemble the protective cover A.

See figure 7 below.

Figure 7.

A B
