OVEN DOOR DISASSEMBLY

To help in cleaning, and make access to the oven cavity easier, the oven door can be easily removed.

It is possible to remove the door by operating on the hinges in the following way:

- The hinges, A, have two moving levers, B.

- If lever B is raised, the hinge comes out of its housing.

- In this case, the door can be lifted upwards and taken off by making it slide outwards; in order to carry out

this operation, take hold of the door at the sides near to the hinges.

- In order to reinstall the door, first, put the hinges back into their housing.

- Before closing the door, do not forget to re-position the two moving levers, B, that are used for fastening

the hinges.

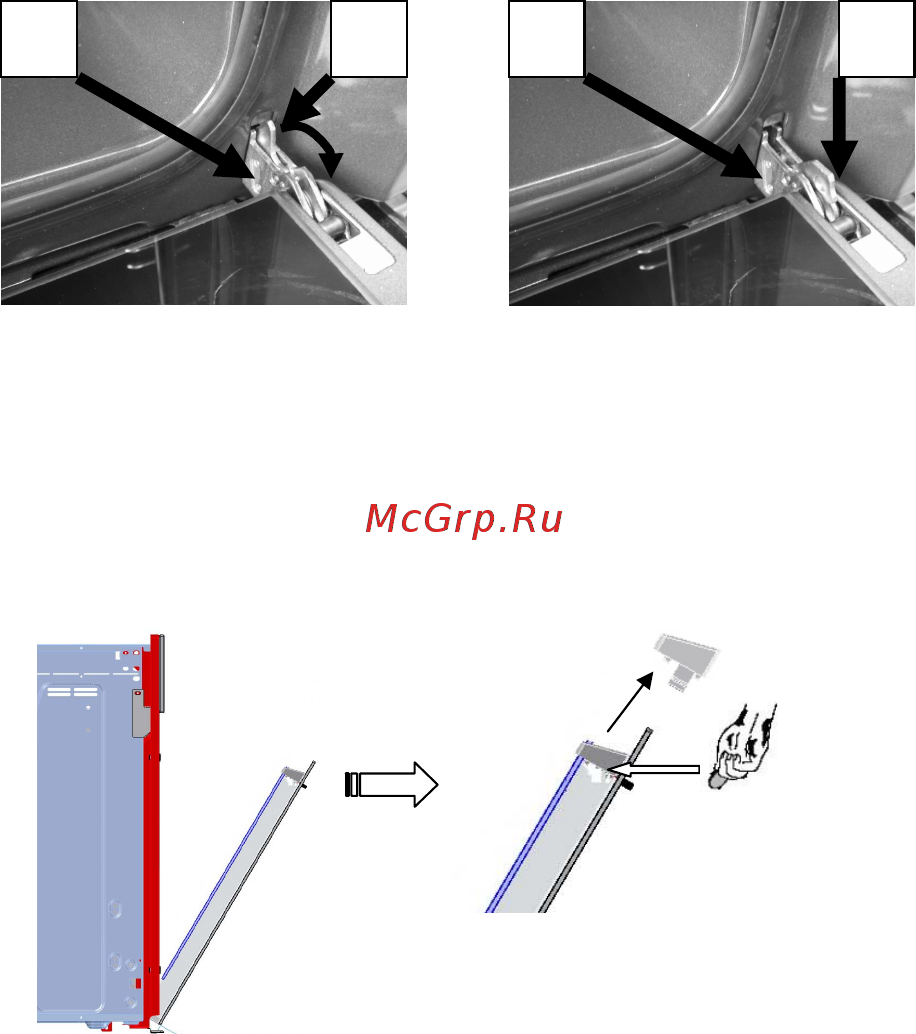

See figure 8 below.

Warning:

Be careful not to take off the hinge locking system when removing the door.

The hinge mechanism has a powerful spring system.

Never immerse the door in water.

Figure 8.

Removing the door with vertical frame.

The door can be disassembled to enable the glass to be cleaned, it is possible to take off the upper part by

using a coin, please see the figure 9.1 below.

Figure 9.1

B B
