Korting OKB9113CFX [27/44] Electrical connection

ELECTRICAL CONNECTION

Ovens equipped with tri-polar supply cables are constructed to function with alternating current, and with the

voltage and frequency indicated on the product plate.

Make sure the voltage matches the one indicated on the product plate.

Assembly of the power cable

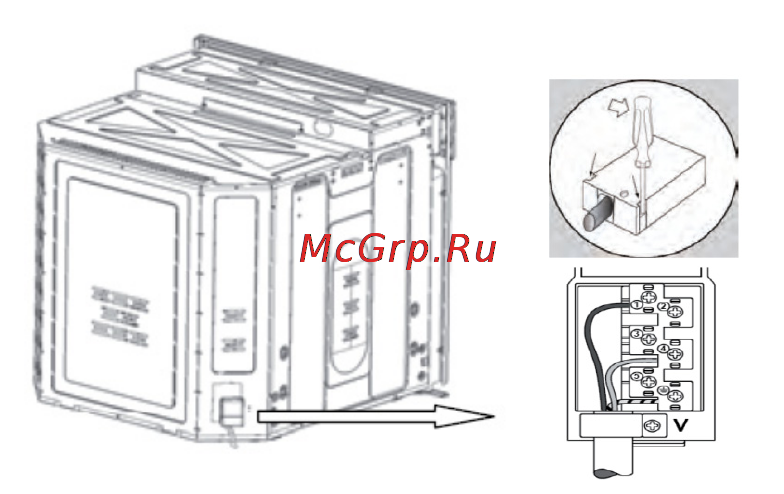

Figure 2.

1. Open the terminal board by placing a screwdriver under the side flaps on the cover, pull and then open the

cover (see figure 2).

2. Install the power supply cable, unscrew the screws on the cable grip and the three screws on contacts L-

N- ╧ and then attach the wires under the screw heads respecting the colours:

BLUE - NEUTRAL (N)

BROWN - LIVE (L)

YELLOW-GREEN - EARTH ( ╧ )

3. Attach the cable to the appropriate cable holder.

4. Close the terminal board cover.

Attention: earth connection is required by law.

Connecting the power supply cable to the mains

For direct connection to the mains supply, it is necessary to use a device that ensures that the mains power

is disconnected, with a distance between the contacts that allows complete disconnection in compliance with

surge category III and installation regulations.

Assemble a standard plug for the capacity indicated on the product plate.

The power supply cable must be positioned in such a way that it does not exceed the room temperature by

50°C at any point.

The installer is responsible for correct electricity connection and adherence to safety regulations.

Before connection to the mains supply, make sure that:

- the socket has a ground connection and it complies with legal regulations.

- the socket is able to withstand the oven’s maximum power capacity indicated on the product plate.

- the power supply voltage is within the values indicated on the product plate.

- the socket is compatible with the appliance plug. If they are not compatible, replace the socket or the plug.

- do not use extension cords or multiple sockets.

- once the appliance is installed, the electrical cable and the electrical power socket must be easily

reachable.

- the cable must not be compressed.

- the cable must be regularly checked and if necessary, replaced by authorized technicians only.
