REPLACING OF THE OVEN BULB

The round bulb on the appliance has the following characteristics:

- Supply voltage: 220-240 V (50/60 Hz)

- Power: 25 W

- Base type: E-14

- Maximum operating temperature: 300°C

The lamp used in this appliance is a “special purpose lamp”, intended only for the usage with this appliance.

It cannot be used for any other purpose.

To replace the round bulb, make the following operations:

1. Important: Unplug the appliance from the electrical power supply.

2. Check that the oven is at room temperature, otherwise wait for it to cool down.

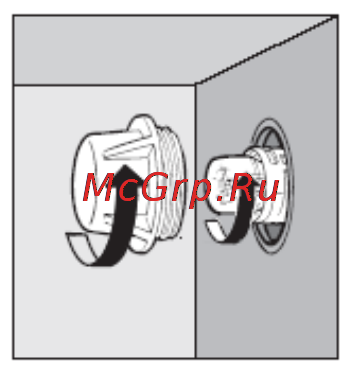

3. To replace the oven bulb B, remove the protective cover A by unscrewing it in an anti-clockwise direction.

4.Remove the bulb B by turning it in an anti-clockwise direction.

5. After having replaced the bulb, reassemble the protective cover A.

See figure 8 below.

Figure 8.

OVEN DOOR DISASSEMBLY

To help in cleaning, and make access to the oven cavity easier, the oven door can be easily removed.

It is possible to remove the door by operating on the hinges in the following way:

- The hinges, A, have two moving levers, B.

- If lever B is raised, the hinge comes out of its housing.

- In this case, the door can be lifted upwards and taken off by making it slide outwards; in order to carry out

this operation, take hold of the door at the sides near to the hinges.

- In order to reinstall the door, first, put the hinges back into their housing.

- Before closing the door, do not forget to re-position the two moving levers, B, that are used for fastening

the hinges.

See figure 9 below.

Warning:

Be careful not to take off the hinge locking system when removing the door.

The hinge mechanism has a powerful spring system.

Never immerse the door in water.

A B
