Connection to the gas supply

The gas connection must be made in accordance with the local standards.When

installing fit a safety tap at the end of the pipeline.The appliance leaves the factory

tested and set for the type of gas indicated on the plate inside the bottom guard, close

to the gas connection pipe.Make sure that the type of gas to be supplied to the

appliance is the same as that shown on the plate.

Otherwise, follow the instructions provided in the "Adapting

to different types of gas" section.

For maximum efficiency and minimum consumption,

make sure that the gas supply pressure complies with

the values shown in the table of "Burner characteristics".

If the pressure of the gas used is different from that

specified (or variable), a suitable pressure regulator must

be installed on the supply pipeline.

The union must be fitted on the end of the gas train,

complete with GJ 1/2" threaded nut, fitting the gasket

between the components as shown in the illustration.The

gaskets must comply with the local standards.Screw the

parts together without forcing, fit the union so that it points

in the direction required then tighten all parts.

Connection

Make the connection to the gas system using a rigid metal pipe and regulation unions,

or with a stainless steel hose complying with the local standardì .If metal hoses are

used, take care that they do not come into contact with mobile parts and are not

crushed.This must also be checked if the hob is to be combined with an oven.

The gas intake connection of the appliance has a 1/2" male thread.

When making the connection, take care not to apply stresses of any kind to the

appliance.

When the installation is complete, always check that all the unions are absolutely

tight using a soapy solution.Never use a flame to make this check.

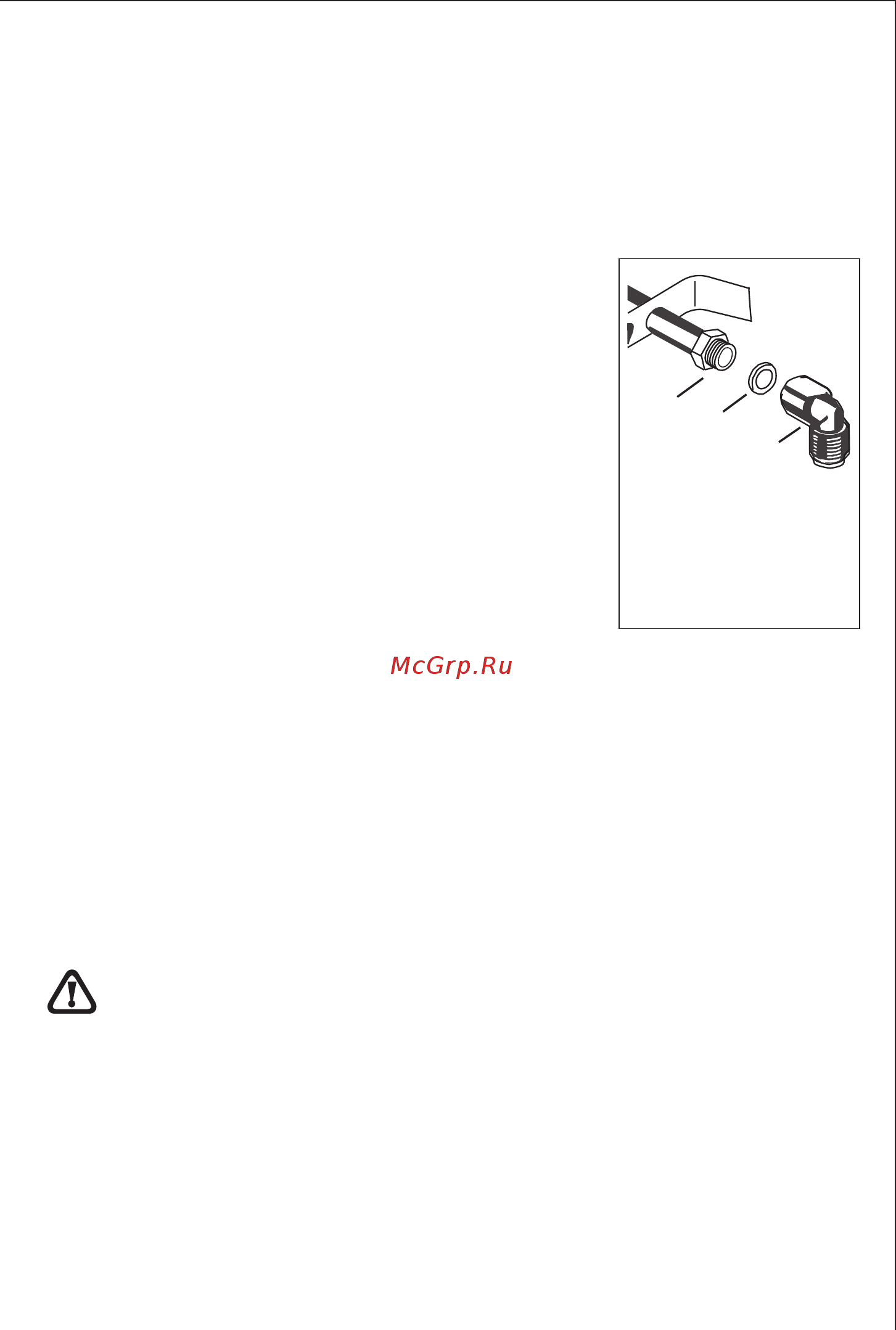

A) End of gas train with

nut

B) Gasket

C) Adjustable union
