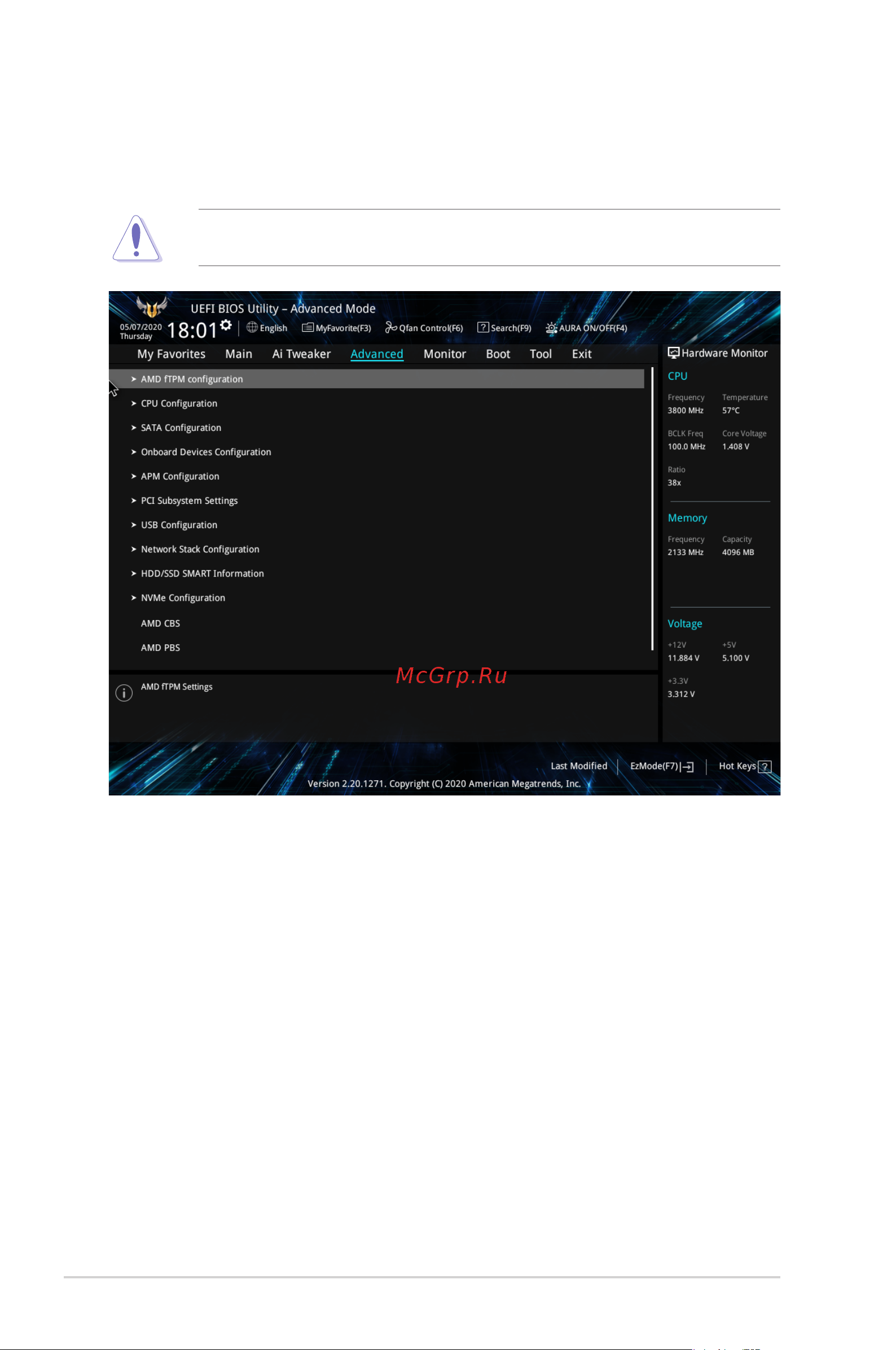

Asus PRIME B550M-K [24/52] Advanced menu
![Asus PRIME A520M-K [24/52] Advanced menu](/views2/1769219/page24/bg18.png)
24
PRIME/Pro/ProArt/TUF GAMING B550 / A520 Series BIOS Manual
1.6 Advanced menu
The Advanced menu items allow you to change the settings for the CPU and other system
devices.
Be cautious when changing the settings of the Advanced menu items. Incorrect eld values
can cause the system to malfunction.
