PRIME/Pro/ProArt/TUF GAMING B550 / A520 Series BIOS Manual
7
1.2.2 Advanced Mode

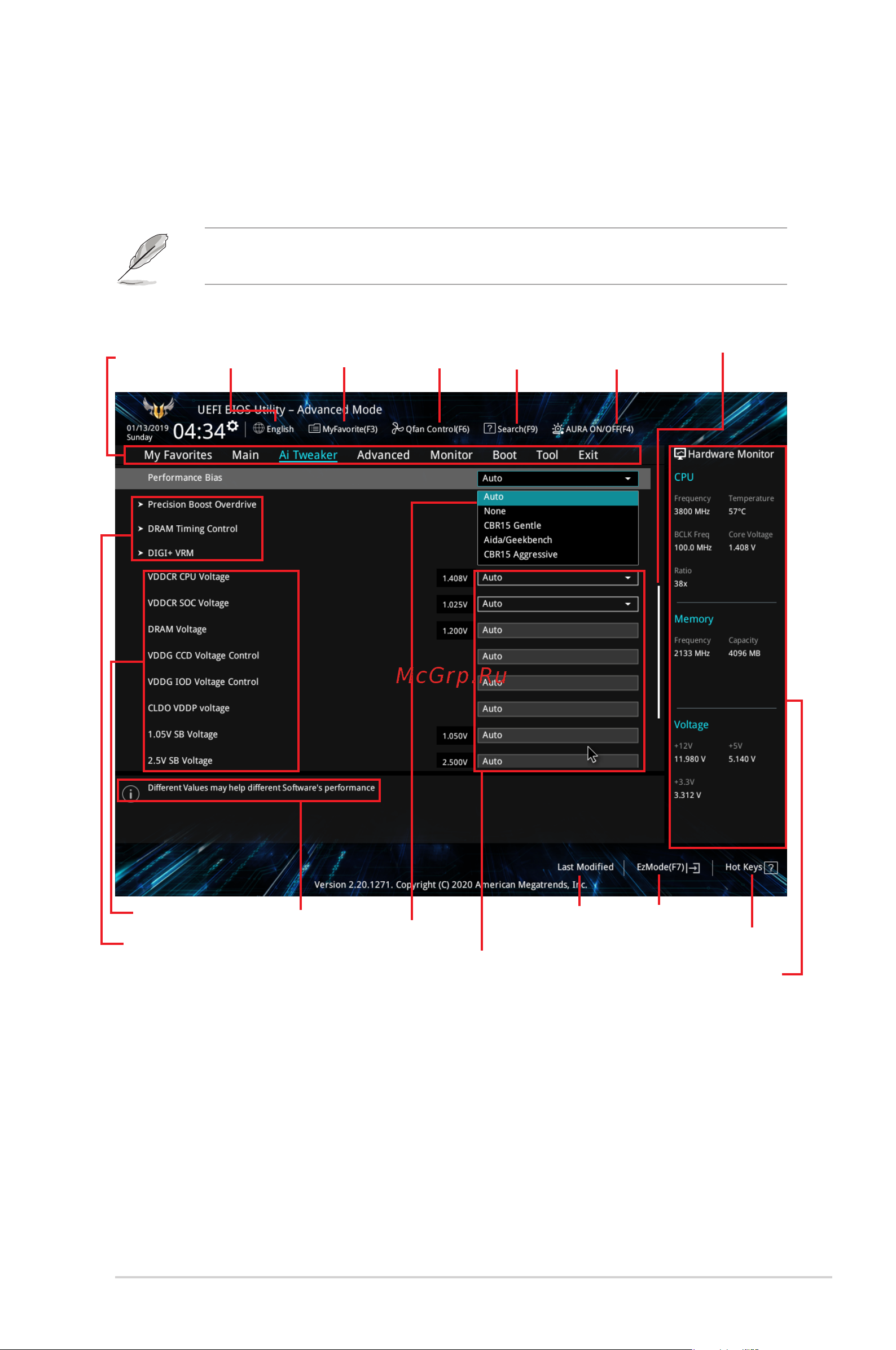

The Advanced Mode provides advanced options for experienced end-users to congure
the BIOS settings. The gure below shows an example of the Advanced Mode. Refer to the
following sections for the detailed congurations.
To switch from EZ Mode to Advanced Mode, click Advanced Mode(F7) or press the <F7>
hotkey.
Menu items
General help
Menu bar
Language
AURA ON/OFF
Qfan Control(F6)
MyFavorite(F3)
Scroll bar
Pop-up Menu
Conguration elds
Last modied
settings
Go back to EZ
Mode
Displays a quick overview
of the system status
submenu items
Search(F9)
