PRIME/Pro/ProArt/TUF GAMING B550 / A520 Series BIOS Manual
1.6.13 AMD Overclocking

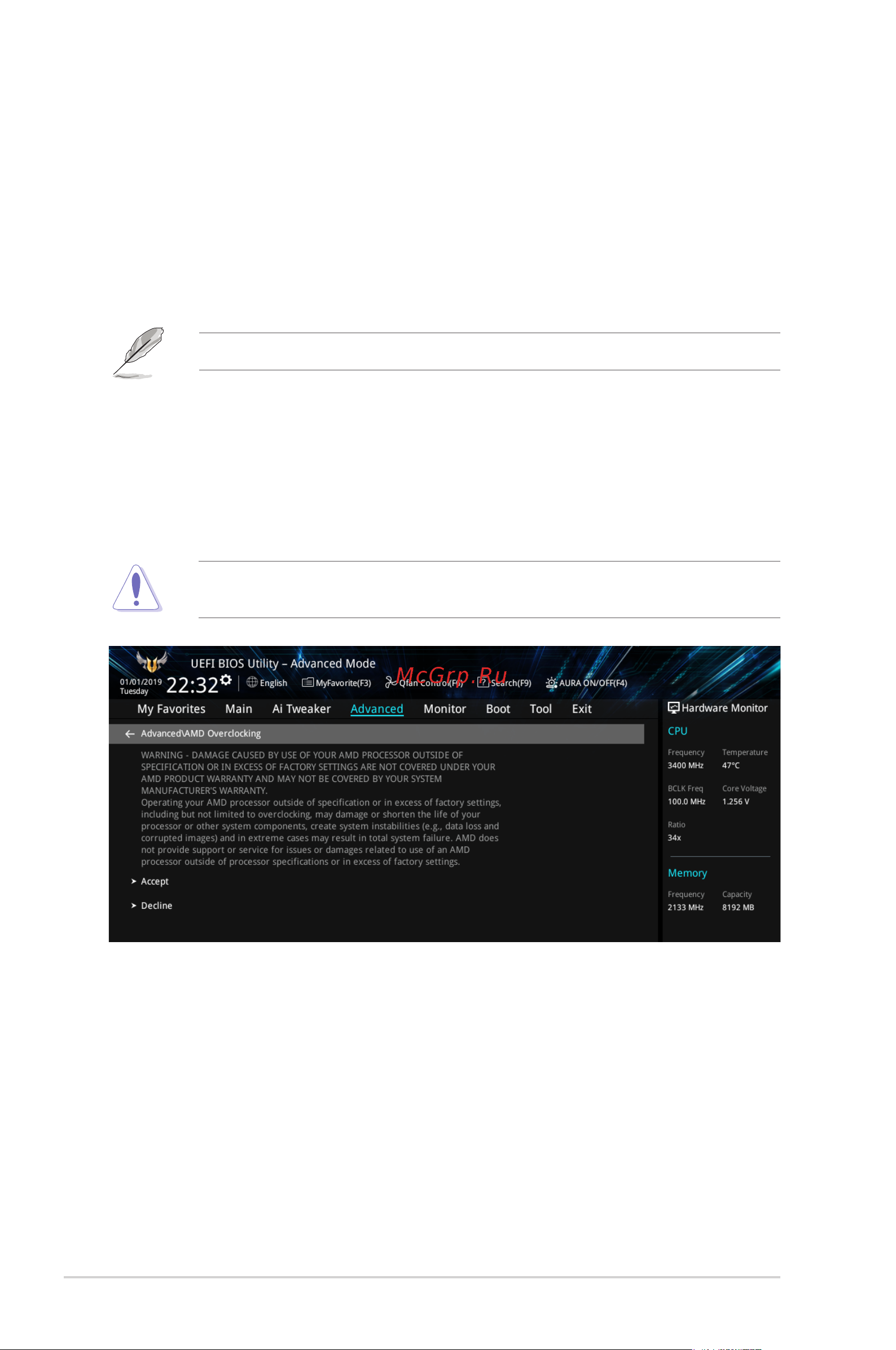

The items in this menu allows you to congure the AMD Overclocking setup page.
Damage caused by use of your AMD processor outside of specication or in excess of
factory settings are not covered by your system manufacturers warranty.
Legacy/Native/RTD3
This item allows you to select the Thunderbolt legacy/native/RTD3 mode.
Conguration options: [Legacy Mode] [Native Mode] [Native + RTD3Hot] [Native +
RTD3Cold]
Thunderbolt Wake Up Command
This item allows you to select the Thunderbolt wake-up command.
Conguration options: [Disabled] [GO2SX Command] [GO2SX_NO_WAKE Command]
The following item appears depending on the CPU model you installed on the motherboard.
Data Link Feature Exchange
This option allows you to enable or disable Data Link Feature Exchange. Try to disable it if
any Legacy Endpoint cannot boot. Conguration options: [Disabled] [Enabled]
