IOMMU
Conguration options: [Auto] [Disabled] [Enabled]
PCIe ARI Support
Conguration options: [Auto] [Disabled] [Enabled]
PCIe Ten Bit Tag Support
Conguration options: [Auto] [Disabled] [Enabled]

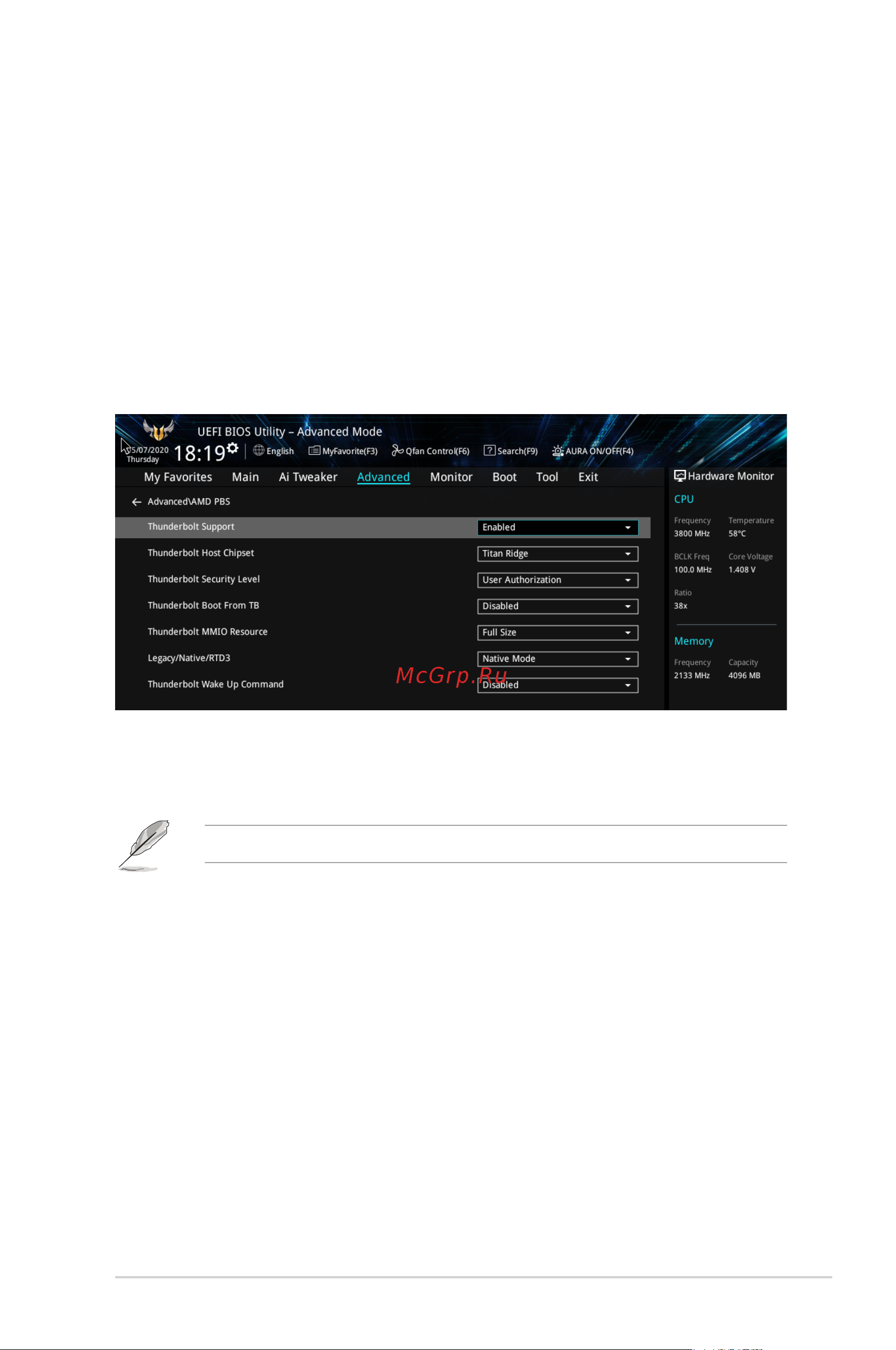

1.6.12 AMD PBS
The items in this menu shows the AMD PBS Setup Page.
Thunderbolt Support
This option allows you to enable or disable Thunderbolt support. Conguration options:
[Disabled] [Enabled]
The following items appear only when you set Thunderbolt Support to [Enabled].
Thunderbolt Host Chipset
This item allows you to select the name of Thunderbolt Host Card chipset.
Conguration options: [Alpine Ridge] [Titan Ridge]
Thunderbolt Security Level
This item allows you to select the security selection.
Conguration options: [No security] [User Authorization] [Secure Connect] [Display Port
and USB] [USB Docking Only]
Thunderbolt Boot from TB
This item allows you to enable or disable Thunderbolt (Boot On) command execution
before/after PCI Enumeration.
Conguration options: [Disabled] [Enabled]
Thunderbolt MMIO Resource
This item allows you to select the Thunderbolt PCIE MMIP Resource.
Conguration options: [Full Size] [Half Size] [Three Quarters]
