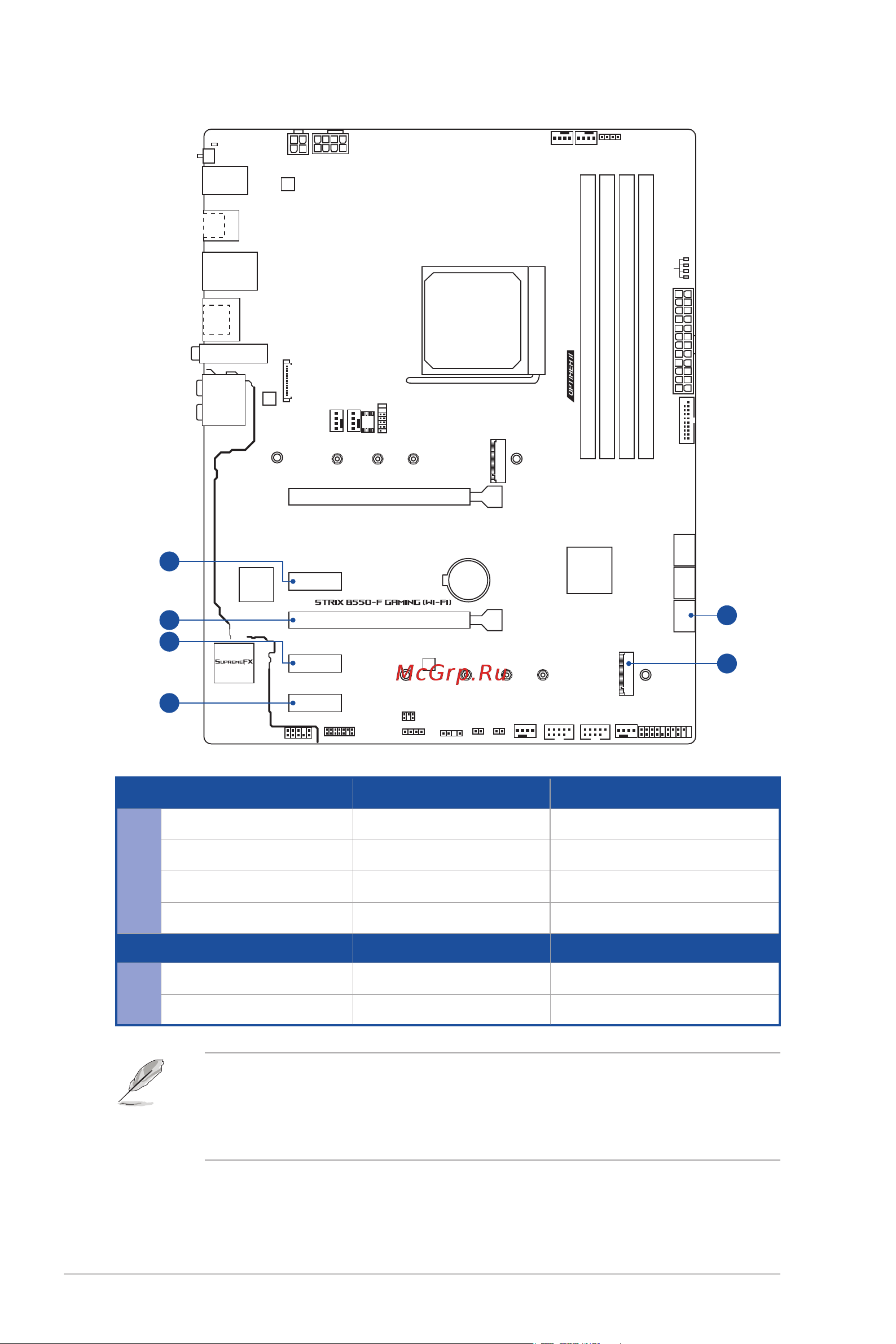

Connectors with shared bandwidth
DDR4 DIMM_B1 (64bit, 288-pin module)
DDR4 DIMM_B2* (64bit, 288-pin module)
DDR4 DIMM_A1 (64bit, 288-pin module)
DDR4 DIMM_A2* (64bit, 288-pin module)
DIGI+
VRM
AIO_PUMP
CHA_FAN3 CHA_FAN2
CHA_FAN1
LED1_CON
CPU_FAN CPU_OPT
BOOT
VGA
CPU
DRAM
M.2_1(SOCKET3)
RGB_HEADER2
COM_DEBUG
AURA
RGB_HEADER1
ADD_GEN 2
PANEL
AAFP
CLRTC
T_SENSOR
256Mb
BIOS
SATA6G_12SATA6G_34SATA6G_56
EATX12V_1EATX12V_2
EATXPWR
U32G1_12
Intel
®
I225V
BATTERY
HDMI
_DP
Super
I/O
PCIEX1_1
2280 2260 2242
M.2_2(SOCKET3)
2280
22110
22110
2260 2242
PCIEX1_2
PCIEX1_3
PCIEX16_2
PCIEX16_1
USB_E34 USB_E12
TB_HEADER
U2_56U32G1_78
AUDIO
LAN_U32G1_34
SOCKET AM4
FLBK_LED1
BIOS_FLBK
U32G2_C6
U32G2_5
M.2(WIFI)
AMD
B550
B
B
A
A
A
A
Configuration
1 2
A
PCIEX16_2 x4 x1
PCIEX1_1 - x1
PCIEX1_2 - x1
PCIEX1_3 - x1
Configuration 1 2
B
M.2_2 PCIe 3.0 x4 / SATA -
SATA6G_56 - v
• PCIEX16_2 shares bandwidth with PCIEX1_1, PCIEX1_2, and PCIEX1_3. When
PCIEX16_2 runs x4 mode, PCIEX1_1, PCIEX1_2, and PCIEX1_3 will be disabled.
PCIEX16_2 will run x1 mode when PCIEX1_1, PCIEX1_2, or PCIEX1_3 is occupied.
• When M.2_2 slot is populated, SATA6G_56 will be disabled.
