Asus ROG STRIX B550-F GAMING WI-FI [26/66] Chapter 1

1-14

Chapter 1: Product Introduction

Chapter 1

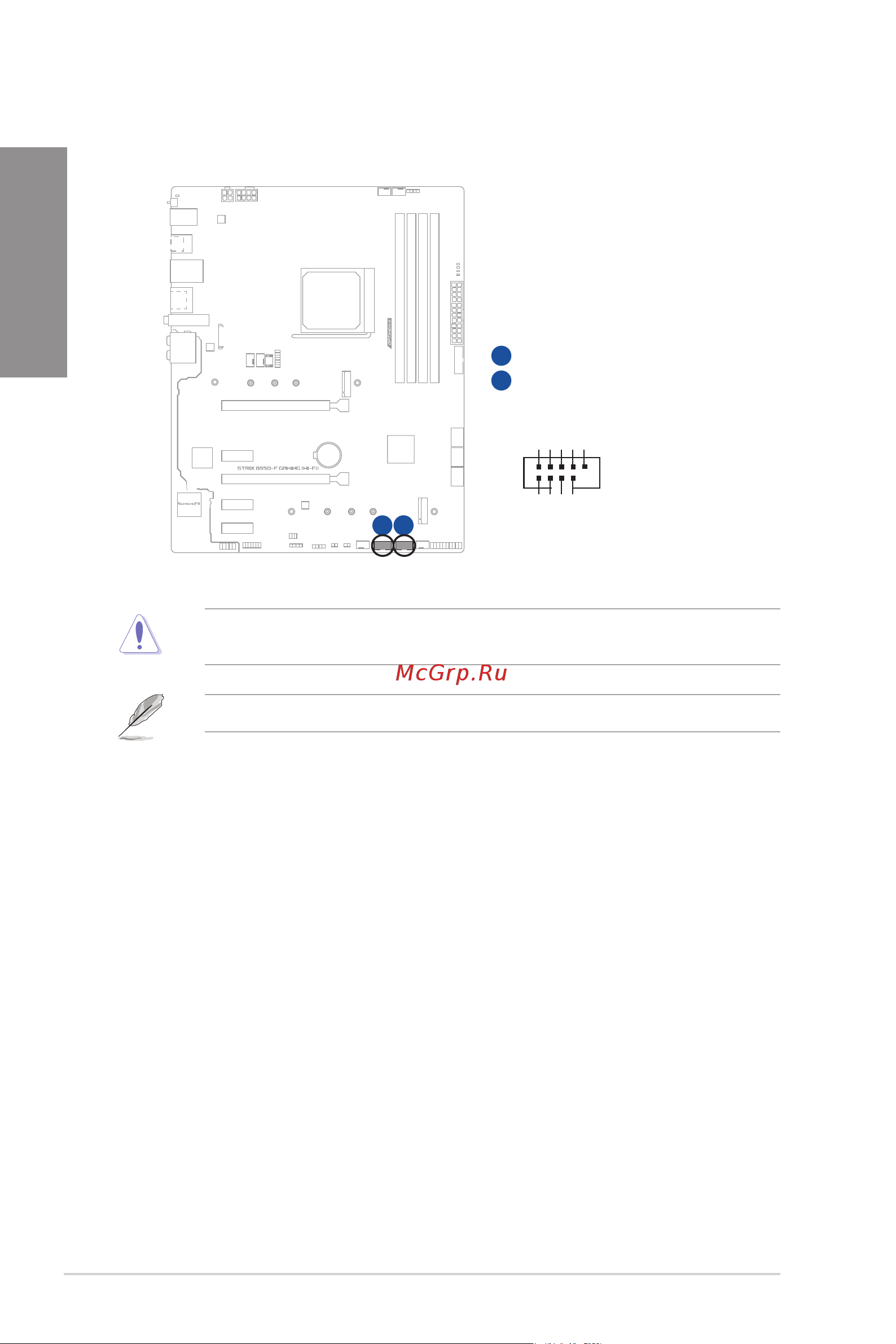

9. USB 2.0 headers

The USB 2.0 headers allow you to connect a USB module for additional USB 2.0

ports. The USB 2.0 headers provide data transfer speeds of up to 480 Mb/s.

USB_E34

USB_E12

USB+5V

USB_P1-

USB_P1+

GND

USB+5V

USB_P2-

USB_P2+

GND

PIN 1

DO NOT connect a 1394 cable to the USB connectors. Doing so will damage the

motherboard!

The USB 2.0 module is purchased separately.
