Asus ROG STRIX B360-G GAMING [35/76] Motherboard installation

ROG STRIX B360-G GAMING

2-5

Chapter 2

DO NOT overtighten the screws! Doing so can damage the motherboard.

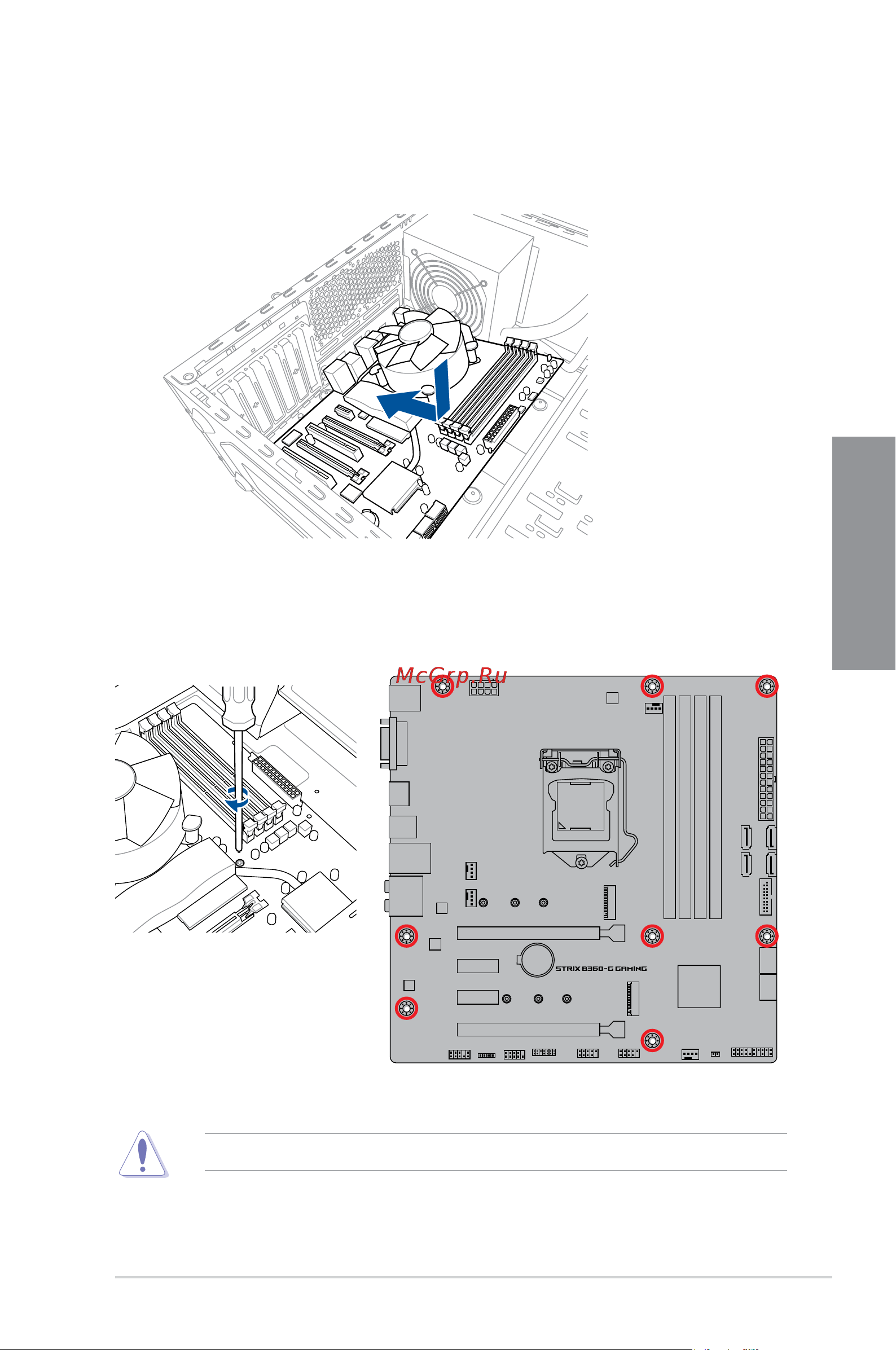

2. Place eight (8) screws into the holes indicated by circles to secure the motherboard to

the chassis.

1. Place the motherboard into the chassis, ensuring that its rear I/O ports are aligned to

the chassis’ rear I/O panel.

2.1.3 Motherboard installation
