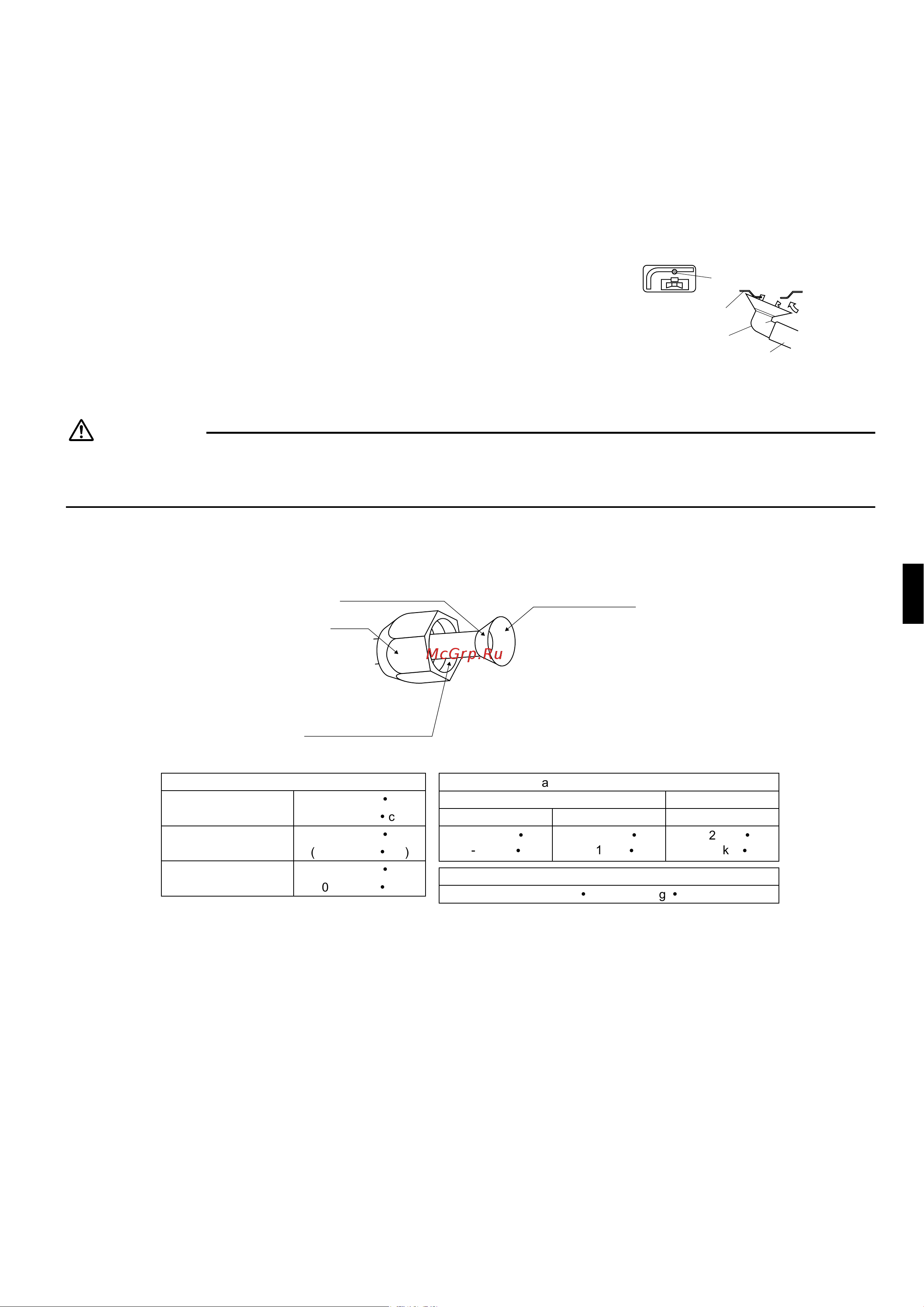

■English 6
Refrigerant Piping Work
1.
Installing outdoor unit
1) When installing the outdoor unit, refer to “Precautions for Selecting the Location” on page 2 and the “Indoor/Outdoor Unit
Installation Drawings” on page 3.
2) If drain work is necessary, follow the procedures below.
2.
Drain work (only heat pump models)
1) Use the drain plug for drainage.
2) If the drain port is covered by a mounting base or floor surface, place
additional foot bases of at least 30mm in height under the outdoor
unit’s feet.
3) In cold areas, do not use a drain hose with the outdoor unit.
(Otherwise, drain water may freeze, impairing heating performance.)
3.
Refrigerant piping
CAUTION
• Use the flare nut fixed to the main unit. (To prevent cracking of the flare nut by aged deterioration.)
• To prevent gas leakage, apply refrigeration oil only to the inner surface of the flare. (Use refrigeration oil for R410A.)
• Use torque wrenches when tightening the flare nuts to prevent damage to the flare nuts and gas leakage.
Align the centres of both flares and tighten the flare nuts 3 or 4 turns by hand. Then tighten them fully with the torque wrenches.
Drain-water hole
Bottom frame
Drain plug
Hose (available commercially,
inner dia. 16mm)
Do not apply refrigeration
oil to the outer surface.
Flare nut
Apply refrigeration oil to
the inner surface of the
flare.
Do not apply refrigeration oil to
the flare nut to avoid tightening
with excessive torque.
[Apply oil]
Flare nut tightening torque
Flare nut for φ6.4
14.2-17.2N
l
m
(144-175kgf
l
cm)
Flare nut for φ9.5
32.7-39.9N
l
m
(333-407kgf
l
cm)
Flare nut for φ12.7
49.5-60.3N
l
m
(505-615kgf
l
cm)
Valve cap tightening torque
Liquid side
3/8 inch 1/4 inch
21.6-27.4N
l
m
(220-280kgf
l
cm)
Gas side
1/2 inch
48.1-59.7N
l
m
(490-610kgf
l
cm)
21.6-27.4N
l
m
(220-280kgf
l
cm)
Service port cap tightening torque
10.8-14.7N
l
m (110-150kgf
l
cm)
01_EN_3P210724-1F.fm Page 6 Tuesday, October 30, 2012 10:39 AM
